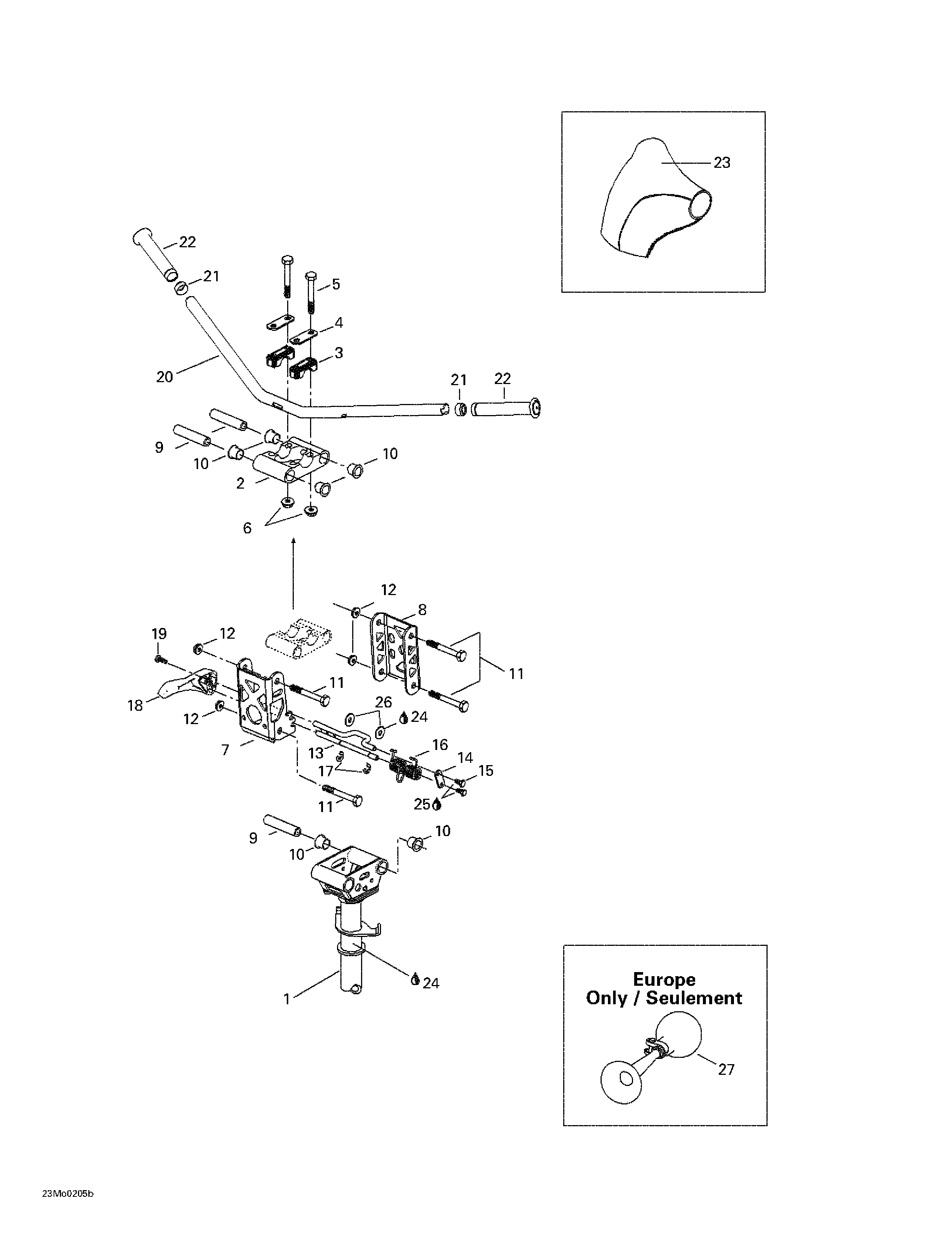

07- Handlebar - Adjustable (SE) для BRP Ski-Doo Grand Touring 500/600/700/800 - 2002
-
№АртикулНазвание
-
1506151429 Main Tube. Grand Touring 600. Grand Touring 800.Main Tube. Grand Touring 600. Grand Touring 800.
-
2506151147 Mach. Clamp. Grand Touring 600. Grand Touring 800.Mach. Clamp. Grand Touring 600. Grand Touring 800.
-
3414491600 Steering Support. Grand Touring 600. Grand Touring 800.Steering Support. Grand Touring 600. Grand Touring 800.
-
4506151196 Reinforcement. Grand Touring 600. Grand Touring 800.Reinforcement. Grand Touring 600. Grand Touring 800.
-
5207086044 Hex. Screw M8 x 60. Grand Touring 600. Grand Touring 800.Hex. Screw M8 x 60. Grand Touring 600. Grand Touring 800.
-
6233281414 Elastic Stop Nut M8. Grand Touring 600. Grand Touring 800.Elastic Stop Nut M8. Grand Touring 600. Grand Touring 800.
-
7506151156 Front Arm. Grand Touring 600. Grand Touring 800.Front Arm. Grand Touring 600. Grand Touring 800.
-
8506151152 Rear Arm. Grand Touring 600. Grand Touring 800.Rear Arm. Grand Touring 600. Grand Touring 800.
-
9506151146 Spacer. Grand Touring 600. Grand Touring 800.Spacer. Grand Touring 600. Grand Touring 800.
-
10506151153 Cushion. Grand Touring 600. Grand Touring 800.Cushion. Grand Touring 600. Grand Touring 800.
-
11207688044 Hex. Flanged Screw M8 x 80. Grand Touring 600. Grand Touring 800.Hex. Flanged Screw M8 x 80. Grand Touring 600. Grand Touring 800.
-
12233281414 Elastic Flanged Nut M8. Grand Touring 600. Grand Touring 800.Elastic Flanged Nut M8. Grand Touring 600. Grand Touring 800.
-
13506151162 Lock. Grand Touring 600. Grand Touring 800.Lock. Grand Touring 600. Grand Touring 800.
-
14506151240 Plate. Grand Touring 600. Grand Touring 800.Plate. Grand Touring 600. Grand Touring 800.
-
15207141044 Hex. Screw M4 x 10. Grand Touring 600. Grand Touring 800.Hex. Screw M4 x 10. Grand Touring 600. Grand Touring 800.
-
16506151219 Spring. Grand Touring 600. Grand Touring 800.Spring. Grand Touring 600. Grand Touring 800.
-
17414274500 Circlip. Grand Touring 600. Grand Touring 800.Circlip. Grand Touring 600. Grand Touring 800.
-
18506151188 Handle. Grand Touring 600. Grand Touring 800.Handle. Grand Touring 600. Grand Touring 800.
-
19205041284 Socket Head Screw M4 x 12. Grand Touring 600. Grand Touring 800.Socket Head Screw M4 x 12. Grand Touring 600. Grand Touring 800.
-
20506151440 Handlebar. Grand Touring 600. Grand Touring 800.Handlebar. Grand Touring 600. Grand Touring 800.
-
21572081900 Handlebar End. Grand Touring 600. Grand Touring 800.Handlebar End. Grand Touring 600. Grand Touring 800.
-
22572100500 Handle Grip. Grand Touring 600. Grand Touring 800.Handle Grip. Grand Touring 600. Grand Touring 800.
-
23506151444 Steering Padding. Grand Touring 600. Grand Touring 800.Steering Padding. Grand Touring 600. Grand Touring 800.
-
24219700417 Synthetic Grease, 400g. Grand Touring 600. Grand Touring 800.Synthetic Grease, 400g. Grand Touring 600. Grand Touring 800.
-
25293800060 Loctite 243, 10 ml. Grand Touring 600. Grand Touring 800.Loctite 243, 10 ml. Grand Touring 600. Grand Touring 800.
-
26517302265 Washer. Grand Touring 600. Grand Touring 800.Washer. Grand Touring 600. Grand Touring 800.
-
27415040700 Horn. Grand Touring 600. Grand Touring 800.Horn. Grand Touring 600. Grand Touring 800.
