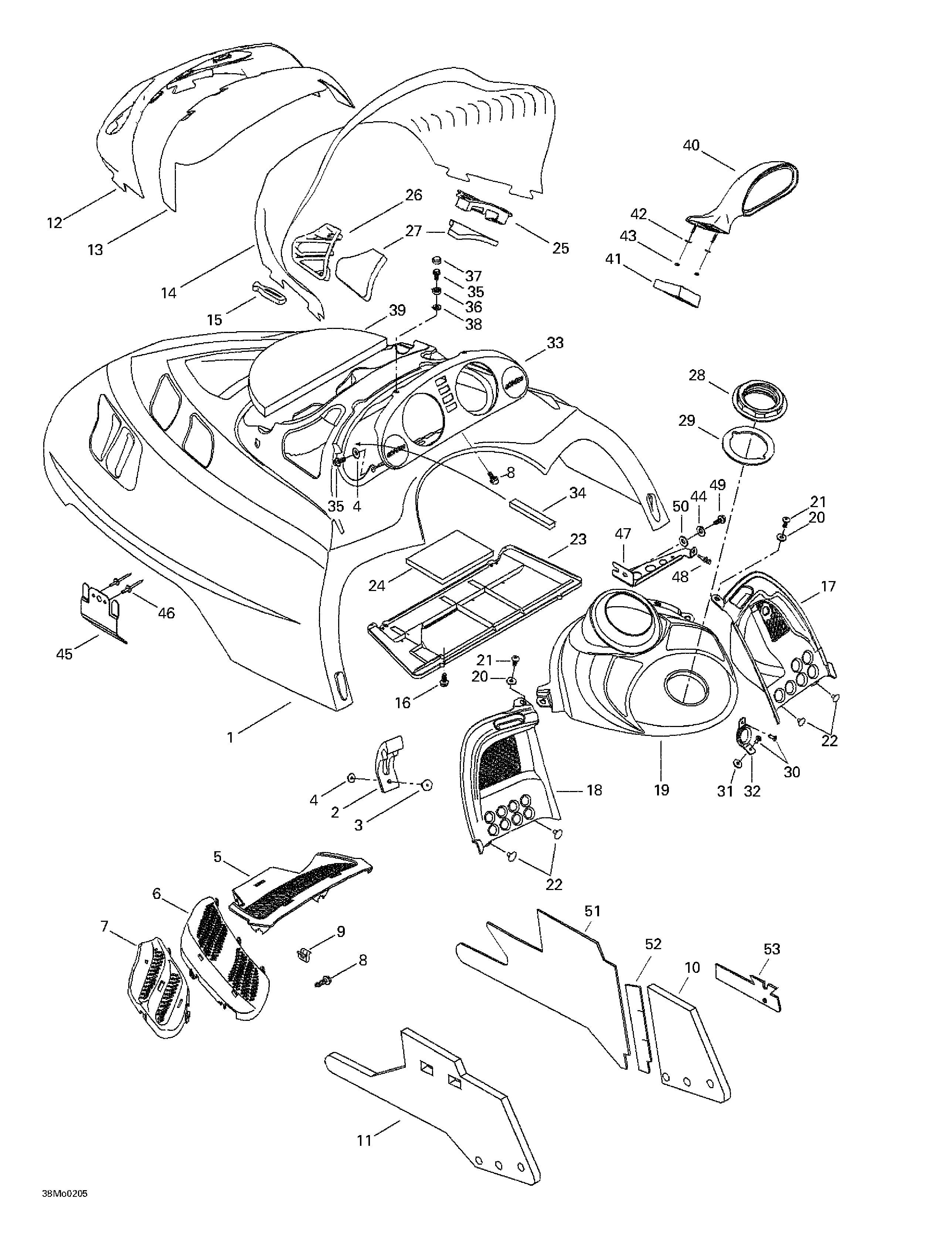

09- Cab, Console для BRP Ski-Doo Grand Touring 500/600/700/800 - 2002
-
№АртикулНазвание
-
1517302588 Hood (Full Moon) B-211. Grand Touring 500. Grand Touring 600. Grand Touring 700.Hood (Full Moon) B-211. Grand Touring 500. Grand Touring 600. Grand Touring 700.
-
517302683 Hood (Olympic) B-190/ B-228. (Yellow - Orange) Grand Touring 700.Hood (Olympic) B-190/ B-228. (Yellow - Orange) Grand Touring 700.
-
517302527 Hood (Black) B-160Hood (Black) B-160
-
2570027100 Hood LatchHood Latch
-
3390907700 Pop Rivet 3/16Pop Rivet 3/16
-
4517124300 WasherWasher
-
5517302026 Center Grill (Black)Center Grill (Black)
-
6517302028 R.H. Intermediate Grill (Black). Grand Touring 500.R.H. Intermediate Grill (Black). Grand Touring 500.
-
517302671 R.H. Intermediate Grill (Black). Grand Touring 600. Grand Touring 700. Grand Touring 800.R.H. Intermediate Grill (Black). Grand Touring 600. Grand Touring 700. Grand Touring 800.
-
517302031 L.H. Intermediate Grill (Black). Grand Touring 500.L.H. Intermediate Grill (Black). Grand Touring 500.
-
517302672 L.H. Intermediate Grill (Black). Grand Touring 600. Grand Touring 700. Grand Touring 800.L.H. Intermediate Grill (Black). Grand Touring 600. Grand Touring 700. Grand Touring 800.
-
7517302034 R.H. Side Grill (Black)R.H. Side Grill (Black)
-
517302036 L.H. Side Grill (Black)L.H. Side Grill (Black)
-
8732601210 Hex. Tapping ScrewHex. Tapping Screw
-
9517302183 ClipClip
-
10517302675 R.H. Side FoamR.H. Side Foam
-
11517302630 L.H. Side FoamL.H. Side Foam
-
12517302158 Headlamp MouldingHeadlamp Moulding
-
517302648 Headlamp Moulding (Olympic). Grand Touring 700.Headlamp Moulding (Olympic). Grand Touring 700.
-
13517302003 Windshield SupportWindshield Support
-
14517302560 High WindshieldHigh Windshield
-
15570023800 Windshield LatchWindshield Latch
-
16243141640 Hex. Screw M4 x 16Hex. Screw M4 x 16
-
17517302005 R.H. ConsoleR.H. Console
-
18517302006 L.H. ConsoleL.H. Console
-
19517302613 Center Console (STD). Grand Touring 500. Grand Touring 600. Grand Touring 700.Center Console (STD). Grand Touring 500. Grand Touring 600. Grand Touring 700.
-
517302632 Center Console (SE). Grand Touring 600. Grand Touring 800.Center Console (SE). Grand Touring 600. Grand Touring 800.
-
517302634 Center Console (GS). Grand Touring 600. Grand Touring 700.Center Console (GS). Grand Touring 600. Grand Touring 700.
-
20391301600 Flat WasherFlat Washer
-
21732600030 ScrewScrew
-
22390406500 Pop Rivet 3/16Pop Rivet 3/16
-
23517302578 Air Intake PlateAir Intake Plate
-
24517302425 Secondary FoamSecondary Foam
-
25517302024 R.H. Air Intake GrillR.H. Air Intake Grill
-
26517302025 L.H. Air Intake GrillL.H. Air Intake Grill
-
27517302151 Air Intake FoamAir Intake Foam
-
28517302043 Console NutConsole Nut
-
29293250029 GasketGasket
-
30390409400 Pop Rivet 5/32Pop Rivet 5/32
-
31517302286 Rubber StopperRubber Stopper
-
32517302129 Rope GuideRope Guide
-
33572098604 Indicator Support (STD). Grand Touring 500. Grand Touring 600. Grand Touring 700.Indicator Support (STD). Grand Touring 500. Grand Touring 600. Grand Touring 700.
-
572098600 Indicator Support (GS). Grand Touring 600. Grand Touring 700.Indicator Support (GS). Grand Touring 600. Grand Touring 700.
-
517302591 Indicator Support (SE). Grand Touring 600. Grand Touring 800.Indicator Support (SE). Grand Touring 600. Grand Touring 800.
-
34517302420 Foam (STD). Grand Touring 500. Grand Touring 600. Grand Touring 700.Foam (STD). Grand Touring 500. Grand Touring 600. Grand Touring 700.
-
35241140060 Flanged Screw K40 x 10Flanged Screw K40 x 10
-
36414436800 Retainer CapRetainer Cap
-
37414436900 Snap Cap (Black)Snap Cap (Black)
-
38234042600 Flat WasherFlat Washer
-
39517302317 Center Foam (Can./US Only)Center Foam (Can./US Only)
-
40517302679 R.H. MirrorR.H. Mirror
-
517302681 L.H. MirrorL.H. Mirror
-
41517302539 Retainer PlateRetainer Plate
-
42517124300 WasherWasher
-
43232541414 Elastic Stop Nut M4Elastic Stop Nut M4
-
44234161471 Lock WasherLock Washer
-
45517302615 Hood GuideHood Guide
-
46390910000 Pop Rivet 3/16Pop Rivet 3/16
-
47517302621 R.H. ConsoleR.H. Console
-
48517302624 Rubber StopperRubber Stopper
-
49210261280 Hex. Screw M6 x 12Hex. Screw M6 x 12
-
50234610410 Flat WasherFlat Washer
-
51514053428 Reflective SheetReflective Sheet
-
52514053450 Reflective SheetReflective Sheet
-
53514053391 Reflective SheetReflective Sheet
