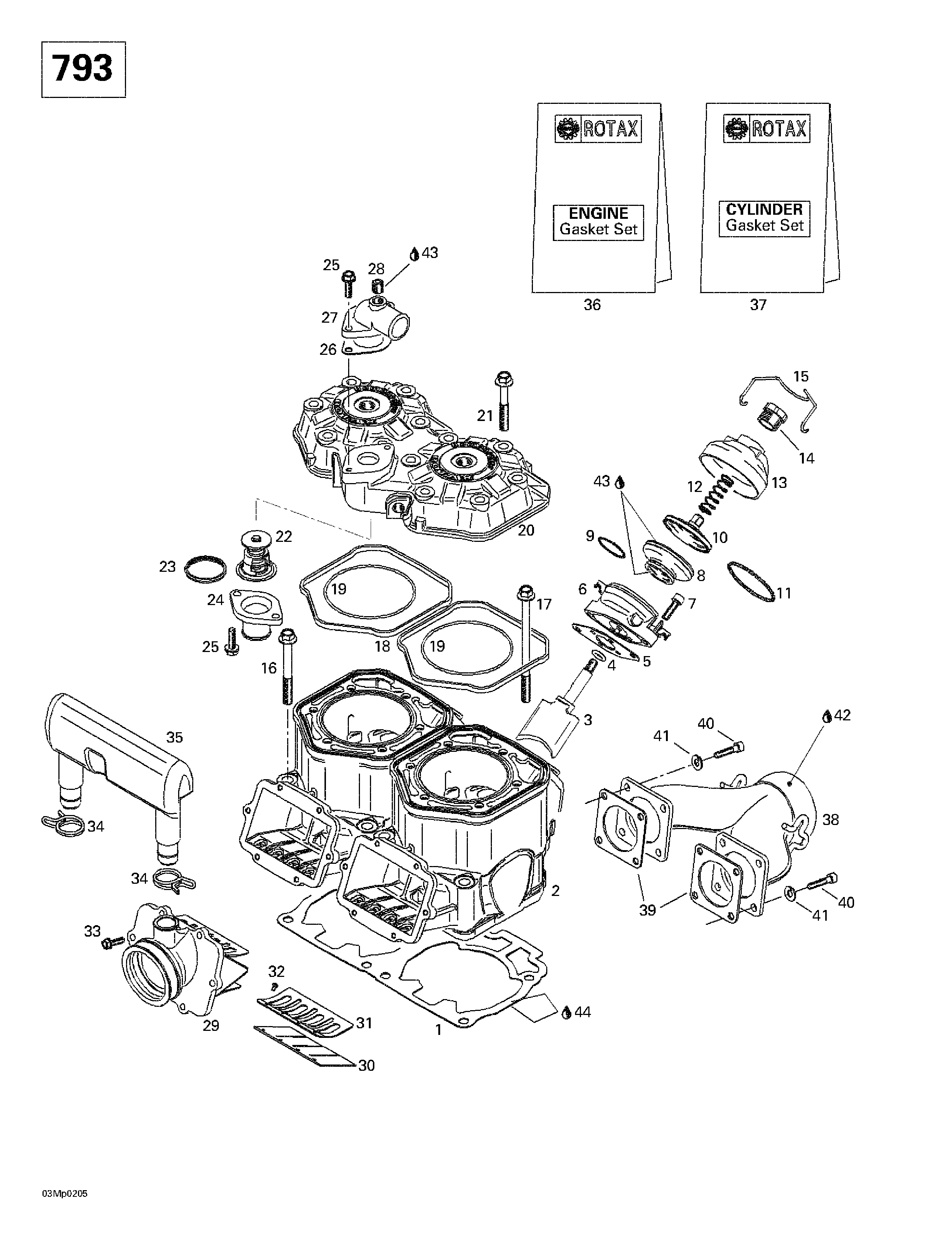

01- Cylinder, Exhaust Manifold, Reed Valve (793) для BRP Ski-Doo Grand Touring 500/600/700/800 - 2002
-
№АртикулНазвание
-
1420931839 Gasket 0.8 mm. Grand Touring 800.Gasket 0.8 mm. Grand Touring 800.
-
420931964 Gasket 0.7 mm. Grand Touring 800.Gasket 0.7 mm. Grand Touring 800.
-
420931837 Gasket 0.6 mm. Grand Touring 800.Gasket 0.6 mm. Grand Touring 800.
-
420931838 Gasket 0.5 mm. Grand Touring 800.Gasket 0.5 mm. Grand Touring 800.
-
2420923815 Nicasil Cylinder. Grand Touring 800.Nicasil Cylinder. Grand Touring 800.
-
3420854465 Exhaust Valve. Grand Touring 800.Exhaust Valve. Grand Touring 800.
-
4420430110 O-Ring. Grand Touring 800.O-Ring. Grand Touring 800.
-
5420931542 Gasket. Grand Touring 800.Gasket. Grand Touring 800.
-
6420854450 Valve Housing. Grand Touring 800.Valve Housing. Grand Touring 800.
-
7205062544 Socket Head Screw M6 x 25. Grand Touring 800.Socket Head Screw M6 x 25. Grand Touring 800.
-
8420260729 Bellows. Grand Touring 800.Bellows. Grand Touring 800.
-
9420838253 Spring Clamp. Grand Touring 800.Spring Clamp. Grand Touring 800.
-
10420854449 Exhaust Valve. Grand Touring 800.Exhaust Valve. Grand Touring 800.
-
11290239048 Hose Spring. Grand Touring 800.Hose Spring. Grand Touring 800.
-
12420239941 Spring. Grand Touring 800.Spring. Grand Touring 800.
-
13290911555 Valve Cover. Grand Touring 800.Valve Cover. Grand Touring 800.
-
14420241221 Adjuster Screw. Grand Touring 800.Adjuster Screw. Grand Touring 800.
-
15290838083 Spring Clip. Grand Touring 800.Spring Clip. Grand Touring 800.
-
16420640524 Hex. Collar Screw M10 x 80. Grand Touring 800.Hex. Collar Screw M10 x 80. Grand Touring 800.
-
17420640534 Hex. Collar Screw M10 x 120. Grand Touring 800.Hex. Collar Screw M10 x 120. Grand Touring 800.
-
18420931590 Rubber Ring. Grand Touring 800.Rubber Ring. Grand Touring 800.
-
19290931410 O-Ring. Grand Touring 800.O-Ring. Grand Touring 800.
-
20420923822 Cylinder Head (Silver). Grand Touring 800.Cylinder Head (Silver). Grand Touring 800.
-
21420941621 Hex. Collar Screw M8 x 56.5. Grand Touring 800.Hex. Collar Screw M8 x 56.5. Grand Touring 800.
-
22420922516 Thermostat (42 Deg.). Grand Touring 800.Thermostat (42 Deg.). Grand Touring 800.
-
23420931270 Sealing Ring. Grand Touring 800.Sealing Ring. Grand Touring 800.
-
24420922025 Outlet Socket. Grand Touring 800.Outlet Socket. Grand Touring 800.
-
25420941250 Screw M6 x 20. Grand Touring 800.Screw M6 x 20. Grand Touring 800.
-
26420850338 Gasket. Grand Touring 800.Gasket. Grand Touring 800.
-
27420922062 Bent Outlet Socket. Grand Touring 800.Bent Outlet Socket. Grand Touring 800.
-
28420240480 Plug Screw 1/8-27 NPT. Grand Touring 800.Plug Screw 1/8-27 NPT. Grand Touring 800.
-
29420867873 Intake Socket Ass'y. Includes 29 - 32. Grand Touring 800.Intake Socket Ass'y. Includes 29 - 32. Grand Touring 800.
-
30420924680 Reed Pedal. Grand Touring 800.Reed Pedal. Grand Touring 800.
-
31420924695 Reed Pedal Stop. Grand Touring 800.Reed Pedal Stop. Grand Touring 800.
-
32420941215 Screw M3 x 5. Grand Touring 800.Screw M3 x 5. Grand Touring 800.
-
33420941925 Screw M5 x 16. Grand Touring 800.Screw M5 x 16. Grand Touring 800.
-
34420851440 Clamp. Grand Touring 800.Clamp. Grand Touring 800.
-
35420867817 Intake Resonator. Grand Touring 800.Intake Resonator. Grand Touring 800.
-
36420888740 Engine Gasket Set. Grand Touring 800.Engine Gasket Set. Grand Touring 800.
-
37420888745 Cylinder Gasket Set. Grand Touring 800.Cylinder Gasket Set. Grand Touring 800.
-
38420973710 Exhaust Manifold. Grand Touring 800.Exhaust Manifold. Grand Touring 800.
-
39420931850 Gasket. Grand Touring 800.Gasket. Grand Touring 800.
-
40205062044 Socket Head Screw M6 x 20. Grand Touring 800.Socket Head Screw M6 x 20. Grand Touring 800.
-
41234161471 Lock Washer 6 mm. Grand Touring 800.Lock Washer 6 mm. Grand Touring 800.
-
42293800090 Sealant, Loctite 30542, 80 ml. Grand Touring 800.Sealant, Loctite 30542, 80 ml. Grand Touring 800.
-
43420297906 Sealing Compound, 30 ml. Grand Touring 800.Sealing Compound, 30 ml. Grand Touring 800.
-
44293800038 Loctite 518, 50 ml. Grand Touring 800.Loctite 518, 50 ml. Grand Touring 800.
