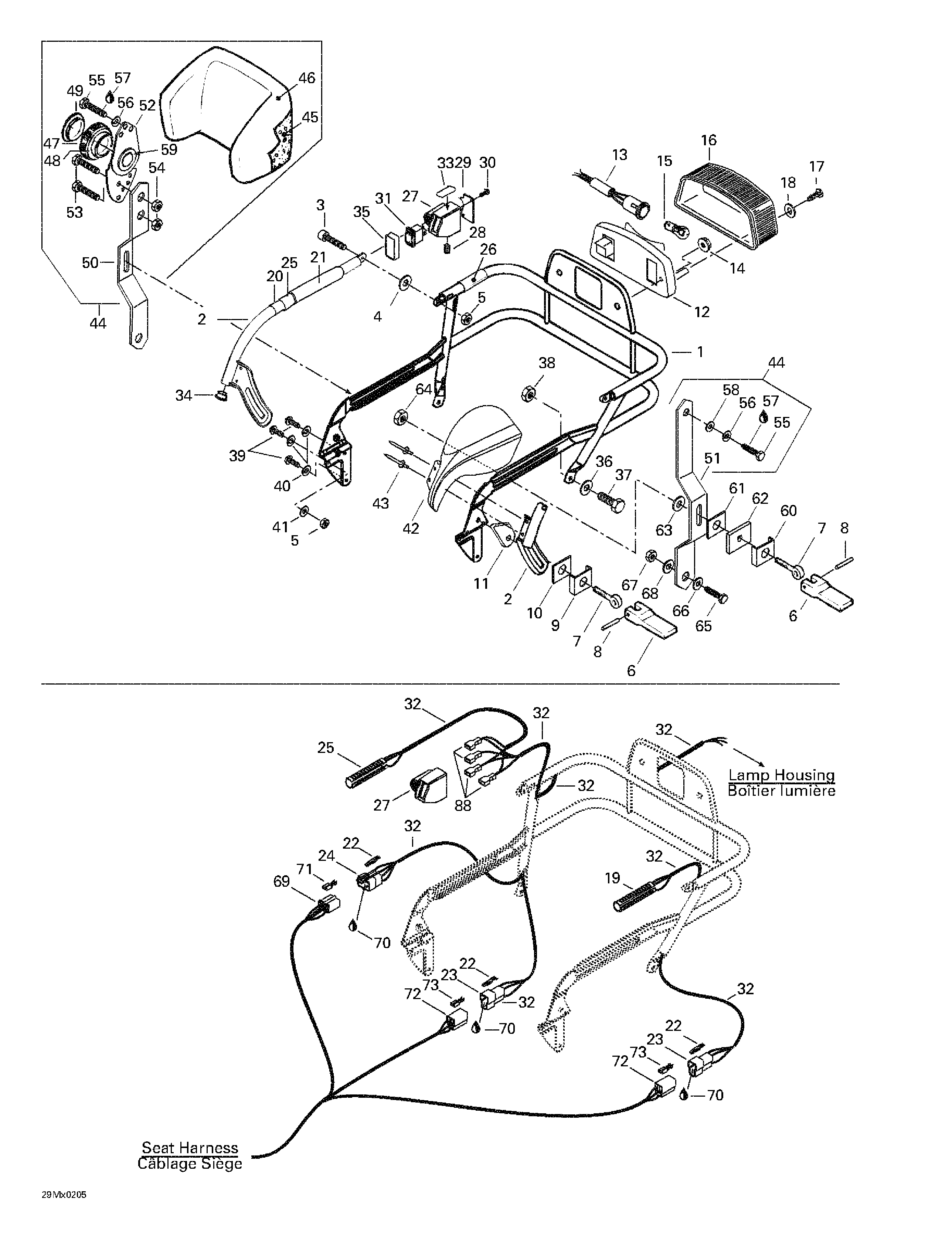

09- Luggage Rack для BRP Ski-Doo Grand Touring 500/600/700/800 - 2002
-
№АртикулНазвание
-
1511000124 Rack Ass'yRack Ass'y
-
2511000012 R.H. Arm (Rack)R.H. Arm (Rack)
-
517300900 L.H. Arm (Rack)L.H. Arm (Rack)
-
3205061644 Socket Head Screw M6 x 16Socket Head Screw M6 x 16
-
4234062100 Flat Washer 6 mmFlat Washer 6 mm
-
5232561414 Elastic Stop Nut M6Elastic Stop Nut M6
-
6572038200 Lock LeverLock Lever
-
7517257600 Eye BoltEye Bolt
-
8414821400 PinPin
-
9517290000 GuideGuide
-
10570063800 Outer SpacerOuter Spacer
-
11572088900 Spacer BlockSpacer Block
-
12515175397 Lamp HousingLamp Housing
-
13511000198 SocketSocket
-
14233251414 Elastic Flanged Stop Nut M5Elastic Flanged Stop Nut M5
-
15410504000 BulbBulb
-
16414513700 LensLens
-
17209632540 Phillips ScrewPhillips Screw
-
18414516400 WasherWasher
-
19515175710 HeaterHeater
-
20414988700 Reflective SheetReflective Sheet
-
21415050200 L.H. Grip (370 mm)L.H. Grip (370 mm)
-
415050300 R.H. Grip (250 mm)R.H. Grip (250 mm)
-
22409210000 Male TerminalMale Terminal
-
23409204200 Male Terminal Housing (3 Circuits)Male Terminal Housing (3 Circuits)
-
24409209300 Male Terminal Housing (4 Circuits)Male Terminal Housing (4 Circuits)
-
25515175709 Heater with TerminalHeater with Terminal
-
26415050400 Grip (Short) (60 mm)Grip (Short) (60 mm)
-
27572089200 Switch HousingSwitch Housing
-
28206580890 Screw Set M8 x 8Screw Set M8 x 8
-
29572089300 PlatePlate
-
30732601255 ScrewScrew
-
31511000001 Rocker SwitchRocker Switch
-
32515175332 VinylVinyl
-
33418001800 Heat Grip DecalHeat Grip Decal
-
34572110800 CapCap
-
35511000002 Switch ProtectorSwitch Protector
-
36234081410 Flat Washer 8 mmFlat Washer 8 mm
-
37207182044 Hex. Screw M8 x 20Hex. Screw M8 x 20
-
38233281414 Elastic Flanged Stop Nut M8Elastic Flanged Stop Nut M8
-
39210261680 Hex. Screw M6 x 16Hex. Screw M6 x 16
-
40234161601 Lock Washer 6 mmLock Washer 6 mm
-
41391302100 Flat WasherFlat Washer
-
42572089400 R.H. ProtectorR.H. Protector
-
572089500 L.H. ProtectorL.H. Protector
-
43390907700 Pop RivetPop Rivet
-
44510003966 Backrest Ass'y. Includes 44 - 59.Backrest Ass'y. Includes 44 - 59.
-
45414821200 Backrest FoamBackrest Foam
-
46510003967 Backrest CoverBackrest Cover
-
47414820900 Tiller HandleTiller Handle
-
48415015500 StripStrip
-
49414821000 CapCap
-
50517296400 R.H. ArmR.H. Arm
-
51517296500 L.H. ArmL.H. Arm
-
52414813300 ReclinerRecliner
-
53207182544 Hex Screw M8 x 25Hex Screw M8 x 25
-
54232581414 Elastic Stop Nut M8Elastic Stop Nut M8
-
55207182044 Hex Screw M8 x 20Hex Screw M8 x 20
-
56234181401 Lock Washer 8 mmLock Washer 8 mm
-
57293800060 Loctite 243, 10 mlLoctite 243, 10 ml
-
58224081201 Flat WasherFlat Washer
-
59517250500 CapCap
-
60517257300 GuideGuide
-
61517251300 SpacerSpacer
-
62570027400 Rubber ShimRubber Shim
-
63414819500 WasherWasher
-
64517250000 NutNut
-
65207182584 Screw M8 x 25Screw M8 x 25
-
66234081670 Washer 8 mmWasher 8 mm
-
67232581414 Elastic Stop Nut M8Elastic Stop Nut M8
-
68414819600 WasherWasher
-
69409204900 Female Terminal Housing (4 Circuits)Female Terminal Housing (4 Circuits)
-
70293550004 Dielectric Grease, 150 gDielectric Grease, 150 g
-
71409205300 Female TerminalFemale Terminal
-
72409204300 Female Terminal Housing (3 Circuits)Female Terminal Housing (3 Circuits)
-
73515175724 Female TerminalFemale Terminal
