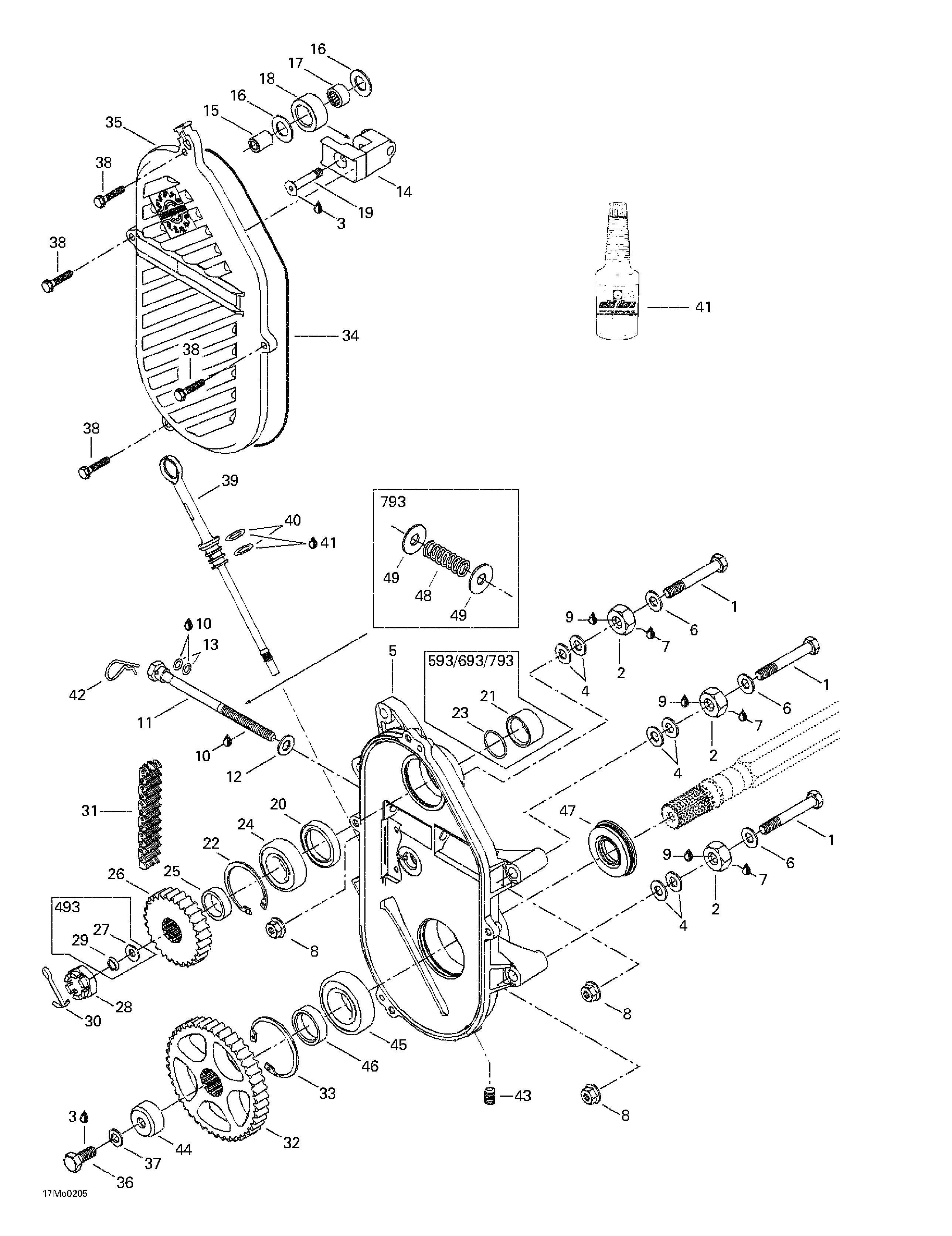

05- Chaincase для BRP Ski-Doo Grand Touring 500/600/700/800 - 2002

№

Артикул

Название
1

207108044 Hex. Screw M10 x 80

Hex. Screw M10 x 80

680 ₽
2

504083800 Spacer

Spacer

590 ₽
3

293800005 Loctite 271, 10 ml

Loctite 271, 10 ml

2 300 ₽
4

504073700 Washer

Washer

230 ₽
5

504152062 Chaincase (SE). Grand Touring 800.

Chaincase (SE). Grand Touring 800.

18 510 ₽
504152064 Chaincase. Grand Touring 500. Grand Touring 600. Grand Touring 700.

Chaincase. Grand Touring 500. Grand Touring 600. Grand Touring 700.

0 ₽
6

503183800 Washer

Washer

310 ₽
7

293800070 Loctite 767, Antiseize Lubricant, 8 oz

Loctite 767, Antiseize Lubricant, 8 oz

3 130 ₽
8

233201414 Elastic Flanged Stop Nut M10

Elastic Flanged Stop Nut M10

810 ₽
9

293800060 Loctite 243, 10 ml

Loctite 243, 10 ml

2 760 ₽
10

219700417 Synthetic Grease, 400g

Synthetic Grease, 400g

0 ₽
11

732601314 Tensioner Adjustment Screw. Grand Touring 500. Grand Touring 600. Grand Touring 700.

Tensioner Adjustment Screw. Grand Touring 500. Grand Touring 600. Grand Touring 700.

2 450 ₽
504151946 Tensioner Adjustment Screw (SE). Grand Touring 800.

Tensioner Adjustment Screw (SE). Grand Touring 800.

9 310 ₽
12

234001410 Flat Washer 10 mm. Grand Touring 500. Grand Touring 600. Grand Touring 700.

Flat Washer 10 mm. Grand Touring 500. Grand Touring 600. Grand Touring 700.

420 ₽
503189148 Flat Washer (SE). Grand Touring 800.

Flat Washer (SE). Grand Touring 800.

980 ₽
13

414484400 O-Ring. Grand Touring 500. Grand Touring 600. Grand Touring 700.

O-Ring. Grand Touring 500. Grand Touring 600. Grand Touring 700.

2 440 ₽
504151954 O-Ring (SE). Grand Touring 800.

O-Ring (SE). Grand Touring 800.

330 ₽
14

504151951 Chain Tensioner. Grand Touring 500. Grand Touring 600. Grand Touring 700.

Chain Tensioner. Grand Touring 500. Grand Touring 600. Grand Touring 700.

3 470 ₽
504151940 Chain Tensioner. Grand Touring 800.

Chain Tensioner. Grand Touring 800.

2 820 ₽
15

504080200 Spacer

Spacer

1 660 ₽
16

504080300 Washer

Washer

910 ₽
17

405403000 Needle Bearing

Needle Bearing

2 390 ₽
18

414531300 Roller

Roller

4 600 ₽
19

732601144 Screw

Screw

3 020 ₽
20

504151927 Seal. Grand Touring 500.

Seal. Grand Touring 500.

1 930 ₽
415049300 Seal. Grand Touring 600. Grand Touring 700. Grand Touring 800.

Seal. Grand Touring 600. Grand Touring 700. Grand Touring 800.

1 130 ₽
21

507031500 Spacer. Grand Touring 600. Grand Touring 700. Grand Touring 800.

Spacer. Grand Touring 600. Grand Touring 700. Grand Touring 800.

990 ₽
22

371901700 Circlip (Interior)

Circlip (Interior)

660 ₽
23

414876700 O-Ring. Grand Touring 600. Grand Touring 700. Grand Touring 800.

O-Ring. Grand Touring 600. Grand Touring 700. Grand Touring 800.

440 ₽
24

504152006 Ball Bearing

Ball Bearing

1 580 ₽
25

504147200 Shim

Shim

1 990 ₽
26

504056000 22 Teeth Sprocket (Narrow). Grand Touring 500.

22 Teeth Sprocket (Narrow). Grand Touring 500.

0 ₽
504091100 22 Teeth Sprocket (Large). (600 Europe) Grand Touring 600.

22 Teeth Sprocket (Large). (600 Europe) Grand Touring 600.

6 110 ₽
504091200 21 Teeth Sprocket (Narrow). (500 Europe) Grand Touring 500.

21 Teeth Sprocket (Narrow). (500 Europe) Grand Touring 500.

0 ₽
504091000 23 Teeth Sprocket (Large). Grand Touring 600. Grand Touring 700.

23 Teeth Sprocket (Large). Grand Touring 600. Grand Touring 700.

4 520 ₽
504152030 19 Teeth Sprocket. (700 Olympic) Grand Touring 700.

19 Teeth Sprocket. (700 Olympic) Grand Touring 700.

6 990 ₽
504139700 24 Teeth Sprocket (Large). Grand Touring 800.

24 Teeth Sprocket (Large). Grand Touring 800.

11 010 ₽
27

504152049 Washer. Grand Touring 500.

Washer. Grand Touring 500.

250 ₽
28

232210414 Hex. Castellated Nut M16. Grand Touring 500.

Hex. Castellated Nut M16. Grand Touring 500.

330 ₽
250000012 Hex. Castellated Nut M20. Grand Touring 600. Grand Touring 700. Grand Touring 800.

Hex. Castellated Nut M20. Grand Touring 600. Grand Touring 700. Grand Touring 800.

680 ₽
29

417000900 Spring Washer. Grand Touring 500.

Spring Washer. Grand Touring 500.

730 ₽
30

371801300 Cotter Pin. Grand Touring 500.

Cotter Pin. Grand Touring 500.

110 ₽
371006300 Cotter Pin. Grand Touring 600. Grand Touring 700. Grand Touring 800.

Cotter Pin. Grand Touring 600. Grand Touring 700. Grand Touring 800.

70 ₽
31

504151830 Drive Chain Large (72 Links) (Olympic). Grand Touring 700.

Drive Chain Large (72 Links) (Olympic). Grand Touring 700.

11 470 ₽
504151859 Drive Chain Narrow (74 Links). Grand Touring 500.

Drive Chain Narrow (74 Links). Grand Touring 500.

7 310 ₽
504151857 Drive Chain Large (74 Links). Grand Touring 600. Grand Touring 700. Grand Touring 800.

Drive Chain Large (74 Links). Grand Touring 600. Grand Touring 700. Grand Touring 800.

19 620 ₽
32

504148600 43 Teeth Sprocket (Large). Grand Touring 500.

43 Teeth Sprocket (Large). Grand Touring 500.

10 860 ₽
504148500 43 Teeth Sprocket (Large). Grand Touring 600. Grand Touring 700. Grand Touring 800.

43 Teeth Sprocket (Large). Grand Touring 600. Grand Touring 700. Grand Touring 800.

13 000 ₽
33

415064300 Circlip (Interior)

Circlip (Interior)

570 ₽
34

415046400 O-Ring

O-Ring

6 830 ₽
35

504152027 Chaincase Cover

Chaincase Cover

0 ₽
36

207102544 Hex. Screw M10 x 25

Hex. Screw M10 x 25

120 ₽
37

234100602 Lock Spring Washer 10 mm

Lock Spring Washer 10 mm

130 ₽
38

210263080 Hex. Forming Screw M6 x 30

Hex. Forming Screw M6 x 30

280 ₽
39

504151703 Filler Cap Ass'y

Filler Cap Ass'y

1 190 ₽
40

414969400 O-Ring

O-Ring

700 ₽
41

413803300 Synthetic Chaincase Oil,. 12 x 355 ml

Synthetic Chaincase Oil,. 12 x 355 ml

2 280 ₽
42

414575600 Hair Pin

Hair Pin

720 ₽
43

504151921 Plug 1/8-27

Plug 1/8-27

1 530 ₽
44

501022400 Cap

Cap

840 ₽
45

504152005 Ball Bearing

Ball Bearing

14 840 ₽
46

501021800 Inner Shim

Inner Shim

1 190 ₽
47

504151918 Oil Seal Ass'y

Oil Seal Ass'y

7 740 ₽
48

504151945 Spring. Grand Touring 800.

Spring. Grand Touring 800.

920 ₽
49

503125900 Hardened Washer. Grand Touring 800.

Hardened Washer. Grand Touring 800.

250 ₽
