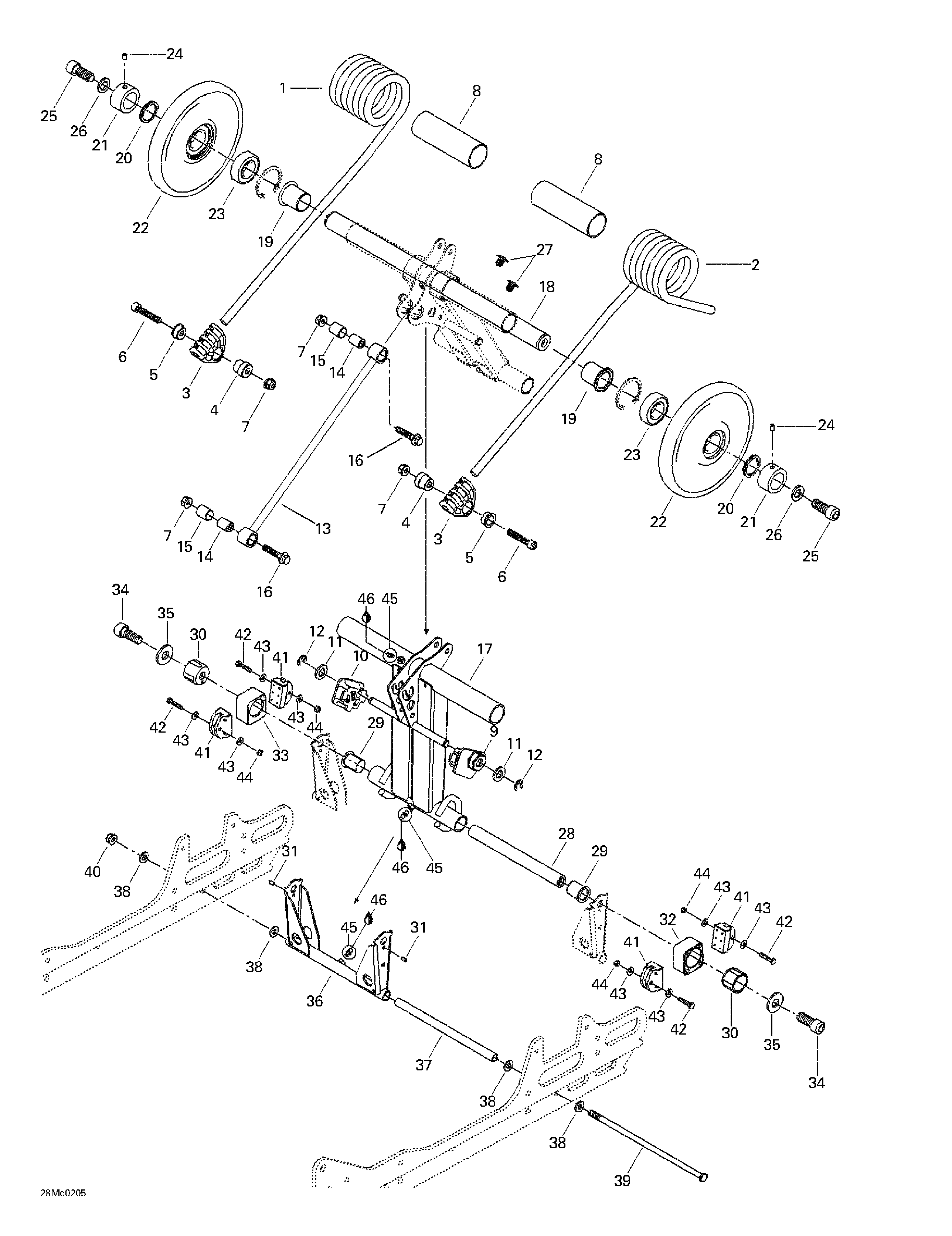

08- Rear Arm для BRP Ski-Doo Grand Touring 500/600/700/800 - 2002
-
№АртикулНазвание
-
1503189522 R.H. Spring (SE). Grand Touring 600. Grand Touring 800.R.H. Spring (SE). Grand Touring 600. Grand Touring 800.
-
503189681 R.H. Spring (Europe). Grand Touring 500. Grand Touring 600. Grand Touring 800.R.H. Spring (Europe). Grand Touring 500. Grand Touring 600. Grand Touring 800.
-
503189898 R.H. Spring (GS, STD)R.H. Spring (GS, STD)
-
2503189524 L.H. Spring (SE). Grand Touring 600. Grand Touring 800.L.H. Spring (SE). Grand Touring 600. Grand Touring 800.
-
503189683 L.H. Spring (Europe)L.H. Spring (Europe)
-
503189900 L.H. Spring (GS, STD)L.H. Spring (GS, STD)
-
3503189657 Spring SupportSpring Support
-
4503188934 Axle-Spring GuideAxle-Spring Guide
-
5503188929 Cushion RetainerCushion Retainer
-
6205084544 Socket Head Screw M8 x 45Socket Head Screw M8 x 45
-
7233281414 Elastic Flanged Stop Nut M8Elastic Flanged Stop Nut M8
-
8503189105 Plastic BushingPlastic Bushing
-
9503189773 L.H. Cam AdjusterL.H. Cam Adjuster
-
10503189774 R.H. Cam AdjusterR.H. Cam Adjuster
-
11234021410 Flat Washer 12 mmFlat Washer 12 mm
-
12293370013 CirclipCirclip
-
13503189425 Throttle RodThrottle Rod
-
14503189133 Axle RodAxle Rod
-
15503189625 CushionCushion
-
16207684044 Hex. Flanged Screw M8 x 40Hex. Flanged Screw M8 x 40
-
17503189501 Rear ArmRear Arm
-
18503189412 Upper AxleUpper Axle
-
19503189288 CushionCushion
-
20503189146 Axle SpringAxle Spring
-
21503189147 Retainer RingRetainer Ring
-
22503189187 Wheel 165 Ass'y. Includes 22 - 23.Wheel 165 Ass'y. Includes 22 - 23.
-
23405404500 Ball Bearing 6205Ball Bearing 6205
-
24206260844 Socket Head Set Screw M6 x 8Socket Head Set Screw M6 x 8
-
25205523544 Socket Head Screw M12 x 35Socket Head Screw M12 x 35
-
26503189276 WasherWasher
-
27414644300 DartDart
-
28503189413 Rear Lower AxleRear Lower Axle
-
29503189286 CushionCushion
-
30503189488 Block GuideBlock Guide
-
31250400005 Dowel Pin 4 x 8 mmDowel Pin 4 x 8 mm
-
32503189152 L.H. BlockL.H. Block
-
33503189170 R.H. BlockR.H. Block
-
34205523544 Socket Head Screw M12 x 35 (Scotch Grip)Socket Head Screw M12 x 35 (Scotch Grip)
-
35503189276 Flat Washer 12 mmFlat Washer 12 mm
-
36503189819 Pivot ArmPivot Arm
-
37503189156 Pivot Arm AxlePivot Arm Axle
-
38503189157 WasherWasher
-
39732601198 Long Bolt M8Long Bolt M8
-
40233281414 Elastic Flanged Stop Nut M8Elastic Flanged Stop Nut M8
-
41503189608 Block StopperBlock Stopper
-
42207053044 Hex. Screw M5 x 30Hex. Screw M5 x 30
-
43250200016 Flat Washer 5 mmFlat Washer 5 mm
-
44232551414 Elastic Stop Nut M5Elastic Stop Nut M5
-
45408200700 Grease FittingGrease Fitting
-
46219700417 Synthetic Grease, 400gSynthetic Grease, 400g
