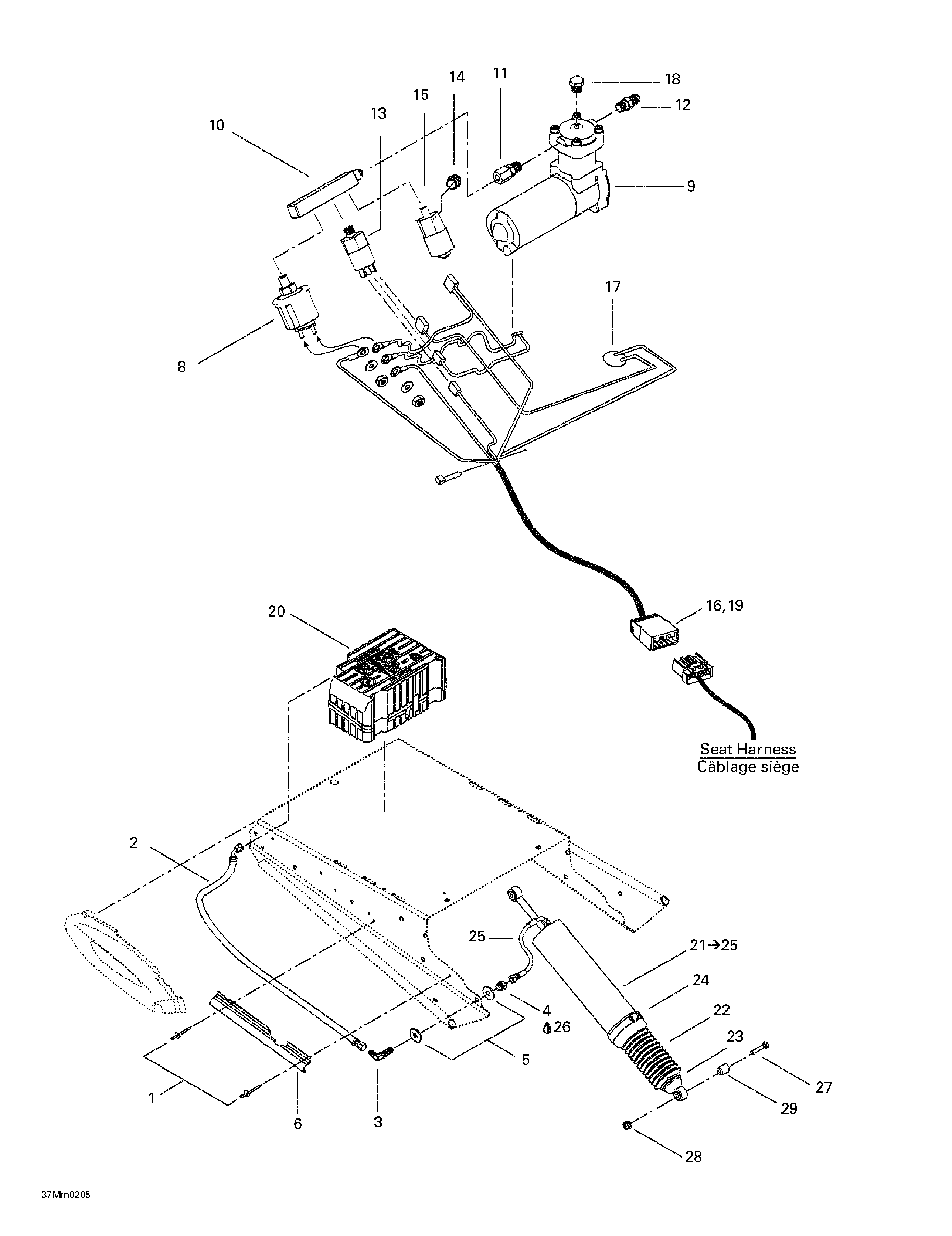

08- Air Shock And Compressor (SE) для BRP Ski-Doo Grand Touring 500/600/700/800 - 2002
-
№АртикулНазвание
-
1390403600 Pop Rivet 3/16. Grand Touring 600. Grand Touring 800.Pop Rivet 3/16. Grand Touring 600. Grand Touring 800.
-
2503189758 Pneumatic Line. Grand Touring 600. Grand Touring 800.Pneumatic Line. Grand Touring 600. Grand Touring 800.
-
3503189756 Pneumatic Jonction. Grand Touring 600. Grand Touring 800.Pneumatic Jonction. Grand Touring 600. Grand Touring 800.
-
4503189846 Junction Nut. Grand Touring 600. Grand Touring 800.Junction Nut. Grand Touring 600. Grand Touring 800.
-
5503189264 Washer. Grand Touring 600. Grand Touring 800.Washer. Grand Touring 600. Grand Touring 800.
-
6503189854 Paint Protector. Grand Touring 600. Grand Touring 800.Paint Protector. Grand Touring 600. Grand Touring 800.
-
7503189759 Compressor Ass'y. Includes 7 - 19. Grand Touring 600. Grand Touring 800.Compressor Ass'y. Includes 7 - 19. Grand Touring 600. Grand Touring 800.
-
8415043600 Pressure Sender. Grand Touring 600. Grand Touring 800.Pressure Sender. Grand Touring 600. Grand Touring 800.
-
9503189096 Air Compressor. Grand Touring 600. Grand Touring 800.Air Compressor. Grand Touring 600. Grand Touring 800.
-
10503189761 Pneumatic Adaptor. Grand Touring 600. Grand Touring 800.Pneumatic Adaptor. Grand Touring 600. Grand Touring 800.
-
11503189762 Pneumatic Adaptor. Grand Touring 600. Grand Touring 800.Pneumatic Adaptor. Grand Touring 600. Grand Touring 800.
-
12414893900 Adaptor. Grand Touring 600. Grand Touring 800.Adaptor. Grand Touring 600. Grand Touring 800.
-
13503189212 Valve. Grand Touring 600. Grand Touring 800.Valve. Grand Touring 600. Grand Touring 800.
-
14415099200 Pressure Regulator. Grand Touring 600. Grand Touring 800.Pressure Regulator. Grand Touring 600. Grand Touring 800.
-
15503189824 Soleno‹d. Grand Touring 600. Grand Touring 800.Soleno‹d. Grand Touring 600. Grand Touring 800.
-
16515175232 Male Terminal. Grand Touring 600. Grand Touring 800.Male Terminal. Grand Touring 600. Grand Touring 800.
-
17503189825 Resettable Fuse. Grand Touring 600. Grand Touring 800.Resettable Fuse. Grand Touring 600. Grand Touring 800.
-
18504151921 PLug Taper. Grand Touring 600. Grand Touring 800.PLug Taper. Grand Touring 600. Grand Touring 800.
-
19515175662 Male Terminal Housing. Grand Touring 600. Grand Touring 800.Male Terminal Housing. Grand Touring 600. Grand Touring 800.
-
20503189760 Compressor Box. Grand Touring 600. Grand Touring 800.Compressor Box. Grand Touring 600. Grand Touring 800.
-
21503189787 Air Shock Ass'y. Includes 21 - 24. Grand Touring 600. Grand Touring 800.Air Shock Ass'y. Includes 21 - 24. Grand Touring 600. Grand Touring 800.
-
22570278300 Protection Gaine. Grand Touring 600. Grand Touring 800.Protection Gaine. Grand Touring 600. Grand Touring 800.
-
23414115200 Tie Rap. Grand Touring 600. Grand Touring 800.Tie Rap. Grand Touring 600. Grand Touring 800.
-
24408803300 Tridon Gear Clamp. Grand Touring 600. Grand Touring 800.Tridon Gear Clamp. Grand Touring 600. Grand Touring 800.
-
25503189757 Pneumatic Line. Grand Touring 600. Grand Touring 800.Pneumatic Line. Grand Touring 600. Grand Touring 800.
-
26293800060 Loctite 243, 10 ml. Grand Touring 600. Grand Touring 800.Loctite 243, 10 ml. Grand Touring 600. Grand Touring 800.
-
27207684044 Hex. Flanged Screw M8 x 40. Grand Touring 600. Grand Touring 800.Hex. Flanged Screw M8 x 40. Grand Touring 600. Grand Touring 800.
-
28233281414 Elastic Flanged Stop Nut M8. Grand Touring 600. Grand Touring 800.Elastic Flanged Stop Nut M8. Grand Touring 600. Grand Touring 800.
-
29414936000 Cushion. Grand Touring 600. Grand Touring 800.Cushion. Grand Touring 600. Grand Touring 800.
