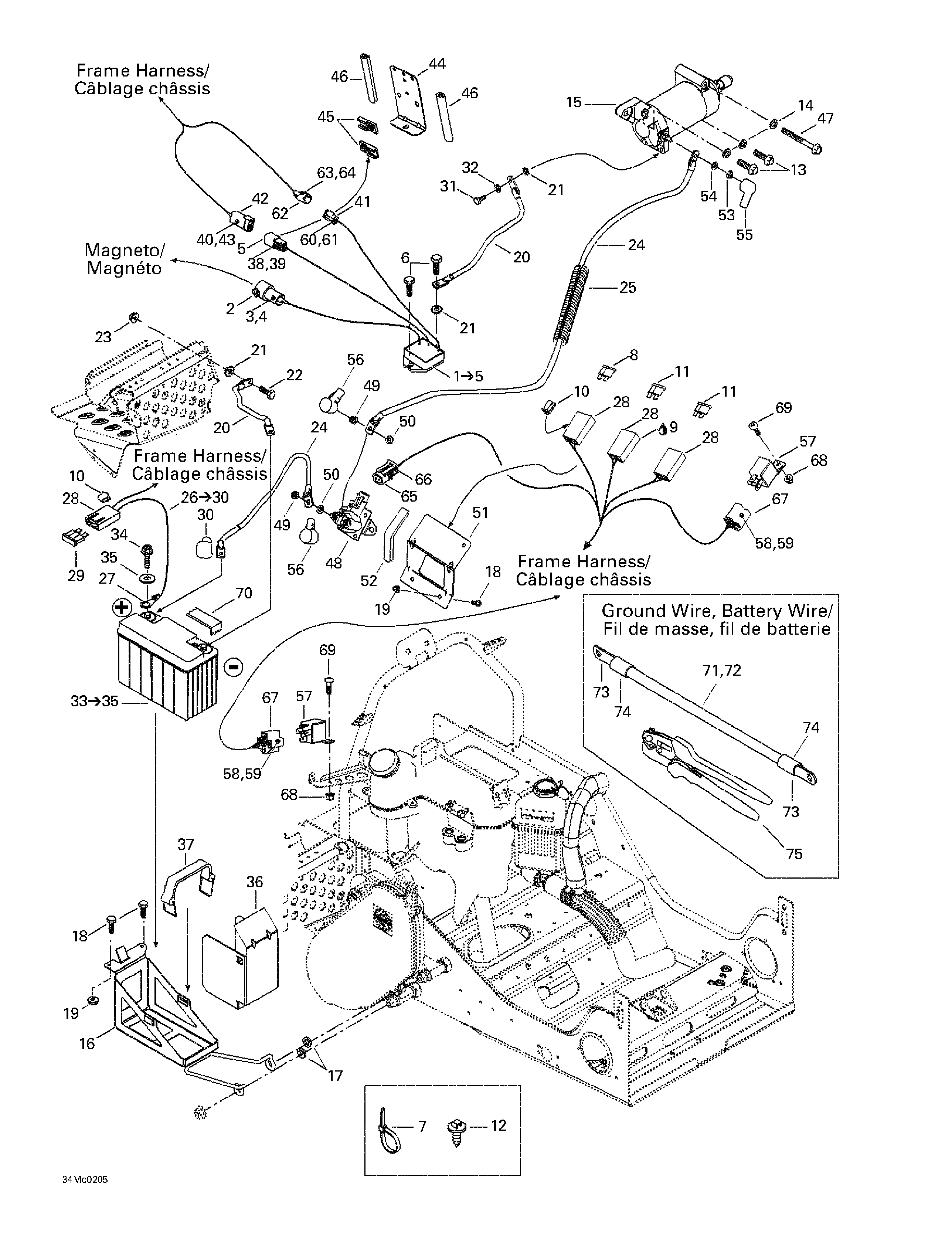

10- Battery And Starter для BRP Ski-Doo Grand Touring 500/600/700/800 - 2002
-
№АртикулНазвание
-
1515175661 Voltage Regulator. Includes 1 - 5.Voltage Regulator. Includes 1 - 5.
-
2409207900 Male Terminal Housing (3 Circuits)Male Terminal Housing (3 Circuits)
-
3409011100 Male TerminalMale Terminal
-
4409208500 SealSeal
-
5278001674 Male Terminal Housing (2 Circuits)Male Terminal Housing (2 Circuits)
-
6210261680 Hex. Screw M6 x 16Hex. Screw M6 x 16
-
7293750001 Tie Rap 94 mmTie Rap 94 mm
-
293750009 Tie Rap 160 mmTie Rap 160 mm
-
414115200 Tie Rap 180 mmTie Rap 180 mm
-
293750008 Tie Rap 350 mmTie Rap 350 mm
-
515175220 Tie RapTie Rap
-
8278000344 Fuse (5 Amperes)Fuse (5 Amperes)
-
9293550004 Dielectric Grease, 150 gDielectric Grease, 150 g
-
10409014200 Backward ClipBackward Clip
-
11409003900 Fuse (20 Amperes)Fuse (20 Amperes)
-
12293730018 Dart MountDart Mount
-
13207583044 Hex Flanged Screw M8 X 30 (Scotch Grip)Hex Flanged Screw M8 X 30 (Scotch Grip)
-
14250200008 Flat Washer 8 mmFlat Washer 8 mm
-
15515175562 StarterStarter
-
16515175625 Battery SupportBattery Support
-
17503175800 Flat WasherFlat Washer
-
18207151444 Hex. Screw M5 x 14Hex. Screw M5 x 14
-
19233251414 Flanged Elastic Nut M5Flanged Elastic Nut M5
-
21250200000 Lock Washer SerratedLock Washer Serrated
-
22207161644 Hex. Screw M6 x 16Hex. Screw M6 x 16
-
23233261414 Elastic Flanged Nut M6Elastic Flanged Nut M6
-
25409901700 TubingTubing
-
26515175489 Battery Fuse Wire. Includes 26 - 30.Battery Fuse Wire. Includes 26 - 30.
-
27409012600 Ring TerminalRing Terminal
-
28409004000 Fuse HolderFuse Holder
-
29410917200 Fuse (30 Amperes)Fuse (30 Amperes)
-
30570151000 Protection CapProtection Cap
-
31207361644 Hex. Screw (Scotch Grip) M6 x 16Hex. Screw (Scotch Grip) M6 x 16
-
32234181401 Flat Washer 6 mmFlat Washer 6 mm
-
33515175642 Battery (18 Amperes). Includes 33 - 35.Battery (18 Amperes). Includes 33 - 35.
-
34207151260 Hex. Screw M6 x 12Hex. Screw M6 x 12
-
35234061410 Flat Washer 6 mmFlat Washer 6 mm
-
36515175643 DeflectorDeflector
-
37515175475 Battery StrapBattery Strap
-
38278001672 Male LockMale Lock
-
39515175568 Male TerminalMale Terminal
-
40278001671 Female LockFemale Lock
-
41515175670 Female Terminal Housing (2 Circuits)Female Terminal Housing (2 Circuits)
-
42278001673 Female Terminal Housing (2 Circuits)Female Terminal Housing (2 Circuits)
-
43515175567 Female terminalFemale terminal
-
44515175738 Housing SupportHousing Support
-
45270000141 ClipClip
-
46271000110 Trim ProtectorTrim Protector
-
47207587544 Hex. Flanged Screw (Scotch Grip) M8 x 75Hex. Flanged Screw (Scotch Grip) M8 x 75
-
48278001641 Starter RelayStarter Relay
-
49232561414 Elastic Stop Nut M6Elastic Stop Nut M6
-
50234061410 Flat WasherFlat Washer
-
51515175695 Fuse HolderFuse Holder
-
52271000110 Trim ProtectorTrim Protector
-
53232561414 Hex. Nut M6Hex. Nut M6
-
54234061410 Flat Washer M6Flat Washer M6
-
55278000020 CapCap
-
56570064200 Protection CapProtection Cap
-
57410113200 RelayRelay
-
58409205300 Female terminalFemale terminal
-
59409203300 Female terminalFemale terminal
-
60515175675 Female LockFemale Lock
-
61278000632 Female terminalFemale terminal
-
62515175665 Male Terminal Housing (2 Circuits)Male Terminal Housing (2 Circuits)
-
63278000631 MaleTerminalMaleTerminal
-
64409207500 Male LockMale Lock
-
65278001113 Female Terminal Housing (2 Circuits)Female Terminal Housing (2 Circuits)
-
66278001114 Female terminalFemale terminal
-
67409209900 Female Terminal Housing (5 Circuits)Female Terminal Housing (5 Circuits)
-
68233251414 Elastic Flanged NutElastic Flanged Nut
-
69208651241 ScrewScrew
-
70293740005 Vinyl Tape 3/4''Vinyl Tape 3/4''
-
71278001680 Ground Cable Battery (no. 6) (Meter)Ground Cable Battery (no. 6) (Meter)
-
278001681 Ground Cable Battery (no. 4) (Meter)Ground Cable Battery (no. 4) (Meter)
-
72278001690 Red Cable Battery (no. 6) (Meter)Red Cable Battery (no. 6) (Meter)
-
73278001682 Flat Terminal (Small Hole)Flat Terminal (Small Hole)
-
278001683 Terminal 45 Deg. (Small Hole)Terminal 45 Deg. (Small Hole)
-
278001684 Terminal 90 Deg. (Small Hole)Terminal 90 Deg. (Small Hole)
-
278001685 Flat Terminal (Big Hole)Flat Terminal (Big Hole)
-
278001686 Terminal 45 Deg. (Big Hole)Terminal 45 Deg. (Big Hole)
-
278001687 Terminal 90 Deg. (Big Hole)Terminal 90 Deg. (Big Hole)
-
278001688 Flat TerminalFlat Terminal
-
74278001692 Heat ShrinkHeat Shrink
-
75529035730 Crimp PlierCrimp Plier
