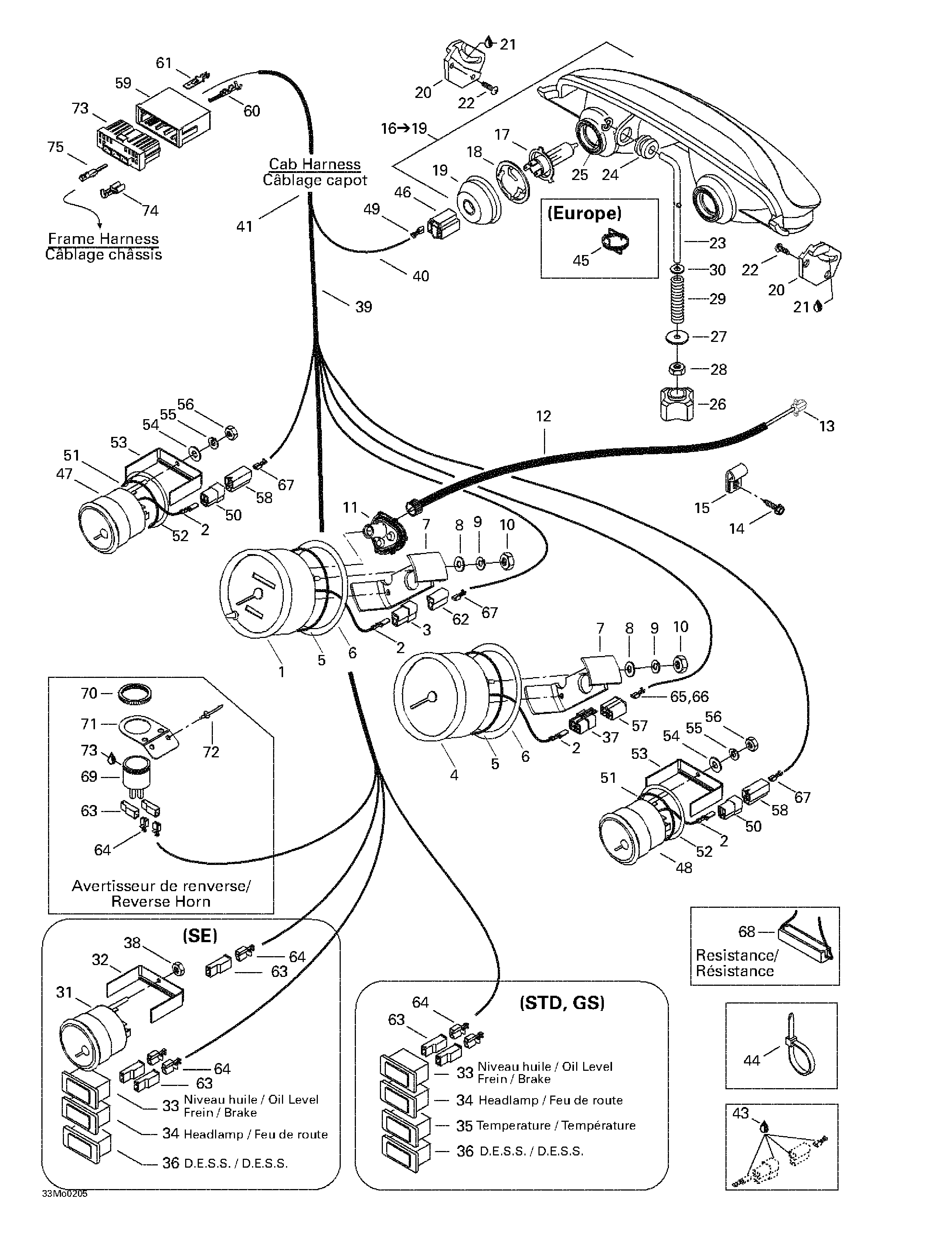

10- Cab Harness для BRP Ski-Doo Grand Touring 500/600/700/800 - 2002
-
№АртикулНазвание
-
1515175335 Speedometer (KMH)Speedometer (KMH)
-
515175336 Speedometer (MPH)Speedometer (MPH)
-
2409210000 Male TerminalMale Terminal
-
3409204500 Male Terminal Housing (2 circuits)Male Terminal Housing (2 circuits)
-
4515175621 TachometerTachometer
-
5414807100 O-RingO-Ring
-
6517258500 WasherWasher
-
7414806500 Case HolderCase Holder
-
8391301700 Flat WasherFlat Washer
-
9414806700 Lock WasherLock Washer
-
10414806900 NutNut
-
11515175400 Drive AngleDrive Angle
-
12415101500 Speedometer CableSpeedometer Cable
-
13572010100 Speedometer Drive InsertSpeedometer Drive Insert
-
15414176000 Clip (Cable)Clip (Cable)
-
16515175517 Halogen Headlamp. Includes 16 - 19.Halogen Headlamp. Includes 16 - 19.
-
17410504401 Halogen Bulb 60/55 WHalogen Bulb 60/55 W
-
18410608300 Bulb HolderBulb Holder
-
19410607100 Protector CapProtector Cap
-
20517289300 Headlamp Support R.HHeadlamp Support R.H
-
517289400 Headlamp Support L.HHeadlamp Support L.H
-
21413707500 Grease Tube LMZ, 400 gGrease Tube LMZ, 400 g
-
22732601315 Headlamp ScrewHeadlamp Screw
-
23517295800 Adjuster RodAdjuster Rod
-
24415100800 GrommetGrommet
-
25732610072 Push NutPush Nut
-
26515175548 HandleHandle
-
27224060251 WasherWasher
-
28232561414 Elastic Stop Nut M6Elastic Stop Nut M6
-
29415100600 SpringSpring
-
30234061410 Flat Washer 6 mmFlat Washer 6 mm
-
31415043500 Pressure Gauge. Grand Touring 600. Grand Touring 800.Pressure Gauge. Grand Touring 600. Grand Touring 800.
-
32415122900 Case Holder. Grand Touring 600. Grand Touring 800.Case Holder. Grand Touring 600. Grand Touring 800.
-
33515175728 Pilot Lamp (Oil Level / Brake)Pilot Lamp (Oil Level / Brake)
-
34515175726 Pilot Lamp (Headlamp)Pilot Lamp (Headlamp)
-
35515175727 Pilot Lamp (Temperature). Grand Touring 500. Grand Touring 600. Grand Touring 700.Pilot Lamp (Temperature). Grand Touring 500. Grand Touring 600. Grand Touring 700.
-
36410113300 Pilot Lamp (DESS). STD/GSPilot Lamp (DESS). STD/GS
-
36515175729 Pilot Lamp (DESS/RER). SEPilot Lamp (DESS/RER). SE
-
37409209300 Male Terminal Housing (4 circuits)Male Terminal Housing (4 circuits)
-
38233241414 Elastic Nut M4. Grand Touring 600. Grand Touring 800.Elastic Nut M4. Grand Touring 600. Grand Touring 800.
-
39409901800 TubingTubing
-
40415079900 TubingTubing
-
41515175641 Hood HarnessHood Harness
-
42515175639 Frame Harness (Not Shown)Frame Harness (Not Shown)
-
43293550004 Dielectric Grease, 150 gDielectric Grease, 150 g
-
44293750001 Tie Rap 94 mmTie Rap 94 mm
-
293750002 Tie Rap 130 mmTie Rap 130 mm
-
293750009 Tie Rap 160 mmTie Rap 160 mm
-
293750008 Tie Rap 350 mmTie Rap 350 mm
-
414115200 Tie Rap 180 mmTie Rap 180 mm
-
515175220 Tie RapTie Rap
-
45515175324 Spring (Europe)Spring (Europe)
-
46409202700 Female Terminal Housing (3 circuits)Female Terminal Housing (3 circuits)
-
47515175342 Temperature Gauge. Grand Touring 600. Grand Touring 700. Grand Touring 800.Temperature Gauge. Grand Touring 600. Grand Touring 700. Grand Touring 800.
-
48515175343 Fuel Gauge. Grand Touring 600. Grand Touring 700. Grand Touring 800.Fuel Gauge. Grand Touring 600. Grand Touring 700. Grand Touring 800.
-
49515175320 Female TerminalFemale Terminal
-
50409204200 Male Terminal Housing (3 Circuits). Grand Touring 600. Grand Touring 700. Grand Touring 800.Male Terminal Housing (3 Circuits). Grand Touring 600. Grand Touring 700. Grand Touring 800.
-
51414807200 O-Ring. Grand Touring 600. Grand Touring 700. Grand Touring 800.O-Ring. Grand Touring 600. Grand Touring 700. Grand Touring 800.
-
52517258600 Formed Washer. Grand Touring 600. Grand Touring 700. Grand Touring 800.Formed Washer. Grand Touring 600. Grand Touring 700. Grand Touring 800.
-
53415099800 Case Holder. Grand Touring 600. Grand Touring 700. Grand Touring 800.Case Holder. Grand Touring 600. Grand Touring 700. Grand Touring 800.
-
54391301700 Washer. Grand Touring 600. Grand Touring 700. Grand Touring 800.Washer. Grand Touring 600. Grand Touring 700. Grand Touring 800.
-
55414833700 Lock Washer. Grand Touring 600. Grand Touring 700. Grand Touring 800.Lock Washer. Grand Touring 600. Grand Touring 700. Grand Touring 800.
-
56414833600 Nut. Grand Touring 600. Grand Touring 700. Grand Touring 800.Nut. Grand Touring 600. Grand Touring 700. Grand Touring 800.
-
57409204900 Female Terminal Housing (4 circuits)Female Terminal Housing (4 circuits)
-
58409204300 Female Terminal Housing (3 circuits). Grand Touring 600. Grand Touring 700. Grand Touring 800.Female Terminal Housing (3 circuits). Grand Touring 600. Grand Touring 700. Grand Touring 800.
-
59515175352 Male Terminal Housing (13 circuits)Male Terminal Housing (13 circuits)
-
60515175232 Male TerminalMale Terminal
-
61515175273 Male TerminalMale Terminal
-
62409204600 Female Terminal Housing (2 circuits)Female Terminal Housing (2 circuits)
-
63409010400 Female HousingFemale Housing
-
64409010100 Female TerminalFemale Terminal
-
65409009300 Male TerminalMale Terminal
-
66409009200 Male TerminalMale Terminal
-
67409005300 Female TerminalFemale Terminal
-
68515175241 Resistance (50 ohms)Resistance (50 ohms)
-
69415060900 HornHorn
-
70414805101 Plastic NutPlastic Nut
-
71515175688 Painted NutPainted Nut
-
72390402200 Pop Rivet 3/16''Pop Rivet 3/16''
-
73296000309 Sealant Silicone, ClearSealant Silicone, Clear
