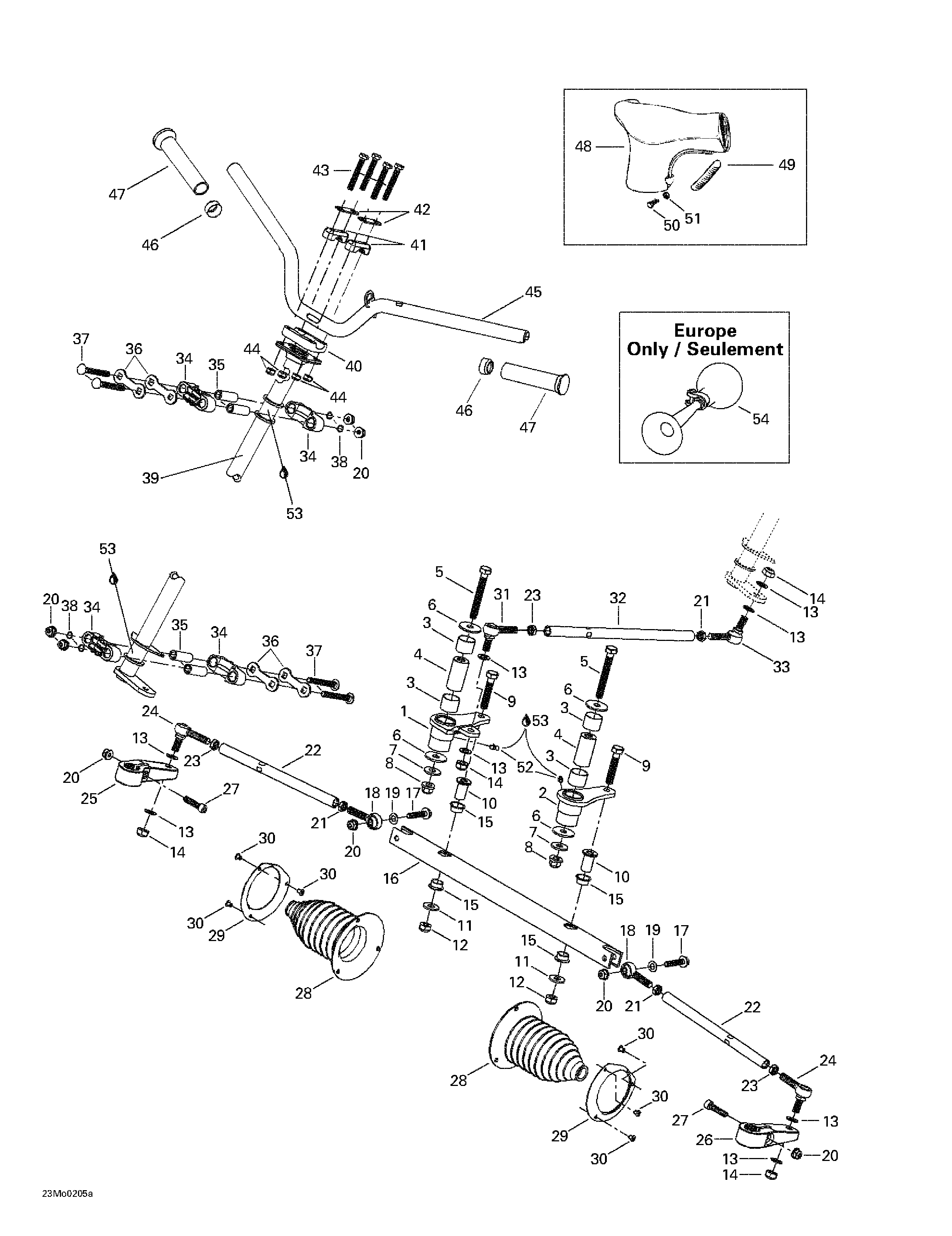

07- Steering System для BRP Ski-Doo Grand Touring 500/600/700/800 - 2002
-
№АртикулНазвание
-
1506151506 R.H. Swivel ArmR.H. Swivel Arm
-
2506151507 L.H. Swivel ArmL.H. Swivel Arm
-
3506149900 Swivel-BushingSwivel-Bushing
-
4506150100 Swivel-PivotSwivel-Pivot
-
5207008086 Hex. Screw M10 x 80Hex. Screw M10 x 80
-
6506150000 Washer 10 mmWasher 10 mm
-
7506151251 WasherWasher
-
8732610084 Elastic Flanged Stop Nut M10Elastic Flanged Stop Nut M10
-
9207005544 Hex. Screw M10 x 55Hex. Screw M10 x 55
-
10506147300 Pivot-BarPivot-Bar
-
11224002251 Flat WasherFlat Washer
-
12233601416 Elastic Locking Nut M10Elastic Locking Nut M10
-
13503175800 WasherWasher
-
14232501416 Elastic Stop Nut M10Elastic Stop Nut M10
-
15506150200 Swivel-BushingSwivel-Bushing
-
16506147000 Bar-SwivelBar-Swivel
-
17207684044 Hex. Flange Screw M8 x 40Hex. Flange Screw M8 x 40
-
18506151496 L.H. Ball JointL.H. Ball Joint
-
19506151252 WasherWasher
-
20233281414 Elastic Flanged Stop Nut M8Elastic Flanged Stop Nut M8
-
21250100016 L.H. Jam Nut M10L.H. Jam Nut M10
-
22506151190 Tie-RodTie-Rod
-
23732610010 R.H. Jam Nut M10R.H. Jam Nut M10
-
24506151491 Ball JointBall Joint
-
25506145800 R.H. Steering ArmR.H. Steering Arm
-
26506145900 L.H. Steering ArmL.H. Steering Arm
-
27205083544 Socket Head Screw M8 x 35Socket Head Screw M8 x 35
-
28570070500 Tie-Rod CapTie-Rod Cap
-
29506151100 Retainer RingRetainer Ring
-
30390402300 Pop RivetPop Rivet
-
31506151492 R.H. Ball JointR.H. Ball Joint
-
32506150300 Inside Tie-RodInside Tie-Rod
-
33506151495 L.H. Ball JointL.H. Ball Joint
-
34506150400 Half HousingHalf Housing
-
35506150500 Housing BushingHousing Bushing
-
36506150600 Stopper PlateStopper Plate
-
37207787044 Carriage Bolt M8 x 70Carriage Bolt M8 x 70
-
38506151140 O-RingO-Ring
-
39506147100 Main Tube (Sports, GS). Grand Touring 500. Grand Touring 600. Grand Touring 700.Main Tube (Sports, GS). Grand Touring 500. Grand Touring 600. Grand Touring 700.
-
40277000142 Steering Clamp (Sports, GS). Grand Touring 500. Grand Touring 600. Grand Touring 700.Steering Clamp (Sports, GS). Grand Touring 500. Grand Touring 600. Grand Touring 700.
-
41414491600 Steering Support (Sport, GS). Grand Touring 500. Grand Touring 600. Grand Touring 700.Steering Support (Sport, GS). Grand Touring 500. Grand Touring 600. Grand Touring 700.
-
42506151196 Reinforcement (Sport, GS). Grand Touring 500. Grand Touring 600. Grand Touring 700.Reinforcement (Sport, GS). Grand Touring 500. Grand Touring 600. Grand Touring 700.
-
43207085544 Hex. Screw M8 x 55 (Sport, GS). Grand Touring 500. Grand Touring 600. Grand Touring 700.Hex. Screw M8 x 55 (Sport, GS). Grand Touring 500. Grand Touring 600. Grand Touring 700.
-
44232581414 Elastic Stop Nut M8 (Sport, GS). Grand Touring 500. Grand Touring 600. Grand Touring 700.Elastic Stop Nut M8 (Sport, GS). Grand Touring 500. Grand Touring 600. Grand Touring 700.
-
45506151277 Handlebar (Sport, GS). Grand Touring 500. Grand Touring 600. Grand Touring 700.Handlebar (Sport, GS). Grand Touring 500. Grand Touring 600. Grand Touring 700.
-
46572081900 Handlebar End (Sport, GS). Grand Touring 500. Grand Touring 600. Grand Touring 700.Handlebar End (Sport, GS). Grand Touring 500. Grand Touring 600. Grand Touring 700.
-
47572100500 Handle Grip (Sport, GS). Grand Touring 500. Grand Touring 600. Grand Touring 700.Handle Grip (Sport, GS). Grand Touring 500. Grand Touring 600. Grand Touring 700.
-
48506151275 Steering Padding (Sport, GS). Grand Touring 500. Grand Touring 600. Grand Touring 700.Steering Padding (Sport, GS). Grand Touring 500. Grand Touring 600. Grand Touring 700.
-
49572106200 Keyway (Sport, GS). Grand Touring 500. Grand Touring 600. Grand Touring 700.Keyway (Sport, GS). Grand Touring 500. Grand Touring 600. Grand Touring 700.
-
50208652044 Screw M5 x 20 (Sport, GS). Grand Touring 500. Grand Touring 600. Grand Touring 700.Screw M5 x 20 (Sport, GS). Grand Touring 500. Grand Touring 600. Grand Touring 700.
-
51233251414 Elastic Flanged Stop Nut M5. (Sport, GS) Grand Touring 500. Grand Touring 600. Grand Touring 700.Elastic Flanged Stop Nut M5. (Sport, GS) Grand Touring 500. Grand Touring 600. Grand Touring 700.
-
52408200700 Grease Fitting. Grand Touring 500. Grand Touring 600. Grand Touring 700.Grease Fitting. Grand Touring 500. Grand Touring 600. Grand Touring 700.
-
53219700417 Synthetic Grease, 400g. Grand Touring 500. Grand Touring 600. Grand Touring 700.Synthetic Grease, 400g. Grand Touring 500. Grand Touring 600. Grand Touring 700.
-
54415040700 Horn. Grand Touring 500.Horn. Grand Touring 500.
