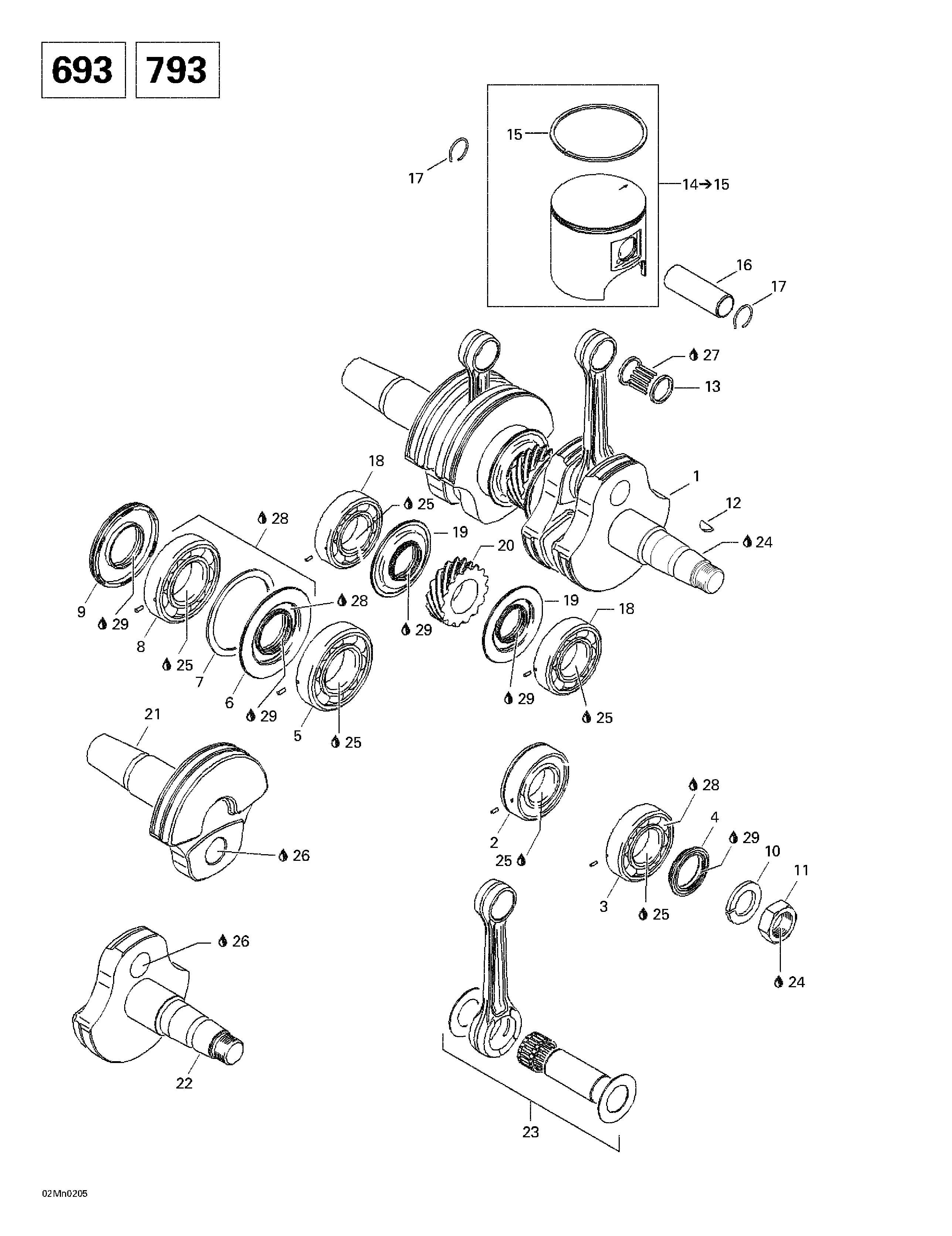

01- Crankshaft And Pistons (693) для BRP Ski-Doo Grand Touring 500/600/700/800 - 2002
-
№АртикулНазвание
-
1420888286 Crankshaft Ass'y. Includes 1 - 9. Grand Touring 700.Crankshaft Ass'y. Includes 1 - 9. Grand Touring 700.
-
1420888402 Crankshaft Ass'y. Includes 1 - 8. Grand Touring 800.Crankshaft Ass'y. Includes 1 - 8. Grand Touring 800.
-
2420832635 Ball Bearing 6207. Grand Touring 700. Grand Touring 800.Ball Bearing 6207. Grand Touring 700. Grand Touring 800.
-
3420832575 Ball Bearing 6207. Grand Touring 700. Grand Touring 800.Ball Bearing 6207. Grand Touring 700. Grand Touring 800.
-
4420931792 Oil Seal. Grand Touring 700. Grand Touring 800.Oil Seal. Grand Touring 700. Grand Touring 800.
-
5420832600 Ball Bearing 6208. Grand Touring 700. Grand Touring 800.Ball Bearing 6208. Grand Touring 700. Grand Touring 800.
-
6420931910 Oil Seal. Grand Touring 700. Grand Touring 800.Oil Seal. Grand Touring 700. Grand Touring 800.
-
7420926190 Washer. Grand Touring 700. Grand Touring 800.Washer. Grand Touring 700. Grand Touring 800.
-
8420832600 Ball Bearing 6208. Grand Touring 700.Ball Bearing 6208. Grand Touring 700.
-
420832601 Ball Bearing. Grand Touring 800.Ball Bearing. Grand Touring 800.
-
9420931280 Oil Seal. Grand Touring 700.Oil Seal. Grand Touring 700.
-
420931285 Oil Seal. Grand Touring 800.Oil Seal. Grand Touring 800.
-
10420945759 Lock Washer 22 mm. Grand Touring 700. Grand Touring 800.Lock Washer 22 mm. Grand Touring 700. Grand Touring 800.
-
11420842230 Nut M22. Grand Touring 700. Grand Touring 800.Nut M22. Grand Touring 700. Grand Touring 800.
-
12420246015 Woodruff Key. Grand Touring 700. Grand Touring 800.Woodruff Key. Grand Touring 700. Grand Touring 800.
-
13420832425 Needle Bearing. Grand Touring 700. Grand Touring 800.Needle Bearing. Grand Touring 700. Grand Touring 800.
-
14420888298 Piston Ass'y (77.88 mm). Includes 14 - 15. Grand Touring 700.Piston Ass'y (77.88 mm). Includes 14 - 15. Grand Touring 700.
-
420888439 Piston Ass'y (81.87 mm). Grand Touring 800.Piston Ass'y (81.87 mm). Grand Touring 800.
-
15420815226 Semi-Trapez Ring. Grand Touring 700.Semi-Trapez Ring. Grand Touring 700.
-
420815218 Semi-Trapez Ring. Grand Touring 800.Semi-Trapez Ring. Grand Touring 800.
-
16420916370 Gudgeon Pin. Grand Touring 700. Grand Touring 800.Gudgeon Pin. Grand Touring 700. Grand Touring 800.
-
17420845106 Piston Circlip. Grand Touring 700. Grand Touring 800.Piston Circlip. Grand Touring 700. Grand Touring 800.
-
18420832575 Ball Bearing 6207. Grand Touring 700. Grand Touring 800.Ball Bearing 6207. Grand Touring 700. Grand Touring 800.
-
19420931455 Oil Seal. Grand Touring 700. Grand Touring 800.Oil Seal. Grand Touring 700. Grand Touring 800.
-
20420834355 Central Gear (15 Teeth). Grand Touring 700. Grand Touring 800.Central Gear (15 Teeth). Grand Touring 700. Grand Touring 800.
-
21420818708 Crankshaft (PTO). Grand Touring 700.Crankshaft (PTO). Grand Touring 700.
-
420819030 Crankshaft (PTO). Grand Touring 800.Crankshaft (PTO). Grand Touring 800.
-
22420818738 Crankshaft (MAG). Grand Touring 700.Crankshaft (MAG). Grand Touring 700.
-
420819061 Crankshaft (MAG). Grand Touring 800.Crankshaft (MAG). Grand Touring 800.
-
23420888288 Rod Repair Kit (MAG). Grand Touring 700.Rod Repair Kit (MAG). Grand Touring 700.
-
420889103 Rod Repair Kit (MAG). Grand Touring 800.Rod Repair Kit (MAG). Grand Touring 800.
-
420888289 Rod Repair Kit (PTO). Grand Touring 700.Rod Repair Kit (PTO). Grand Touring 700.
-
420889104 Rod Repair Kit (PTO). Grand Touring 800.Rod Repair Kit (PTO). Grand Touring 800.
-
24293800060 Loctite 243, 10 ml. Grand Touring 700. Grand Touring 800.Loctite 243, 10 ml. Grand Touring 700. Grand Touring 800.
-
25293800070 Loctite 767, Antiseize Lubricant, 8 oz. Grand Touring 700. Grand Touring 800.Loctite 767, Antiseize Lubricant, 8 oz. Grand Touring 700. Grand Touring 800.
-
26413711400 Loctite 648, 10 ml. Grand Touring 700. Grand Touring 800.Loctite 648, 10 ml. Grand Touring 700. Grand Touring 800.
-
27413802900 Injection Oil (12 x 1 Liter). Grand Touring 700. Grand Touring 800.Injection Oil (12 x 1 Liter). Grand Touring 700. Grand Touring 800.
-
28293550021 Isoflex Grease, 50 g. Grand Touring 700. Grand Touring 800.Isoflex Grease, 50 g. Grand Touring 700. Grand Touring 800.
-
29420899271 Petamo Grease GHY 133N, 400 g. Grand Touring 700. Grand Touring 800.Petamo Grease GHY 133N, 400 g. Grand Touring 700. Grand Touring 800.
