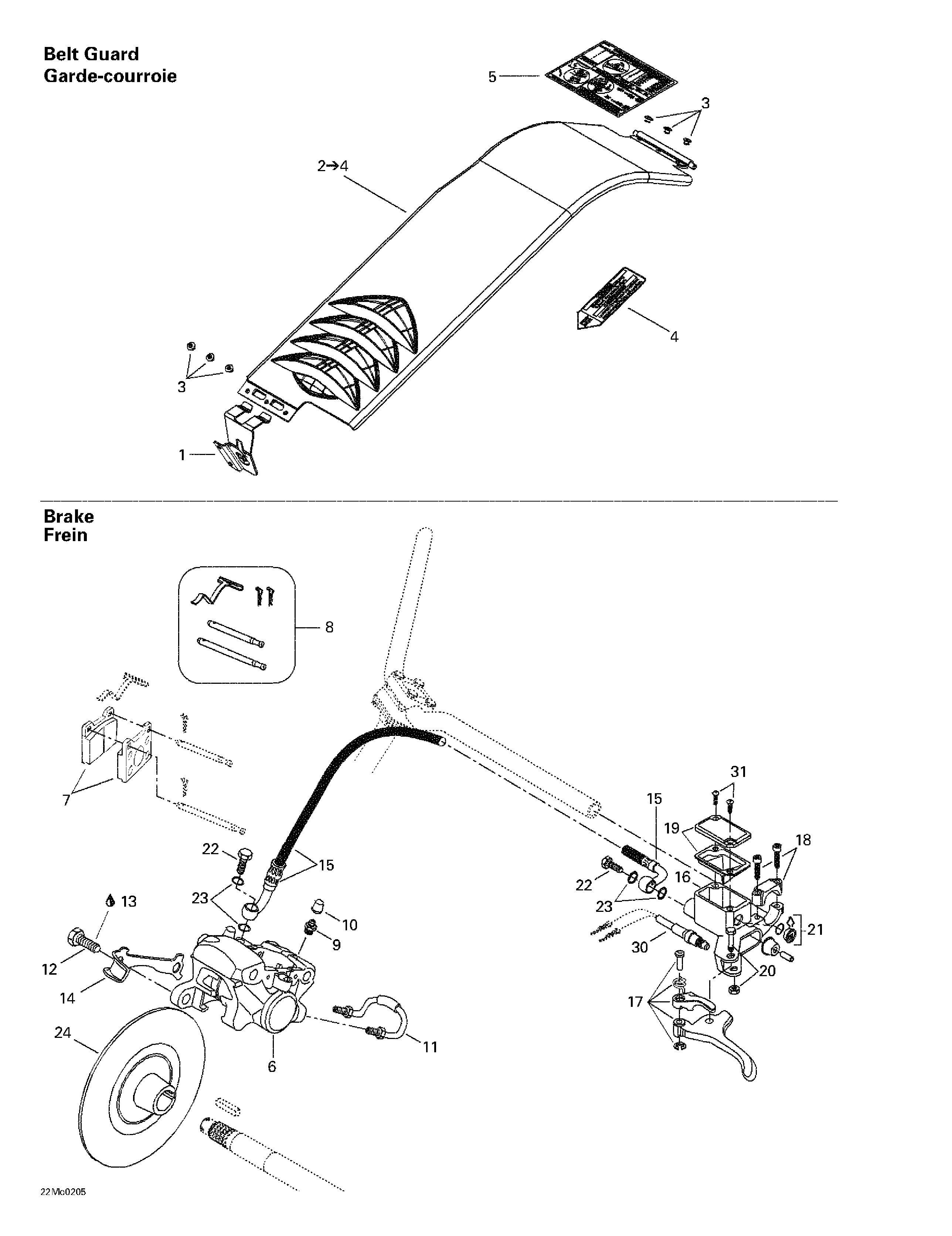

06- Hydraulic Brake And Belt Guard для BRP Ski-Doo Grand Touring 500/600/700/800 - 2002
-
№АртикулНазвание
-
1417300001 BracketBracket
-
2417300173 Belt Guard Ass'y. Includes 2 - 4.Belt Guard Ass'y. Includes 2 - 4.
-
3390402200 Pop Rivet 3/16Pop Rivet 3/16
-
4516001190 Warning LabelWarning Label
-
5516000954 Suspension Adjustment Decal. Grand Touring 500. Grand Touring 600. Grand Touring 700.Suspension Adjustment Decal. Grand Touring 500. Grand Touring 600. Grand Touring 700.
-
516000953 Suspension Adjustment Decal (SE). Grand Touring 600. Grand Touring 800.Suspension Adjustment Decal (SE). Grand Touring 600. Grand Touring 800.
-
6415034500 Caliper. Includes 6 - 11. Grand Touring 500. Grand Touring 600. Grand Touring 700.Caliper. Includes 6 - 11. Grand Touring 500. Grand Touring 600. Grand Touring 700.
-
507032321 Caliper (SF-HP). Grand Touring 800.Caliper (SF-HP). Grand Touring 800.
-
7415084600 Brake Lining Kit (SF-HP). Grand Touring 800.Brake Lining Kit (SF-HP). Grand Touring 800.
-
415053600 Brake Lining Kit. Grand Touring 500. Grand Touring 600. Grand Touring 700.Brake Lining Kit. Grand Touring 500. Grand Touring 600. Grand Touring 700.
-
8414990700 Kit (Pins, Retainers, Spring)Kit (Pins, Retainers, Spring)
-
9414989800 Screw-BleederScrew-Bleeder
-
10414989700 BootBoot
-
11414989900 Rigid TubingRigid Tubing
-
12207103544 Hex. Screw M10 x 35Hex. Screw M10 x 35
-
13293800060 Loctite 243, 10 mlLoctite 243, 10 ml
-
14507032237 Locking TabLocking Tab
-
15507032237 HoseHose
-
16507032293 Master Cylinder. Includes 16 - 21.Master Cylinder. Includes 16 - 21.
-
17507032268 Brake Short Lever Ass'yBrake Short Lever Ass'y
-
18415029800 Clamp Ass'yClamp Ass'y
-
19415029900 CapCap
-
20415030000 Pin Ass'yPin Ass'y
-
21414990600 WindowWindow
-
22414920500 Banjo BoltBanjo Bolt
-
23414920600 WasherWasher
-
24507032203 Brake Disk. GT 500Brake Disk. GT 500
-
24507031300 Brake Disk. GT 600/700/800Brake Disk. GT 600/700/800
-
25507032334 MicroswitchMicroswitch
-
26216141260 Screw M4 x 12Screw M4 x 12
