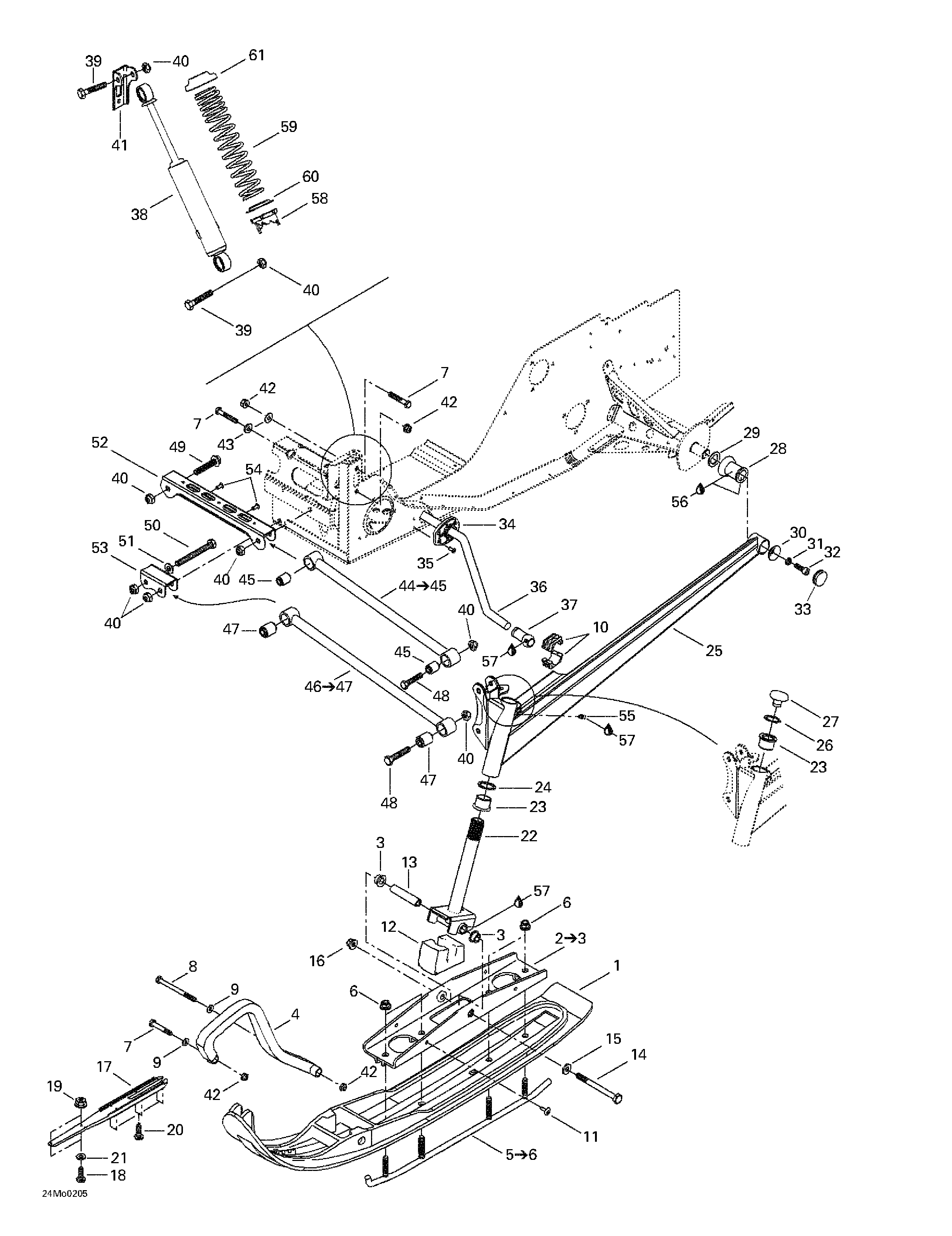

07- Front Suspension And Ski для BRP Ski-Doo Grand Touring 500/600/700/800 - 2002
-
№АртикулНазвание
-
1505070189 Ski LinerSki Liner
-
505070909 Ski Liner (Yellow) (Olympic). Grand Touring 700.Ski Liner (Yellow) (Olympic). Grand Touring 700.
-
2505070055 Bridge Ass'y. Includes 2 - 3.Bridge Ass'y. Includes 2 - 3.
-
2505070000 BridgeBridge
-
3505070001 BushingBushing
-
4572101000 Plastic HandlePlastic Handle
-
860506400 Ski handle kit (Yellow) (Olympic). Grand Touring 700.Ski handle kit (Yellow) (Olympic). Grand Touring 700.
-
5860501900 Carbide Runner Kit. Includes 5 - 6.Carbide Runner Kit. Includes 5 - 6.
-
6233601416 Elastic Locking Nut M10Elastic Locking Nut M10
-
7207085044 Hex. Screw M8 x 50Hex. Screw M8 x 50
-
8230080044 Hex. Screw M8 x 100Hex. Screw M8 x 100
-
9234081410 Flat Washer 8 mmFlat Washer 8 mm
-
10505070817 Sliding BlocSliding Bloc
-
11390911100 Pop Rivet 1/4Pop Rivet 1/4
-
12506151233 Ski StopperSki Stopper
-
13506133300 SpacerSpacer
-
14250000001 Hex. Screw M10 x 110Hex. Screw M10 x 110
-
15732900049 WasherWasher
-
16732610084 Elastic Flange Stop Nut M10Elastic Flange Stop Nut M10
-
17505070232 Proactive ControlProactive Control
-
18250000015 Socket Head Screw M5 x 25Socket Head Screw M5 x 25
-
19233251414 Elastic Flanged Stop Nut M5Elastic Flanged Stop Nut M5
-
20250000016 Phillips Screw #10-14 x 5/8''Phillips Screw #10-14 x 5/8''
-
21234061410 Flat Washer 6 mmFlat Washer 6 mm
-
22506151234 Ski LegSki Leg
-
23505070003 CushionCushion
-
24505070004 WasherWasher
-
25505070645 R.H. Swing ArmR.H. Swing Arm
-
505070646 L.H. Swing ArmL.H. Swing Arm
-
26371910400 CirclipCirclip
-
27572091300 CapCap
-
28570062200 DamperDamper
-
29503146700 WasherWasher
-
30506115800 CupCup
-
31234181401 Lock Washer 8 mmLock Washer 8 mm
-
32205582544 Socket Head Screw M8 x 25 (Scotch Grip)Socket Head Screw M8 x 25 (Scotch Grip)
-
33572045900 CapCap
-
34505070139 BushingBushing
-
35390402300 Pop Rivet 3/16Pop Rivet 3/16
-
36505070563 StabilisatorStabilisator
-
37505070819 Ball JointBall Joint
-
38505070847 Front ShockFront Shock
-
39207005544 Hex. Screw M10 x 55Hex. Screw M10 x 55
-
40233601416 Elastic Locking Nut M10Elastic Locking Nut M10
-
41518317518 R.H. Shock BracketR.H. Shock Bracket
-
518317519 L.H. Shock BracketL.H. Shock Bracket
-
42233281414 Elastic Flanged Stop Nut M8Elastic Flanged Stop Nut M8
-
43506151245 WasherWasher
-
44505070580 Upper Arm Ass'y. Includes 44 - 45.Upper Arm Ass'y. Includes 44 - 45.
-
45505070025 BushingBushing
-
46505070402 Lower Arm Ass'y. Includes 46 - 47.Lower Arm Ass'y. Includes 46 - 47.
-
47505070025 BushingBushing
-
48207005544 Hex. Screw M10 x 55Hex. Screw M10 x 55
-
49207605544 Hex. Flanged Screw M10 x 55Hex. Flanged Screw M10 x 55
-
50207009544 Hex. Screw M10 x 95Hex. Screw M10 x 95
-
51234001410 Flat Washer 10 mmFlat Washer 10 mm
-
52505070010 Upper Arm BracketUpper Arm Bracket
-
53505070011 Lower Arm BracketLower Arm Bracket
-
54390402200 Pop Rivet 3/16Pop Rivet 3/16
-
55408200700 Grease FittingGrease Fitting
-
56293550014 Grease, Super Lube #823-28Grease, Super Lube #823-28
-
57219700417 Synthetic Grease, 400gSynthetic Grease, 400g
-
58503183700 CamCam
-
59505070686 Painted SpringPainted Spring
-
60503187500 Spring GuideSpring Guide
-
61503140600 Spring StopperSpring Stopper
