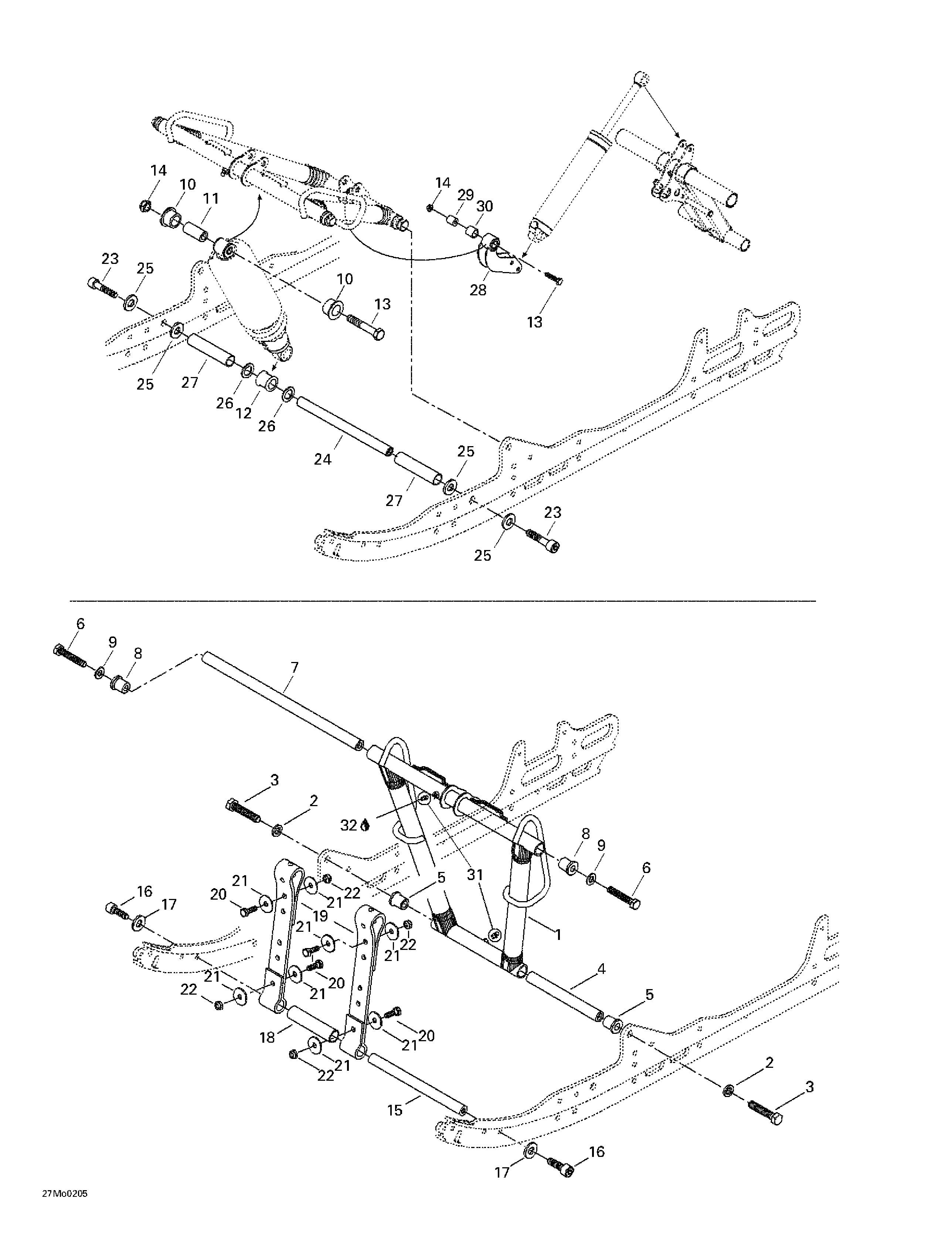

08- Front Arm для BRP Ski-Doo Grand Touring 500/600/700/800 - 2002
-
№АртикулНазвание
-
1503189292 Front ArmFront Arm
-
2503189276 Lock Washer 12 mmLock Washer 12 mm
-
3207226044 Hex. Screw M12 x 60 (Scotch Grip)Hex. Screw M12 x 60 (Scotch Grip)
-
4503189313 ShaftShaft
-
5503189323 CushionCushion
-
6207205544 Hex. Screw M10 x 55 (Scotch Grip)Hex. Screw M10 x 55 (Scotch Grip)
-
7503188938 ShaftShaft
-
8503189324 CushionCushion
-
9732900049 Flat Washer 10 mmFlat Washer 10 mm
-
10503189117 CushionCushion
-
11503189282 BushingBushing
-
12503189271 CushionCushion
-
13207005044 Hex. Screw M10 x 50Hex. Screw M10 x 50
-
14233601416 Elastic Stop Nut M10Elastic Stop Nut M10
-
15503189562 AxleAxle
-
16205503544 Socket Head Screw M10 x 35 (Scotch Grip)Socket Head Screw M10 x 35 (Scotch Grip)
-
17503189564 Washer 10 mmWasher 10 mm
-
18503189265 SpacerSpacer
-
19503189362 Stopper StrapStopper Strap
-
20207182544 Hex. Screw M8 x 25Hex. Screw M8 x 25
-
21224081301 Flat WasherFlat Washer
-
22232581414 Elastic Stop Nut M8Elastic Stop Nut M8
-
23205523544 Socket Head Screw M12 x 35 (Scotch Grip)Socket Head Screw M12 x 35 (Scotch Grip)
-
24503189272 Center Shock ShaftCenter Shock Shaft
-
25503189276 WasherWasher
-
26503189273 WasherWasher
-
27503189274 SpacerSpacer
-
28503189417 RockerRocker
-
29503189388 Rocker AxleRocker Axle
-
30503189626 CushionCushion
-
31408200700 Grease FittingGrease Fitting
-
32219700417 Synthetic Grease, 400gSynthetic Grease, 400g
