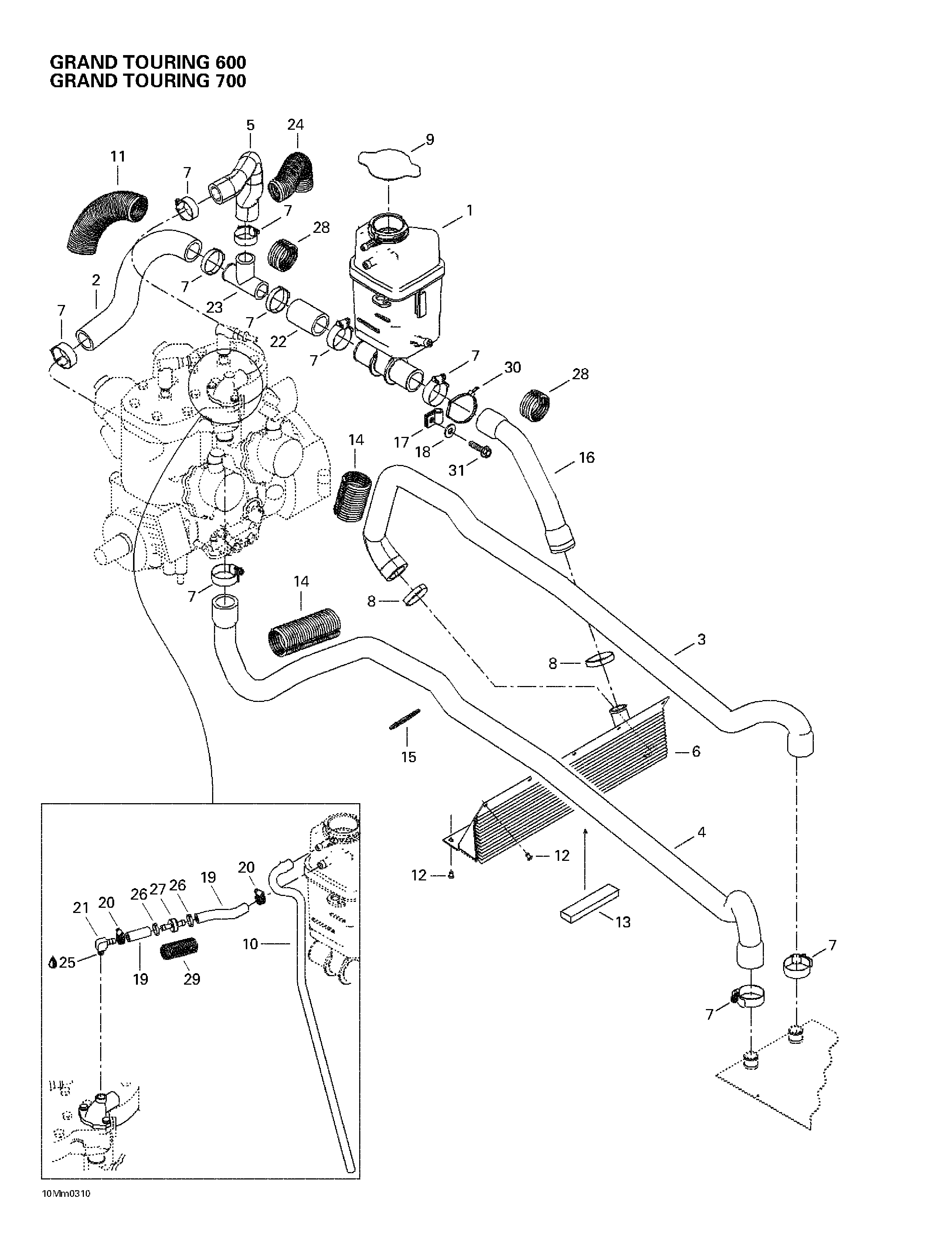

01- Cooling System (593) для BRP Ski-Doo Grand Touring 500/600/700 - 2003
-
№АртикулНазвание
-
1509000167 Tank coolant. Grand Touring 600. Grand Touring 700.Tank coolant. Grand Touring 600. Grand Touring 700.
-
2509000141 Engine inlet hose. Grand Touring 600. Grand Touring 700.Engine inlet hose. Grand Touring 600. Grand Touring 700.
-
3509000003 Radiator inlet hose. Grand Touring 600. Grand Touring 700.Radiator inlet hose. Grand Touring 600. Grand Touring 700.
-
4509000145 Radiator outlet hose. Grand Touring 600. Grand Touring 700.Radiator outlet hose. Grand Touring 600. Grand Touring 700.
-
5509000142 Hose. Grand Touring 600. Grand Touring 700.Hose. Grand Touring 600. Grand Touring 700.
-
6509000146 Front radiator. Grand Touring 600. Grand Touring 700.Front radiator. Grand Touring 600. Grand Touring 700.
-
7408800400 Tridon gear clamp. Grand Touring 600. Grand Touring 700.Tridon gear clamp. Grand Touring 600. Grand Touring 700.
-
8509000045 Oetiker gear clamp. Grand Touring 600. Grand Touring 700.Oetiker gear clamp. Grand Touring 600. Grand Touring 700.
-
9509000187 Pressure cap. Grand Touring 600. Grand Touring 700.Pressure cap. Grand Touring 600. Grand Touring 700.
-
10415110000 Polyurethane Hose 5.2 mm. Grand Touring 600. Grand Touring 700.Polyurethane Hose 5.2 mm. Grand Touring 600. Grand Touring 700.
-
11415084700 Protection Shield. Grand Touring 600. Grand Touring 700.Protection Shield. Grand Touring 600. Grand Touring 700.
-
12390402200 Pop rivet 3/16''. Grand Touring 600. Grand Touring 700.Pop rivet 3/16''. Grand Touring 600. Grand Touring 700.
-
13293200003 Gasket. Grand Touring 600. Grand Touring 700.Gasket. Grand Touring 600. Grand Touring 700.
-
14409902200 Tubing 25 mm. Grand Touring 600. Grand Touring 700.Tubing 25 mm. Grand Touring 600. Grand Touring 700.
-
15293750008 Tie-rap 350 mm. Grand Touring 600. Grand Touring 700.Tie-rap 350 mm. Grand Touring 600. Grand Touring 700.
-
16509000144 Radiator outlet hose. Grand Touring 600. Grand Touring 700.Radiator outlet hose. Grand Touring 600. Grand Touring 700.
-
17415052400 Open clamp. Grand Touring 600. Grand Touring 700.Open clamp. Grand Touring 600. Grand Touring 700.
-
18391301600 Washer. Grand Touring 600. Grand Touring 700.Washer. Grand Touring 600. Grand Touring 700.
-
19509000093 Hose 8 mm. Grand Touring 600. Grand Touring 700.Hose 8 mm. Grand Touring 600. Grand Touring 700.
-
20293650128 Tridon hose clamp. Grand Touring 600. Grand Touring 700.Tridon hose clamp. Grand Touring 600. Grand Touring 700.
-
21293700020 Elbow fitting 90 Deg. Grand Touring 600. Grand Touring 700.Elbow fitting 90 Deg. Grand Touring 600. Grand Touring 700.
-
22509000143 Hose. Grand Touring 600. Grand Touring 700.Hose. Grand Touring 600. Grand Touring 700.
-
23414619900 T fitting. Grand Touring 600. Grand Touring 700.T fitting. Grand Touring 600. Grand Touring 700.
-
24409902200 Tubing 25 mm. Grand Touring 600. Grand Touring 700.Tubing 25 mm. Grand Touring 600. Grand Touring 700.
-
25293800018 Loctite 592, Pipe sealant, 50 ml. Grand Touring 600. Grand Touring 700.Loctite 592, Pipe sealant, 50 ml. Grand Touring 600. Grand Touring 700.
-
26293650053 Crimp Clamp. Grand Touring 600. Grand Touring 700.Crimp Clamp. Grand Touring 600. Grand Touring 700.
-
27509000153 Check valve. Grand Touring 600. Grand Touring 700.Check valve. Grand Touring 600. Grand Touring 700.
-
28415084700 Protection Shield. Grand Touring 600. Grand Touring 700.Protection Shield. Grand Touring 600. Grand Touring 700.
-
29415080000 Tubing 16mm. Grand Touring 600. Grand Touring 700.Tubing 16mm. Grand Touring 600. Grand Touring 700.
-
30509000165 Tie-rap. Grand Touring 600. Grand Touring 700.Tie-rap. Grand Touring 600. Grand Touring 700.
-
31210252040 Hex flanged forming screw M5 x 20. Grand Touring 600. Grand Touring 700.Hex flanged forming screw M5 x 20. Grand Touring 600. Grand Touring 700.
