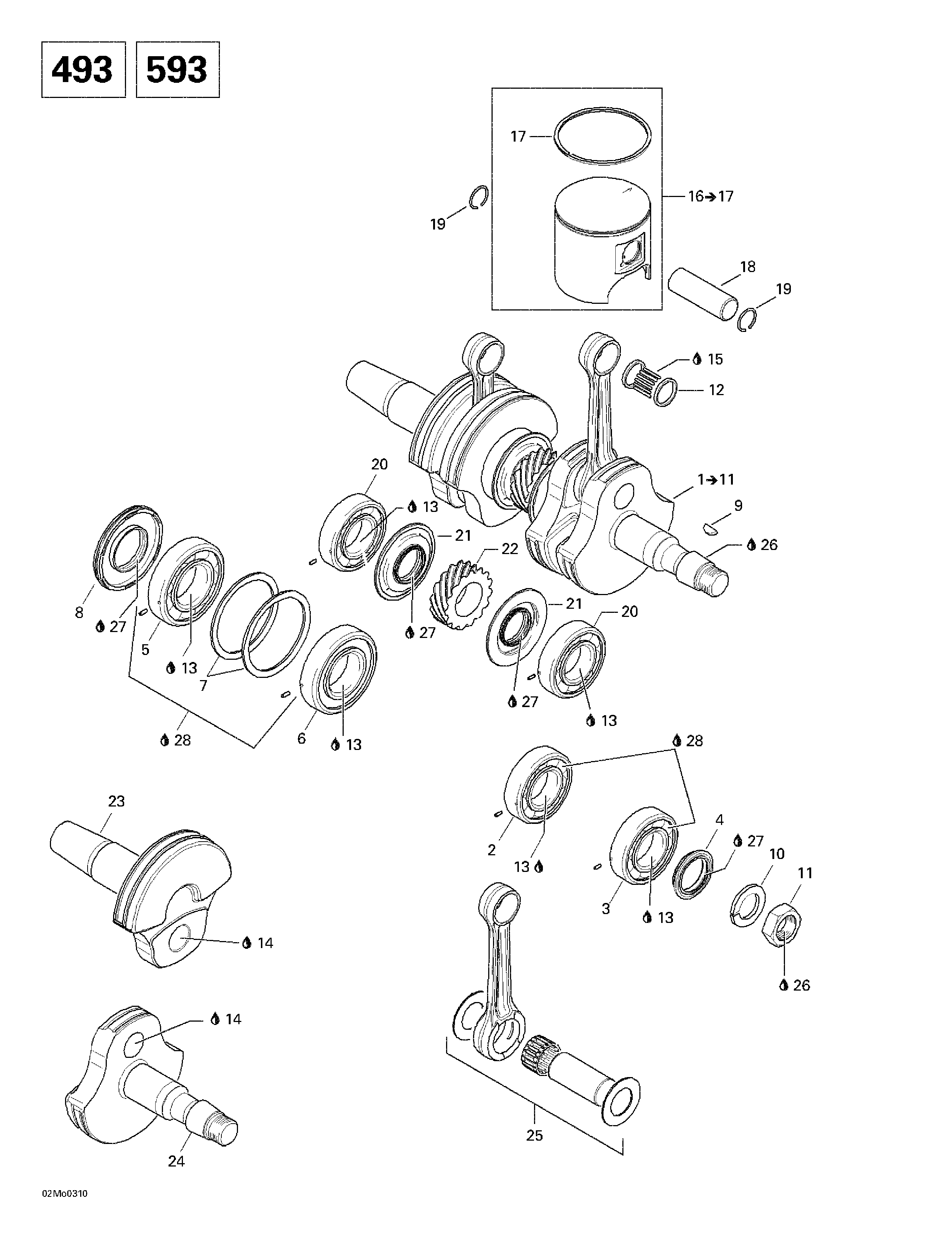

01- Crankshaft And Pistons (493) для BRP Ski-Doo Grand Touring 500/600/700 - 2003
-
№АртикулНазвание
-
1420888465 Crankshaft Ass'y. Includes 1 - 11. Grand Touring 500.Crankshaft Ass'y. Includes 1 - 11. Grand Touring 500.
-
420888757 Crankshaft Ass'y. Grand Touring 600.Crankshaft Ass'y. Grand Touring 600.
-
2420832595 Ball Bearing. Grand Touring 500. Grand Touring 600.Ball Bearing. Grand Touring 500. Grand Touring 600.
-
3420832590 Ball Bearing 6206. Grand Touring 500. Grand Touring 600.Ball Bearing 6206. Grand Touring 500. Grand Touring 600.
-
4420931792 Oil Seal. Grand Touring 500. Grand Touring 600.Oil Seal. Grand Touring 500. Grand Touring 600.
-
5420832575 Ball Bearing 6207. Grand Touring 500. Grand Touring 600.Ball Bearing 6207. Grand Touring 500. Grand Touring 600.
-
6420832635 Ball Bearing 6207. Grand Touring 500. Grand Touring 600.Ball Bearing 6207. Grand Touring 500. Grand Touring 600.
-
7420927710 Retaining Disk. Grand Touring 500. Grand Touring 600.Retaining Disk. Grand Touring 500. Grand Touring 600.
-
8290831952 Oil Seal. Grand Touring 500. Grand Touring 600.Oil Seal. Grand Touring 500. Grand Touring 600.
-
9420246015 Woodfuff Key. Grand Touring 500. Grand Touring 600.Woodfuff Key. Grand Touring 500. Grand Touring 600.
-
10420945759 Lock Washer 22 mm. Grand Touring 500. Grand Touring 600.Lock Washer 22 mm. Grand Touring 500. Grand Touring 600.
-
11420842234 Hex. Nut M22. Grand Touring 500. Grand Touring 600.Hex. Nut M22. Grand Touring 500. Grand Touring 600.
-
12420832320 Needle Bearing. Grand Touring 500.Needle Bearing. Grand Touring 500.
-
420832425 Needle Bearing. Grand Touring 600.Needle Bearing. Grand Touring 600.
-
13293800070 Loctite 767, Antiseize Lubricant, 8 oz. Grand Touring 500. Grand Touring 600.Loctite 767, Antiseize Lubricant, 8 oz. Grand Touring 500. Grand Touring 600.
-
14413711400 Loctite 648, 10 ml. Grand Touring 500. Grand Touring 600.Loctite 648, 10 ml. Grand Touring 500. Grand Touring 600.
-
15413707000 Molykote III. Grand Touring 500. Grand Touring 600.Molykote III. Grand Touring 500. Grand Touring 600.
-
16420888445 Piston Ass'y (1 Ring 69.40 mm). Includes 16 - 17. Grand Touring 500.Piston Ass'y (1 Ring 69.40 mm). Includes 16 - 17. Grand Touring 500.
-
420889170 Piston Ass'y (1 Ring 75.88 mm). Grand Touring 600.Piston Ass'y (1 Ring 75.88 mm). Grand Touring 600.
-
420888446 Oversize Piston Ass'y (1 Ring 69.65 mm). Grand Touring 500.Oversize Piston Ass'y (1 Ring 69.65 mm). Grand Touring 500.
-
420889171 Oversize Piston Ass'y (1 Ring 76.13mm). Grand Touring 600.Oversize Piston Ass'y (1 Ring 76.13mm). Grand Touring 600.
-
17420815043 Semi-Trapez Ring 69.50 mm. Grand Touring 500.Semi-Trapez Ring 69.50 mm. Grand Touring 500.
-
420815156 Oversize Semi-Trapez Ring 76.25/70.65 mm. Grand Touring 600.Oversize Semi-Trapez Ring 76.25/70.65 mm. Grand Touring 600.
-
420815044 Oversize Semi-Trapez Ring 69.75 mm. Grand Touring 500.Oversize Semi-Trapez Ring 69.75 mm. Grand Touring 500.
-
420815155 Semi-trapez Ring 76 mm. Grand Touring 600.Semi-trapez Ring 76 mm. Grand Touring 600.
-
18420916186 Gudgeon Pin. Grand Touring 500.Gudgeon Pin. Grand Touring 500.
-
420916410 Gudgeon Pin. Grand Touring 600.Gudgeon Pin. Grand Touring 600.
-
19420945735 Piston Circlip. Grand Touring 500.Piston Circlip. Grand Touring 500.
-
420845106 Piston Circlip. Grand Touring 600.Piston Circlip. Grand Touring 600.
-
20420832590 Ball Bearing 6206. Grand Touring 500. Grand Touring 600.Ball Bearing 6206. Grand Touring 500. Grand Touring 600.
-
21420931940 Oil Seal. Grand Touring 500. Grand Touring 600.Oil Seal. Grand Touring 500. Grand Touring 600.
-
22420834350 Central Gear 15 Teeth. Grand Touring 500. Grand Touring 600.Central Gear 15 Teeth. Grand Touring 500. Grand Touring 600.
-
23420818666 Crankshaft (PTO side). Grand Touring 500. Grand Touring 600.Crankshaft (PTO side). Grand Touring 500. Grand Touring 600.
-
24420818693 Crankshaft (MAG side). Grand Touring 500. Grand Touring 600.Crankshaft (MAG side). Grand Touring 500. Grand Touring 600.
-
25420888463 Rod Repair Kit (MAG side). Grand Touring 500.Rod Repair Kit (MAG side). Grand Touring 500.
-
420888753 Rod Repair Kit (MAG side). Grand Touring 600.Rod Repair Kit (MAG side). Grand Touring 600.
-
420888464 Rod Repair Kit (PTO side). Grand Touring 500.Rod Repair Kit (PTO side). Grand Touring 500.
-
420888754 Rod Repair Kit (PTO side). Grand Touring 600.Rod Repair Kit (PTO side). Grand Touring 600.
-
26293800060 Loctite 243, 10 ml. Grand Touring 500. Grand Touring 600.Loctite 243, 10 ml. Grand Touring 500. Grand Touring 600.
-
27420899271 Petamo Grease, GHY133N, 400 g. Grand Touring 500. Grand Touring 600.Petamo Grease, GHY133N, 400 g. Grand Touring 500. Grand Touring 600.
-
28293550021 Isoflex Grease, 45 g. Grand Touring 500. Grand Touring 600.Isoflex Grease, 45 g. Grand Touring 500. Grand Touring 600.
