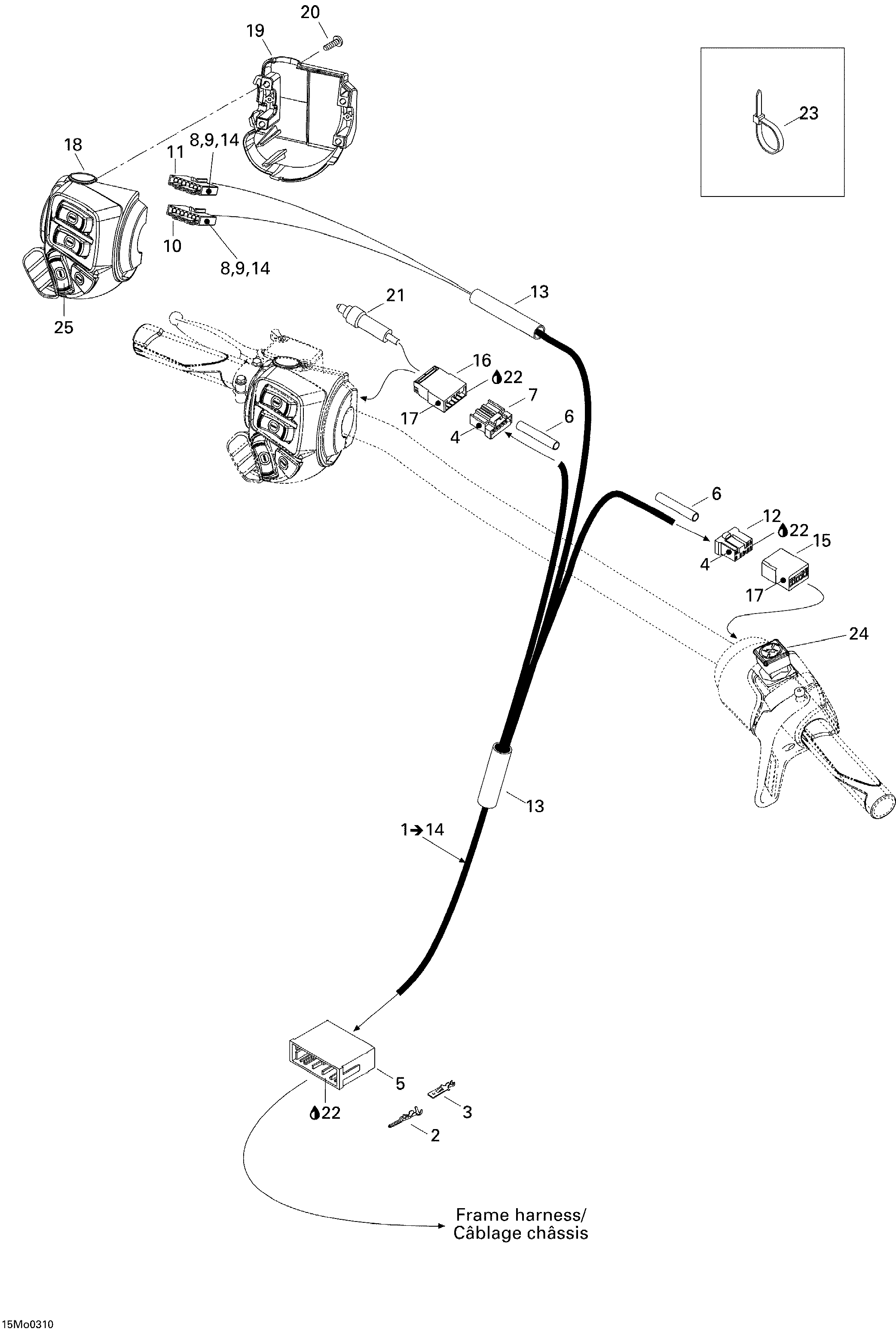

07- Steering System для BRP Ski-Doo Grand Touring 500/600/700 - 2003
-
№АртикулНазвание
-
1515175844 Steering harness (SPORT). Includes 1 - 14.Steering harness (SPORT). Includes 1 - 14.
-
515175897 Steering harness (SE). Grand Touring 600. Grand Touring 700.Steering harness (SE). Grand Touring 600. Grand Touring 700.
-
2515175232 Male terminalMale terminal
-
3515175273 Male terminalMale terminal
-
4515175231 Female terminalFemale terminal
-
5515175352 Male terminal housing (13 circuits)Male terminal housing (13 circuits)
-
6415079000 Tubing 10 mmTubing 10 mm
-
7515175543 Female terminal housing (6 circuits)Female terminal housing (6 circuits)
-
8515175808 Female terminalFemale terminal
-
9515175809 Lock (8 circuits)Lock (8 circuits)
-
10515175807 Female terminal housing (8 circuits)Female terminal housing (8 circuits)
-
11515175810 Female terminal housing (8 circuits)Female terminal housing (8 circuits)
-
12515175819 Female terminal housing (8 circuits)Female terminal housing (8 circuits)
-
13515175830 Low temperature tubing 1/2''Low temperature tubing 1/2''
-
14515175941 Female TerminalFemale Terminal
-
15515175817 Male terminal housing (8 circuits)Male terminal housing (8 circuits)
-
16515175662 Male terminal housing (6 circuits)Male terminal housing (6 circuits)
-
17515175232 Male terminalMale terminal
-
18515175774 L.h. switch housing (SE-AIR). Grand Touring 600. Grand Touring 700.L.h. switch housing (SE-AIR). Grand Touring 600. Grand Touring 700.
-
515175789 L.h. switch housing (SPORT, SE)L.h. switch housing (SPORT, SE)
-
19515175926 Switch housing plateSwitch housing plate
-
20250000100 Screw #8-18Screw #8-18
-
21507032366 MicroswitchMicroswitch
-
22293550004 Dielectric Grease, 150 gDielectric Grease, 150 g
-
23414115200 Tie Rap 180 mmTie Rap 180 mm
-
293750008 Tie Rap 350 mmTie Rap 350 mm
-
24512059751 Kill SwitchKill Switch
-
25515175780 SwitchSwitch
