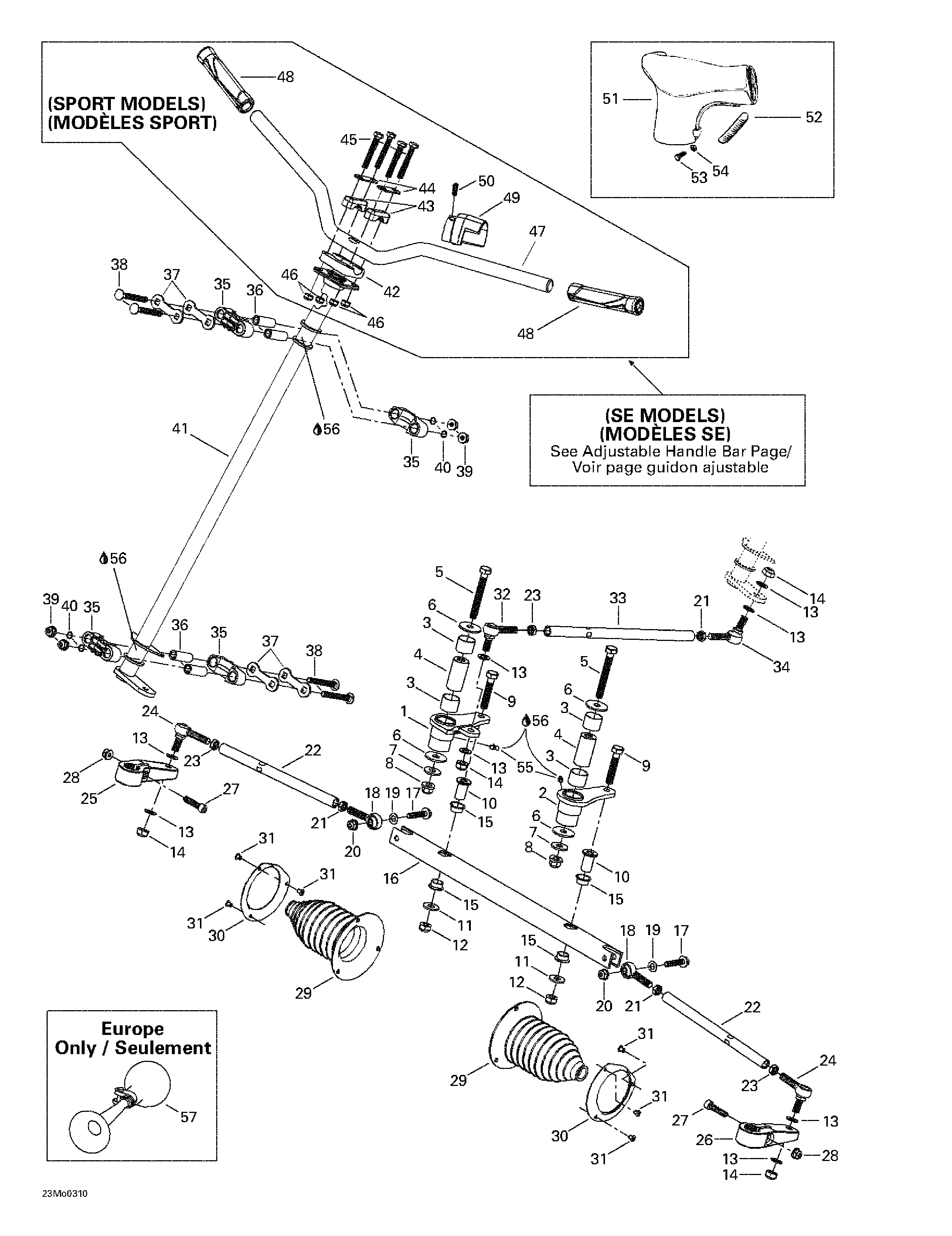

07- Steering System для BRP Ski-Doo Grand Touring 500/600/700 - 2003
-
№АртикулНазвание
-
1506151506 R.h. swivel armR.h. swivel arm
-
2506151623 L.h. swivel armL.h. swivel arm
-
3506149900 Swivel bushingSwivel bushing
-
4506150100 Swivel pivotSwivel pivot
-
5207008086 Hex screw M10 x 80Hex screw M10 x 80
-
6506150000 Washer M10Washer M10
-
7506151251 WasherWasher
-
8732610084 Flanged nut M10Flanged nut M10
-
9207005544 Hex screw M10 x 55Hex screw M10 x 55
-
10506147300 Pivot barPivot bar
-
11224002251 Flat washerFlat washer
-
12233601416 Self stop elastic nut M10Self stop elastic nut M10
-
13503175800 WasherWasher
-
14232501416 Hex elastic nut M10Hex elastic nut M10
-
15506150200 Swivel bushingSwivel bushing
-
16506147000 Swivel barSwivel bar
-
17207684044 Hex flanged screw M8 x 40Hex flanged screw M8 x 40
-
18506151496 L.h. ball jointL.h. ball joint
-
19506151252 WasherWasher
-
20233281414 Hex flanged elastic nut M8Hex flanged elastic nut M8
-
21250100016 L.h. hex jam nut M10L.h. hex jam nut M10
-
22506151374 Tie rodTie rod
-
23732610010 R.h. hex jam nut M10R.h. hex jam nut M10
-
24506151491 Ball jointBall joint
-
25506145800 R.h. steering armR.h. steering arm
-
26506145900 L.h. steering armL.h. steering arm
-
27205083544 Socket screw M8 x 35Socket screw M8 x 35
-
28233281414 Hex flanged elastic nut M8Hex flanged elastic nut M8
-
29570070500 Tie rod capTie rod cap
-
30506151100 Retainer ringRetainer ring
-
31390402300 Pop rivet 3/16''Pop rivet 3/16''
-
32506151492 R.h. ball jointR.h. ball joint
-
33506151375 Tie rodTie rod
-
34506151495 L.h. ball jointL.h. ball joint
-
35506150400 Half housingHalf housing
-
36506150500 Housing bushingHousing bushing
-
37506150600 Stopper plateStopper plate
-
38207787044 Carriage bolt M8 x 70Carriage bolt M8 x 70
-
39233281414 Hex flanged elastic nut M8Hex flanged elastic nut M8
-
40506151140 O-ringO-ring
-
41506147100 Main tube (SPORT)Main tube (SPORT)
-
506151429 Main tube (SE). Grand Touring 600. Grand Touring 700.Main tube (SE). Grand Touring 600. Grand Touring 700.
-
42277000142 Steering clamp (SPORT)Steering clamp (SPORT)
-
43506151622 Steering support (SPORT)Steering support (SPORT)
-
44506151196 Reinforcement (SPORT)Reinforcement (SPORT)
-
45207085544 Hex screw M8 x 55 (SPORT)Hex screw M8 x 55 (SPORT)
-
46232581414 Hex elastic nut M8 (SPORT)Hex elastic nut M8 (SPORT)
-
47506151687 Handle bar (SPORT)Handle bar (SPORT)
-
48506151714 Grip (SPORT)Grip (SPORT)
-
49506151566 Adaptor (SPORT)Adaptor (SPORT)
-
50206581244 Socket Set Screw M8 x 12 (SPORT)Socket Set Screw M8 x 12 (SPORT)
-
51506151597 Steering pad (SPORT)Steering pad (SPORT)
-
52572106200 Keyway (R.H.) (SPORT)Keyway (R.H.) (SPORT)
-
506151661 Keyway (L.H.) (SPORT)Keyway (L.H.) (SPORT)
-
53208652044 Screw M5 x 20 (SPORT)Screw M5 x 20 (SPORT)
-
54233251414 Elastic Flanged Nut M5 (SPORT)Elastic Flanged Nut M5 (SPORT)
-
55408200700 Grease fittingGrease fitting
-
56219700417 Synthetic Grease, 400gSynthetic Grease, 400g
-
57415040700 Horn (Europe)Horn (Europe)
