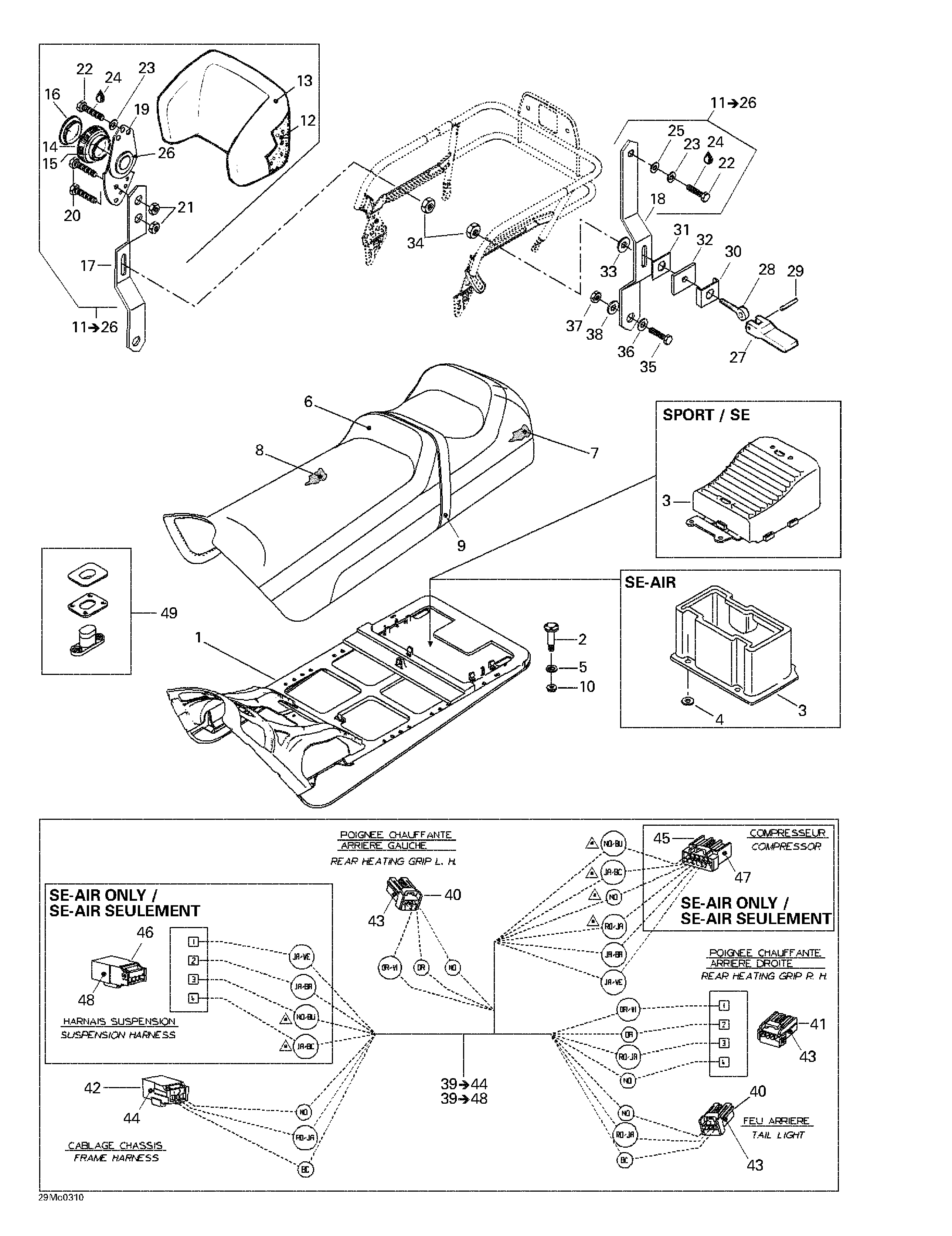

09- Seat, Backrest для BRP Ski-Doo Grand Touring 500/600/700 - 2003

№

Артикул

Название
1

510003739 Sub-Seat (SPORT,SE)

Sub-Seat (SPORT,SE)

0 ₽
510003972 Sub-Seat (SE-AIR). Grand Touring 600. Grand Touring 700.

Sub-Seat (SE-AIR). Grand Touring 600. Grand Touring 700.

0 ₽
2

732601221 > Bolt

> Bolt

910 ₽
3

510003751 Rear Trunk (SPORT,SE)

Rear Trunk (SPORT,SE)

0 ₽
572106300 Rear Trunk (SE-AIR). Grand Touring 600. Grand Touring 700.

Rear Trunk (SE-AIR). Grand Touring 600. Grand Touring 700.

0 ₽
4

517297900 Flat Washer (SE-AIR). Grand Touring 600. Grand Touring 700.

Flat Washer (SE-AIR). Grand Touring 600. Grand Touring 700.

130 ₽
5

732610072 Push Nut

Push Nut

1 270 ₽
6

510004086 Seat Cover (Black) (SPORT, SE)

Seat Cover (Black) (SPORT, SE)

0 ₽
510004092 Seat Cover (Autumn Red) (SPORT,SE)

Seat Cover (Autumn Red) (SPORT,SE)

0 ₽
510004090 Seat Cover (Black) (SE-AIR). Grand Touring 600. Grand Touring 700.

Seat Cover (Black) (SE-AIR). Grand Touring 600. Grand Touring 700.

0 ₽
510004088 Seat Cover (Autumn Red) (SE-AIR). Grand Touring 600. Grand Touring 700.

Seat Cover (Autumn Red) (SE-AIR). Grand Touring 600. Grand Touring 700.

0 ₽
7

510003741 Seat Foam (Side)

Seat Foam (Side)

0 ₽
8

510003752 Seat Foam (Top) (SPORT, SE)

Seat Foam (Top) (SPORT, SE)

0 ₽
510003982 Seat Foam (Top) (SE-AIR). Grand Touring 600. Grand Touring 700.

Seat Foam (Top) (SE-AIR). Grand Touring 600. Grand Touring 700.

0 ₽
9

510003753 Seat Belt

Seat Belt

0 ₽
10

233261414 Elastic Flanged Stop Nut M6

Elastic Flanged Stop Nut M6

490 ₽
11

510004093 Backrest Ass'y. Includes 11 - 26.

Backrest Ass'y. Includes 11 - 26.

0 ₽
12

414821200 Backrest Foam

Backrest Foam

19 470 ₽
13

510004094 Backrest Cover

Backrest Cover

0 ₽
14

414820900 Tiller Handle

Tiller Handle

1 500 ₽
15

415015500 Strip

Strip

800 ₽
16

414821000 Cap

Cap

650 ₽
17

517296400 R.H. Arm

R.H. Arm

0 ₽
18

517296500 L.H. Arm

L.H. Arm

2 620 ₽
19

414813300 Recliner

Recliner

11 600 ₽
20

207182544 Hex Screw M8 x 25

Hex Screw M8 x 25

320 ₽
21

232581414 Elastic Stop Nut M8

Elastic Stop Nut M8

210 ₽
22

207182044 Hex Screw M8 x 20

Hex Screw M8 x 20

70 ₽
23

234181401 Lock Washer 8 mm

Lock Washer 8 mm

340 ₽
24

293800060 Loctite 243, 10 ml

Loctite 243, 10 ml

2 760 ₽
25

224081201 Flat Washer

Flat Washer

330 ₽
26

517250500 Cap

Cap

0 ₽
27

572038200 Lock Lever

Lock Lever

990 ₽
28

517250100 Eye Bolt

Eye Bolt

1 730 ₽
29

414821400 Pin

Pin

590 ₽
30

517257300 Guide

Guide

800 ₽
31

517251300 Spacer

Spacer

250 ₽
32

570027400 Rubber Shim

Rubber Shim

210 ₽
33

414819500 Washer

Washer

530 ₽
34

517250000 Nut

Nut

0 ₽
35

207182584 Screw M8 x 25

Screw M8 x 25

190 ₽
36

234081670 Washer 8 mm

Washer 8 mm

70 ₽
37

232581414 Elastic Stop Nut M8

Elastic Stop Nut M8

210 ₽
38

414819600 Washer

Washer

200 ₽
40

515175495 Female Terminal Housing (3 Circuits)

Female Terminal Housing (3 Circuits)

5 780 ₽
42

515175494 Male Terminal Housing (3 Circuits)

Male Terminal Housing (3 Circuits)

1 510 ₽
43

515175231 Female Terminal

Female Terminal

420 ₽
44

515175232 Male Terminal

Male Terminal

540 ₽
45

515175543 Female Terminal Housing (6. Grand Touring 700. .

Female Terminal Housing (6. Grand Touring 700. .

730 ₽
46

515175846 Male Terminal Housing (4. Grand Touring 700. .

Male Terminal Housing (4. Grand Touring 700. .

730 ₽
47

515175231 Female Terminal. Grand Touring 700. .

Female Terminal. Grand Touring 700. .

420 ₽
48

515175232 Male Terminal. Grand Touring 700. .

Male Terminal. Grand Touring 700. .

540 ₽
49

414728000 Seat Buckle

Seat Buckle

1 250 ₽
