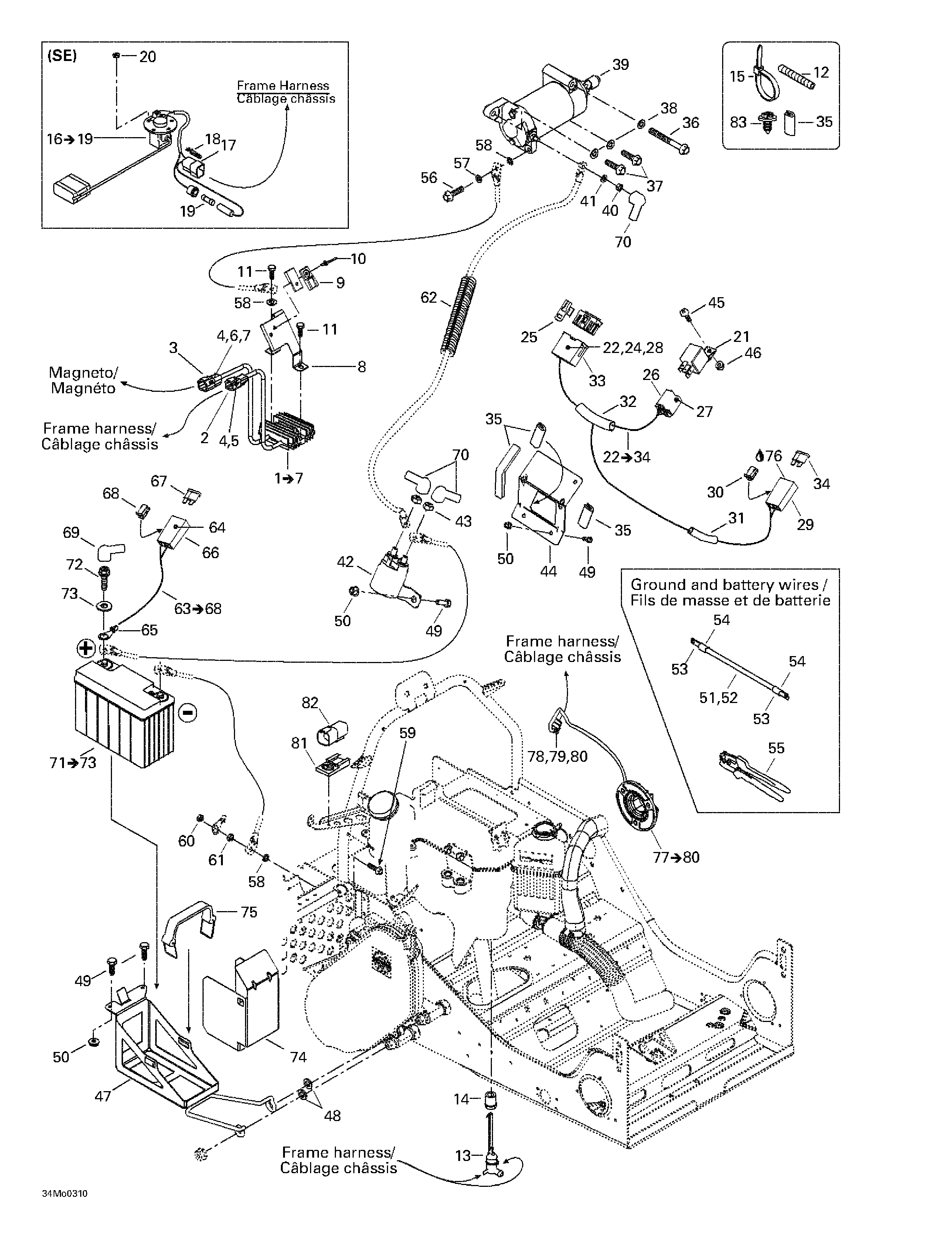

10- Battery для BRP Ski-Doo Grand Touring 500/600/700 - 2003
-
№АртикулНазвание
-
1515175968 Voltage regulator. Includes 1 - 7.Voltage regulator. Includes 1 - 7.
-
2278001674 M?le terminal housing (2 circuits)M?le terminal housing (2 circuits)
-
3278001477 Female terminal housing (4 circuits)Female terminal housing (4 circuits)
-
4515175568 Male TerminalMale Terminal
-
5278001672 Male lock (2 circuits)Male lock (2 circuits)
-
6278001478 (Female) Secondary Lock (4 Circuits) (Deutsch)(Female) Secondary Lock (4 Circuits) (Deutsch)
-
7293000052 CapCap
-
8515175842 Housing supportHousing support
-
9270000141 ClipClip
-
11290841543 Taptite screw M6 x 25Taptite screw M6 x 25
-
12409901800 Tubing 13 mmTubing 13 mm
-
415079900 Tubing 10 mmTubing 10 mm
-
515175332 Low Temp Tubing 1/4''Low Temp Tubing 1/4''
-
515175314 Low Temp Housing 5/8''Low Temp Housing 5/8''
-
13414681800 Level switchLevel switch
-
14414681900 FloatFloat
-
15293750001 Tie-rap 94 mmTie-rap 94 mm
-
293750002 Tie-rap 130 mmTie-rap 130 mm
-
293750009 Tie-rap 160 mmTie-rap 160 mm
-
414115200 Tie-rap 180 mmTie-rap 180 mm
-
293750008 Tie-rap 350 mmTie-rap 350 mm
-
16515175170 Fuel Level Sensor (SE). Includes 16 - 19. Grand Touring 600. Grand Touring 700.Fuel Level Sensor (SE). Includes 16 - 19. Grand Touring 600. Grand Touring 700.
-
17409204500 Male Terminal Housing (2 Circuits). Grand Touring 600. Grand Touring 700.Male Terminal Housing (2 Circuits). Grand Touring 600. Grand Touring 700.
-
18409203900 Male Terminal. Grand Touring 600. Grand Touring 700.Male Terminal. Grand Touring 600. Grand Touring 700.
-
19410112400 Fuse 0.25 Amp. Grand Touring 600. Grand Touring 700.Fuse 0.25 Amp. Grand Touring 600. Grand Touring 700.
-
20232551414 Elastic Stop Nut M5 (SE). Grand Touring 600. Grand Touring 700.Elastic Stop Nut M5 (SE). Grand Touring 600. Grand Touring 700.
-
21410113200 RelayRelay
-
22515175721 Configuration harness. Includes 22 - 34.Configuration harness. Includes 22 - 34.
-
23515175232 M?le terminalM?le terminal
-
24515175273 M?le terminalM?le terminal
-
25515175283 Housing supportHousing support
-
26409209900 Female terminal housing (5 circuits)Female terminal housing (5 circuits)
-
27561503100 Female terminalFemale terminal
-
28409011600 Female terminalFemale terminal
-
29409004000 Fuse holderFuse holder
-
30409014200 ClipClip
-
31515175442 Tubing 6 mmTubing 6 mm
-
32409901800 Tubing 13 mmTubing 13 mm
-
33515175720 M?le terminal housing (11 circuits)M?le terminal housing (11 circuits)
-
34278000344 Fuse (5 amperes)Fuse (5 amperes)
-
35271000110 Protection trimProtection trim
-
36207587544 Hex flanged screw M8 x 75 (scotch grip)Hex flanged screw M8 x 75 (scotch grip)
-
37207583044 Hex Flanged Screw M8 x 30 (Scotch Grip)Hex Flanged Screw M8 x 30 (Scotch Grip)
-
38250200008 Flat washer M8Flat washer M8
-
39515175843 StarterStarter
-
40232561414 Hex elastic nut M6Hex elastic nut M6
-
41234061410 Flat washer M6Flat washer M6
-
42710000111 Starter relayStarter relay
-
43232561414 Hex elastic nut M6Hex elastic nut M6
-
44515175907 Fuse holder supportFuse holder support
-
45208651241 Phillips screw M5 x 12Phillips screw M5 x 12
-
46233251414 Hex flanged elastic nut M5Hex flanged elastic nut M5
-
47515175718 Battery supportBattery support
-
48503175800 WasherWasher
-
49207151444 Hex screw M5 x 14Hex screw M5 x 14
-
50233251414 Hex flanged elastic nut M5Hex flanged elastic nut M5
-
51278001680 Ground cable battery (no 6) (meter)Ground cable battery (no 6) (meter)
-
52278001690 Red cable battery (no 6) (meter)Red cable battery (no 6) (meter)
-
53278001682 Flat terminal (small hole)Flat terminal (small hole)
-
278001683 Terminal 45 Deg. (small hole)Terminal 45 Deg. (small hole)
-
278001684 Terminal 90 Deg. (small hole)Terminal 90 Deg. (small hole)
-
278001685 Flat terminal (big hole)Flat terminal (big hole)
-
278001686 Terminal 45 Deg. (big hole)Terminal 45 Deg. (big hole)
-
278001687 Terminal 90 Deg. (big hole)Terminal 90 Deg. (big hole)
-
278001688 Flat terminalFlat terminal
-
278001776 Terminal 30 Deg. (2 holes)Terminal 30 Deg. (2 holes)
-
54278001692 Heat shrinkHeat shrink
-
55529035730 Crimp plierCrimp plier
-
56207361644 Hex flanged screw M6 x 16 (scotch grip)Hex flanged screw M6 x 16 (scotch grip)
-
57234061410 Flat washer M6Flat washer M6
-
58250200000 Washer M6Washer M6
-
59207662044 Hex. Flanged Screw M6 X 20Hex. Flanged Screw M6 X 20
-
60233261414 Hex flanged elastic nut M6Hex flanged elastic nut M6
-
61232061414 Hex nut M6Hex nut M6
-
62409901700 Tubing 9 mmTubing 9 mm
-
63515175489 Battery fuse wire. Includes 63 - 68.Battery fuse wire. Includes 63 - 68.
-
64409004200 Female terminalFemale terminal
-
65278000992 Ring terminalRing terminal
-
66409004000 Fuse holderFuse holder
-
67410917200 Fuse (30 amperes)Fuse (30 amperes)
-
68409014200 ClipClip
-
69570151000 Protection capProtection cap
-
70278001771 Battery wire capBattery wire cap
-
71515175642 Battery. Includes 71 - 73.Battery. Includes 71 - 73.
-
72207151260 Hex screw M6 x 12Hex screw M6 x 12
-
73234061410 Flat washer M6Flat washer M6
-
74515175643 DeflectorDeflector
-
75515175475 Battery strapBattery strap
-
76293550004 Dielectric Grease, 150 gDielectric Grease, 150 g
-
77504152173 Speed Sensor Flange. Includes 77 - 80.Speed Sensor Flange. Includes 77 - 80.
-
78515175671 Female Terminal Housing (3 Circuits)Female Terminal Housing (3 Circuits)
-
79515175676 Female Lock (3 Circuits)Female Lock (3 Circuits)
-
80278000632 Female TerminalFemale Terminal
-
81270000141 ClipClip
-
82515175668 Female terminal housing (6 circuits)Female terminal housing (6 circuits)
-
83293730018 Mount dartMount dart
