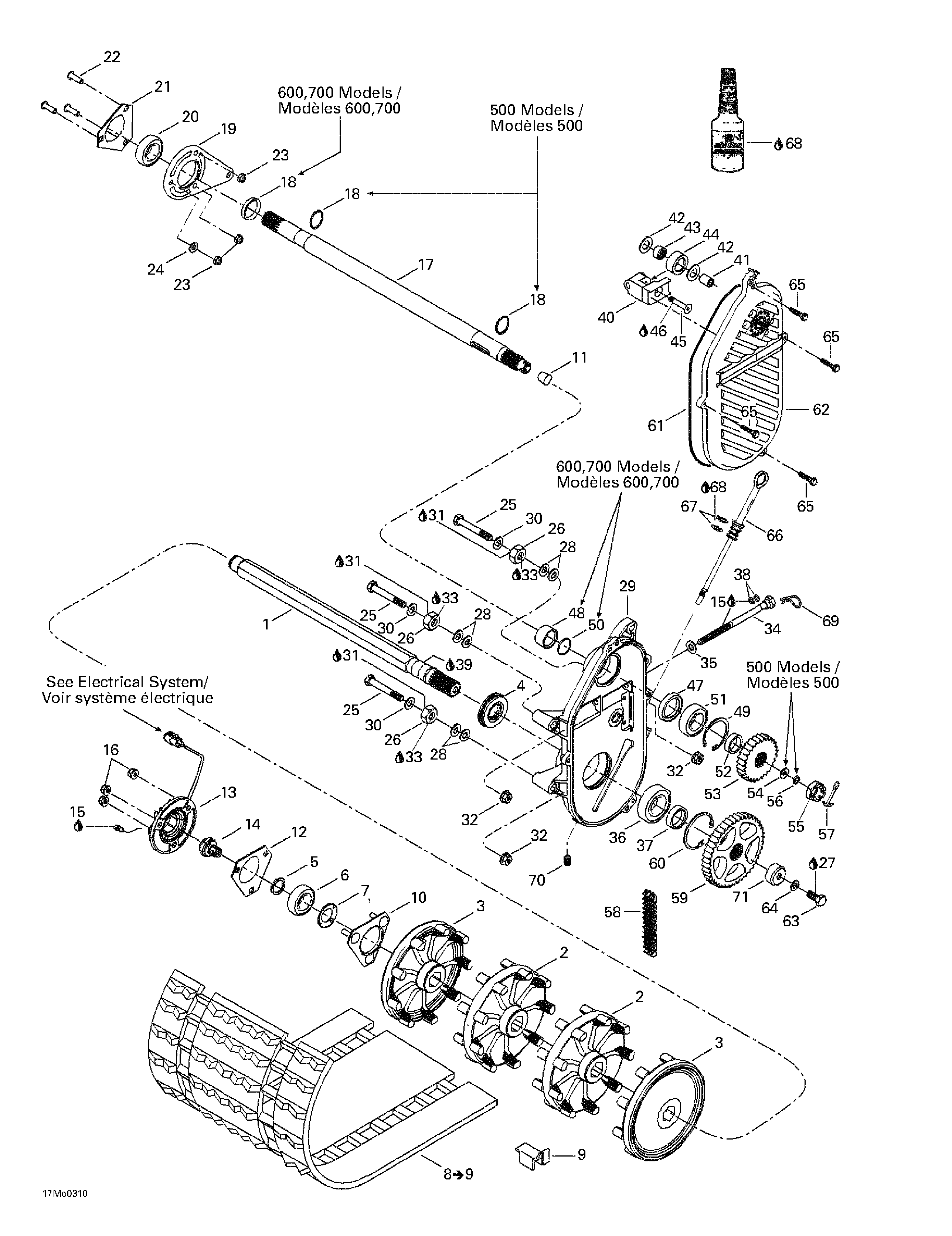

05- Chaincase для BRP Ski-Doo Grand Touring 500/600/700 - 2003

№

Артикул

Название
1

501027400 Drive axle

Drive axle

27 720 ₽
2

504151781 Sprocket(9 teeth)

Sprocket(9 teeth)

4 600 ₽
3

504151782 Half sprocket (9 teeth)

Half sprocket (9 teeth)

3 950 ₽
4

504151918 Oil seal ass'y

Oil seal ass'y

7 740 ₽
5

371910200 Circlip

Circlip

1 090 ₽
6

504152009 Ball bearing

Ball bearing

0 ₽
7

501017400 Bearing protector

Bearing protector

2 230 ₽
8

504151935 Track ass'y (15''x136'' 0.88''). Includes 8 - 9.

Track ass'y (15''x136'' 0.88''). Includes 8 - 9.

0 ₽
504152061 Track ass'y (15''X136''X1.000'') EUROPE. Grand Touring 500. Grand Touring 600.

Track ass'y (15''X136''X1.000'') EUROPE. Grand Touring 500. Grand Touring 600.

0 ₽
9

500003400 Guide cleat

Guide cleat

0 ₽
10

504151860 Bearing housing

Bearing housing

1 040 ₽
11

414784800 Cork. Grand Touring 600. Grand Touring 700.

Cork. Grand Touring 600. Grand Touring 700.

290 ₽
12

501025000 Flange

Flange

1 190 ₽
13

504152173 Speed flange

Speed flange

24 750 ₽
14

504152040 Magnetic adaptor

Magnetic adaptor

15 790 ₽
15

219700417 Synthetic Grease, 400g

Synthetic Grease, 400g

0 ₽
16

233281414 Hex. Elastic flanged nut M8

Hex. Elastic flanged nut M8

490 ₽
17

501026300 Counter shaft. Grand Touring 600. Grand Touring 700.

Counter shaft. Grand Touring 600. Grand Touring 700.

37 490 ₽
504151858 Counter shaft. Grand Touring 500.

Counter shaft. Grand Touring 500.

37 490 ₽
18

371910000 Circlip. Grand Touring 500.

Circlip. Grand Touring 500.

100 ₽
504149100 Spacer. Grand Touring 600. Grand Touring 700.

Spacer. Grand Touring 600. Grand Touring 700.

990 ₽
19

080044200 Spacer

Spacer

1 930 ₽
20

504152008 Ball bearing. Grand Touring 500.

Ball bearing. Grand Touring 500.

3 450 ₽
504152026 Ball bearing. Grand Touring 600. Grand Touring 700.

Ball bearing. Grand Touring 600. Grand Touring 700.

0 ₽
21

501025000 Flange

Flange

1 190 ₽
22

205482546 Socket Screw M8 x 25

Socket Screw M8 x 25

660 ₽
23

232581414 Hex elastic nut M8

Hex elastic nut M8

210 ₽
24

234081410 Flat washer M8

Flat washer M8

310 ₽
25

207108044 Hex screw M10 x 80

Hex screw M10 x 80

680 ₽
26

504083800 Spacer

Spacer

590 ₽
27

293800005 Loctite 271, 10 ml

Loctite 271, 10 ml

2 300 ₽
28

504073700 Washer

Washer

230 ₽
29

504152064 Chaincase

Chaincase

0 ₽
30

503183800 Washer

Washer

310 ₽
31

293800070 Loctite 767, antiseize lubricant, 8 oz

Loctite 767, antiseize lubricant, 8 oz

3 130 ₽
32

233201414 Hex flanged elastic nut M10

Hex flanged elastic nut M10

810 ₽
33

293800060 Loctite 243, 10 ml

Loctite 243, 10 ml

2 760 ₽
34

732601314 Adjusting screw

Adjusting screw

2 450 ₽
35

234001410 Flat washer M10

Flat washer M10

420 ₽
36

504152005 Ball bearing

Ball bearing

14 840 ₽
37

504152058 Shim

Shim

0 ₽
38

414484400 O-ring

O-ring

2 440 ₽
39

219700417 Synthetic Grease, 400g

Synthetic Grease, 400g

0 ₽
40

504151951 Chain tensioner

Chain tensioner

3 470 ₽
41

504080200 Spacer

Spacer

1 660 ₽
42

504080300 Washer

Washer

910 ₽
43

405403000 Needle bearing

Needle bearing

2 390 ₽
44

414531300 Roller

Roller

4 600 ₽
45

732601144 Screw

Screw

3 020 ₽
46

293800005 Loctite 271, 10 ml

Loctite 271, 10 ml

2 300 ₽
47

415049300 Oil seal. Grand Touring 600. Grand Touring 700.

Oil seal. Grand Touring 600. Grand Touring 700.

1 130 ₽
504151927 Oil seal. Grand Touring 500.

Oil seal. Grand Touring 500.

1 930 ₽
48

507031500 Spacer. Grand Touring 600. Grand Touring 700.

Spacer. Grand Touring 600. Grand Touring 700.

990 ₽
49

371901700 Inner circlip

Inner circlip

660 ₽
50

414876700 O-ring. Grand Touring 600. Grand Touring 700.

O-ring. Grand Touring 600. Grand Touring 700.

440 ₽
51

504152006 Ball bearing

Ball bearing

1 580 ₽
52

504147200 Shim

Shim

1 990 ₽
53

504056000 Sprocket (22 teeth) CANADA/US. Grand Touring 500.

Sprocket (22 teeth) CANADA/US. Grand Touring 500.

0 ₽
504091200 Sprocket (21 teeth) EUROPE. Grand Touring 500.

Sprocket (21 teeth) EUROPE. Grand Touring 500.

0 ₽
504091000 Sprocket (23 teeth). Grand Touring 600. Grand Touring 700.

Sprocket (23 teeth). Grand Touring 600. Grand Touring 700.

4 520 ₽
54

504152049 Spacer. Grand Touring 500.

Spacer. Grand Touring 500.

250 ₽
55

232210414 Hex castellated nut M16. Grand Touring 500.

Hex castellated nut M16. Grand Touring 500.

330 ₽
250000012 Hex castellated nut M20. Grand Touring 600. Grand Touring 700.

Hex castellated nut M20. Grand Touring 600. Grand Touring 700.

680 ₽
56

417000900 Spring washer. Grand Touring 500.

Spring washer. Grand Touring 500.

730 ₽
57

371006300 Cotter pin. Grand Touring 600. Grand Touring 700.

Cotter pin. Grand Touring 600. Grand Touring 700.

70 ₽
371801300 Cotter pin. Grand Touring 500.

Cotter pin. Grand Touring 500.

110 ₽
58

504151857 Drive chain wide (74 links). Grand Touring 600. Grand Touring 700.

Drive chain wide (74 links). Grand Touring 600. Grand Touring 700.

19 620 ₽
504151859 Drive chain narrow (74 links). Grand Touring 500.

Drive chain narrow (74 links). Grand Touring 500.

7 310 ₽
59

504148500 Sprocket (43 teeth). Grand Touring 600. Grand Touring 700.

Sprocket (43 teeth). Grand Touring 600. Grand Touring 700.

13 000 ₽
504148600 Sprocket (43 teeth). Grand Touring 500.

Sprocket (43 teeth). Grand Touring 500.

10 860 ₽
60

415064300 Inner Circlip

Inner Circlip

570 ₽
61

415046400 O-ring

O-ring

6 830 ₽
62

504152027 Cover

Cover

0 ₽
63

207102544 Hex screw M10 x 25

Hex screw M10 x 25

120 ₽
64

234100602 Lock washer M10

Lock washer M10

130 ₽
65

210263080 Hex flanged screw M6 x 30

Hex flanged screw M6 x 30

280 ₽
66

504151703 Filler cap ass'y

Filler cap ass'y

1 190 ₽
67

414969400 O-ring

O-ring

700 ₽
68

413803300 Synthetic chaincase oil, 12 x 355 ml

Synthetic chaincase oil, 12 x 355 ml

2 280 ₽
69

414575600 Hair pin

Hair pin

720 ₽
70

504151921 Plug 1/8-27

Plug 1/8-27

1 530 ₽
71

501022400 Cap. Grand Touring 500.

Cap. Grand Touring 500.

840 ₽
504152104 Cap. Grand Touring 600. Grand Touring 700.

Cap. Grand Touring 600. Grand Touring 700.

1 190 ₽
