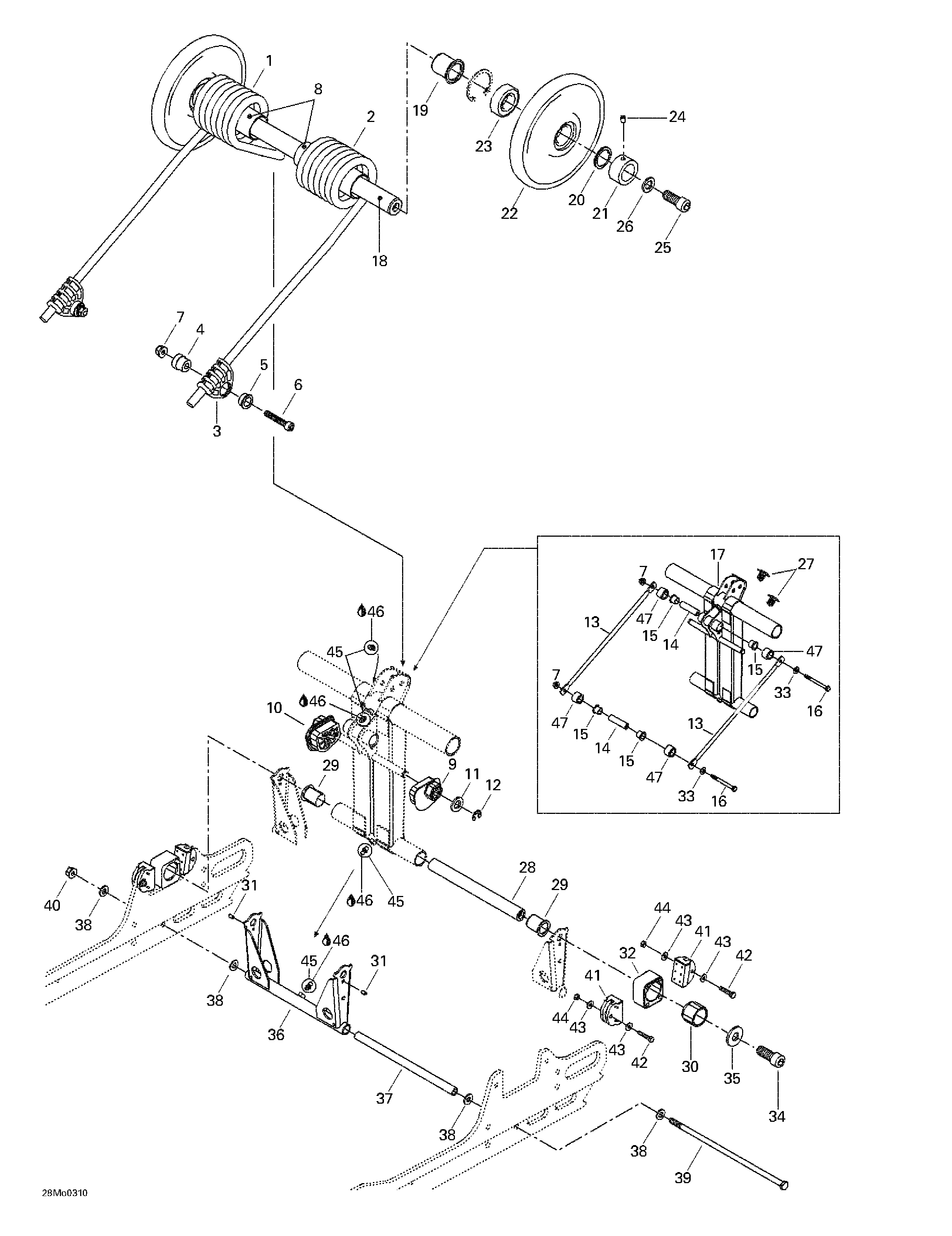

08- Rear Arm для BRP Ski-Doo Grand Touring 500/600/700 - 2003

№

Артикул

Название
1

503189522 R.H. Spring (SE-AIR SHOCK) (600 SE EUROPE). Grand Touring 600. Grand Touring 700.

R.H. Spring (SE-AIR SHOCK) (600 SE EUROPE). Grand Touring 600. Grand Touring 700.

6 610 ₽
503189902 R.H. Spring (SE). Grand Touring 600. Grand Touring 700.

R.H. Spring (SE). Grand Touring 600. Grand Touring 700.

4 620 ₽
503189992 R.H. Spring (SPORT)

R.H. Spring (SPORT)

6 030 ₽
2

503189524 L.H. Spring (SE-AIR SHOCK) (600 SE EUROPE). Grand Touring 600. Grand Touring 700.

L.H. Spring (SE-AIR SHOCK) (600 SE EUROPE). Grand Touring 600. Grand Touring 700.

6 630 ₽
503189904 L.H. Spring (SE). Grand Touring 600. Grand Touring 700.

L.H. Spring (SE). Grand Touring 600. Grand Touring 700.

5 410 ₽
503189994 L.H. Spring (SPORT)

L.H. Spring (SPORT)

8 110 ₽
3

503189657 Spring Support

Spring Support

930 ₽
4

503188934 Axle-Spring Guide

Axle-Spring Guide

2 420 ₽
5

503188929 Cushion Retainer

Cushion Retainer

3 540 ₽
6

205084544 Socket Head Screw M8 x 45

Socket Head Screw M8 x 45

320 ₽
7

233281414 Elastic Flanged Stop Nut M8

Elastic Flanged Stop Nut M8

490 ₽
8

503189105 Plastic Bushing

Plastic Bushing

250 ₽
9

503190023 L.H. Cam Adjuster

L.H. Cam Adjuster

990 ₽
10

503190022 R.H. Cam Adjuster

R.H. Cam Adjuster

700 ₽
11

234021410 Flat Washer 12 mm

Flat Washer 12 mm

270 ₽
12

293370013 Circlip

Circlip

240 ₽
13

503190111 Tie Rod

Tie Rod

1 190 ₽
14

503189815 Axle bar (SPORT)

Axle bar (SPORT)

900 ₽
503190113 Axle bar (SE). Grand Touring 600. Grand Touring 700.

Axle bar (SE). Grand Touring 600. Grand Touring 700.

12 670 ₽
15

503150200 Cushion

Cushion

0 ₽
16

230083044 Hex screw M8 x 130 (SE). Grand Touring 600. Grand Touring 700.

Hex screw M8 x 130 (SE). Grand Touring 600. Grand Touring 700.

680 ₽
207089044 Hex flanged screw M8 x 90 (SPORT)

Hex flanged screw M8 x 90 (SPORT)

1 210 ₽
17

503190110 Rear arm

Rear arm

0 ₽
18

503189412 Upper axle

Upper axle

2 820 ₽
19

503189288 Cushion

Cushion

250 ₽
20

503189146 Axle spring

Axle spring

640 ₽
21

503189147 Retainer ring

Retainer ring

990 ₽
22

503190269 Wheel 165 ass'y. Includes 22 - 23.

Wheel 165 ass'y. Includes 22 - 23.

0 ₽
23

405404500 Ball bearing 6205

Ball bearing 6205

0 ₽
24

206260844 Socket head set screw M6 x 8

Socket head set screw M6 x 8

540 ₽
25

205523544 Socket screw M12 x 35 (Scotch Grip)

Socket screw M12 x 35 (Scotch Grip)

960 ₽
26

503189276 Washer

Washer

1 150 ₽
27

414644300 Dart

Dart

370 ₽
28

503189413 Rear lower axle

Rear lower axle

1 380 ₽
29

503189286 Cushion

Cushion

0 ₽
30

503189488 Block guide

Block guide

12 670 ₽
31

250400005 Dowel pin 4 x 8 mm

Dowel pin 4 x 8 mm

370 ₽
32

503189152 L.h. block

L.h. block

670 ₽
503189170 R.h. block

R.h. block

650 ₽
33

224081201 Flat washer

Flat washer

330 ₽
34

205523544 Socket head screw M12 x 35 (scotch grip)

Socket head screw M12 x 35 (scotch grip)

960 ₽
35

503189276 Flat washer 12 mm

Flat washer 12 mm

1 150 ₽
36

503189819 Pivot arm

Pivot arm

6 720 ₽
37

503189156 Pivot arm axle

Pivot arm axle

1 840 ₽
38

503189157 Washer

Washer

1 730 ₽
39

732601198 Long bolt M8

Long bolt M8

0 ₽
40

233281414 Elastic flanged stop nut M8

Elastic flanged stop nut M8

490 ₽
41

503189608 Block stopper

Block stopper

1 040 ₽
42

207053044 Hex screw M5 x 30

Hex screw M5 x 30

110 ₽
43

250200016 Flat washer 5 mm

Flat washer 5 mm

70 ₽
44

232551414 Elastic stop nut M5

Elastic stop nut M5

320 ₽
45

408200700 Grease fitting

Grease fitting

1 330 ₽
46

219700417 Synthetic Grease, 400g

Synthetic Grease, 400g

0 ₽
47

503190114 Spacer (SE). Grand Touring 600. Grand Touring 700.

Spacer (SE). Grand Touring 600. Grand Touring 700.

5 180 ₽
