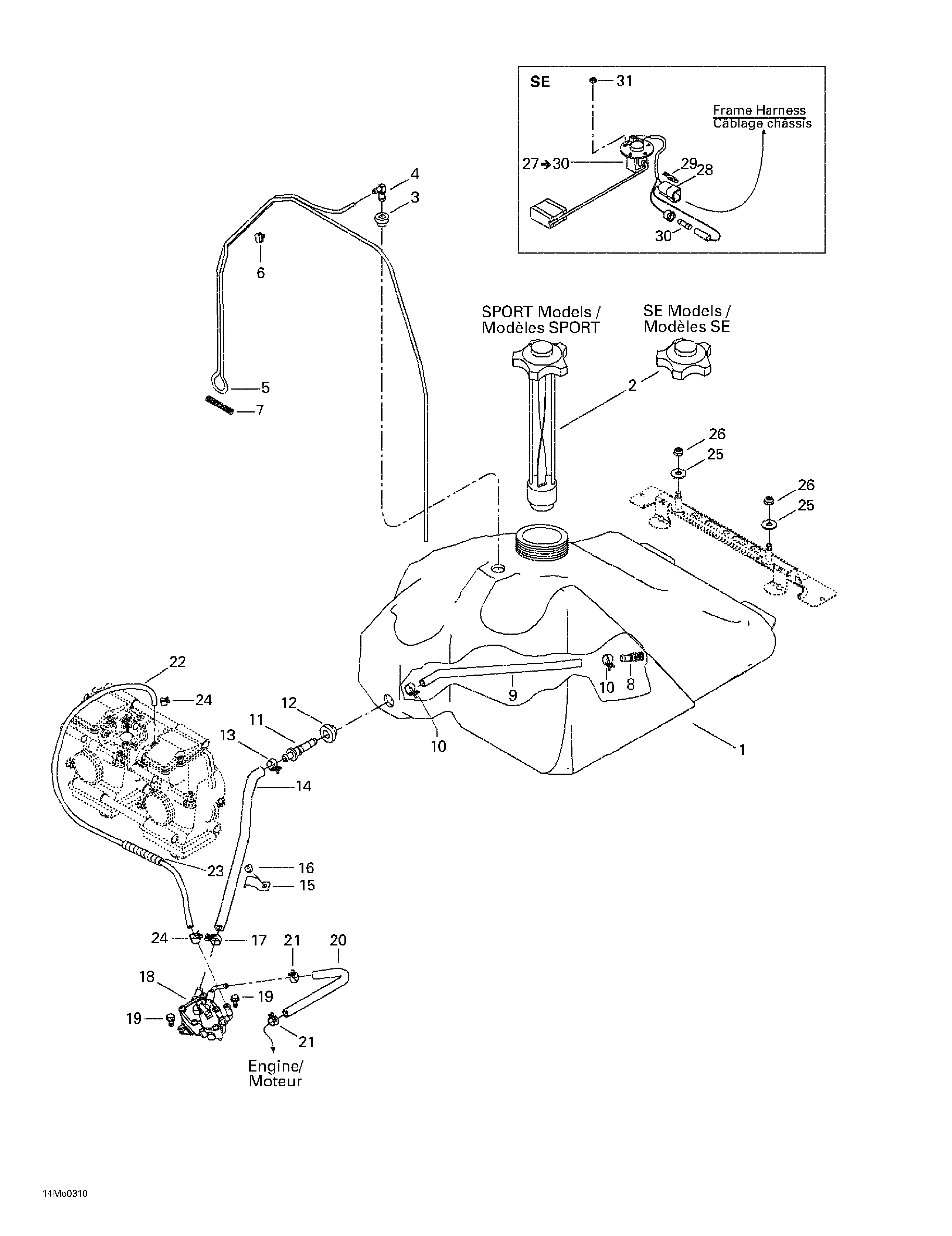

02- Fuel System для BRP Ski-Doo Grand Touring 500/600/700 - 2003
-
№АртикулНазвание
-
1513032987 Fuel tank (SPORT)Fuel tank (SPORT)
-
513032988 Fuel tank (SE). Grand Touring 600. Grand Touring 700.Fuel tank (SE). Grand Touring 600. Grand Touring 700.
-
2513033020 Fuel tank cap (SPORT)Fuel tank cap (SPORT)
-
513033025 Fuel tank cap (SE). Grand Touring 600. Grand Touring 700.Fuel tank cap (SE). Grand Touring 600. Grand Touring 700.
-
3513032908 GrommetGrommet
-
4414814100 Male connectorMale connector
-
5415080100 Primer linePrimer line
-
6513032923 Tube clampTube clamp
-
7414818200 SpringSpring
-
8414872100 Fuel filterFuel filter
-
9415005700 Polyurethane hosePolyurethane hose
-
10513033010 Norma clampNorma clamp
-
11414872700 Male connectorMale connector
-
12570273900 GrommetGrommet
-
13513032979 Spring clampSpring clamp
-
14513032903 Formed hoseFormed hose
-
15415018200 ClipClip
-
16293150103 Pop rivet 3/16''Pop rivet 3/16''
-
17513032979 Spring clampSpring clamp
-
18403901808 Fuel pumpFuel pump
-
19210361280 Hex forming screw M6 x 12Hex forming screw M6 x 12
-
20415079800 HoseHose
-
21414415200 Spring clampSpring clamp
-
22513032986 Formed hoseFormed hose
-
23415079900 Tubing 10 mmTubing 10 mm
-
24414420700 Spring clampSpring clamp
-
25234082410 Flat washer M8Flat washer M8
-
26232581414 Hex flanged elastic M8Hex flanged elastic M8
-
27515175170 Fuel Level Sensor (SE). Includes 27 - 30. Grand Touring 600. Grand Touring 700.Fuel Level Sensor (SE). Includes 27 - 30. Grand Touring 600. Grand Touring 700.
-
28409204500 Male Terminal Housing (2 Circuits). Grand Touring 600. Grand Touring 700.Male Terminal Housing (2 Circuits). Grand Touring 600. Grand Touring 700.
-
29409203900 Male Terminal. Grand Touring 600. Grand Touring 700.Male Terminal. Grand Touring 600. Grand Touring 700.
-
30410112400 Fuse 0.25 Amp. Grand Touring 600. Grand Touring 700.Fuse 0.25 Amp. Grand Touring 600. Grand Touring 700.
-
31232551414 Elastic Stop Nut M5 (SE). Grand Touring 600. Grand Touring 700.Elastic Stop Nut M5 (SE). Grand Touring 600. Grand Touring 700.
