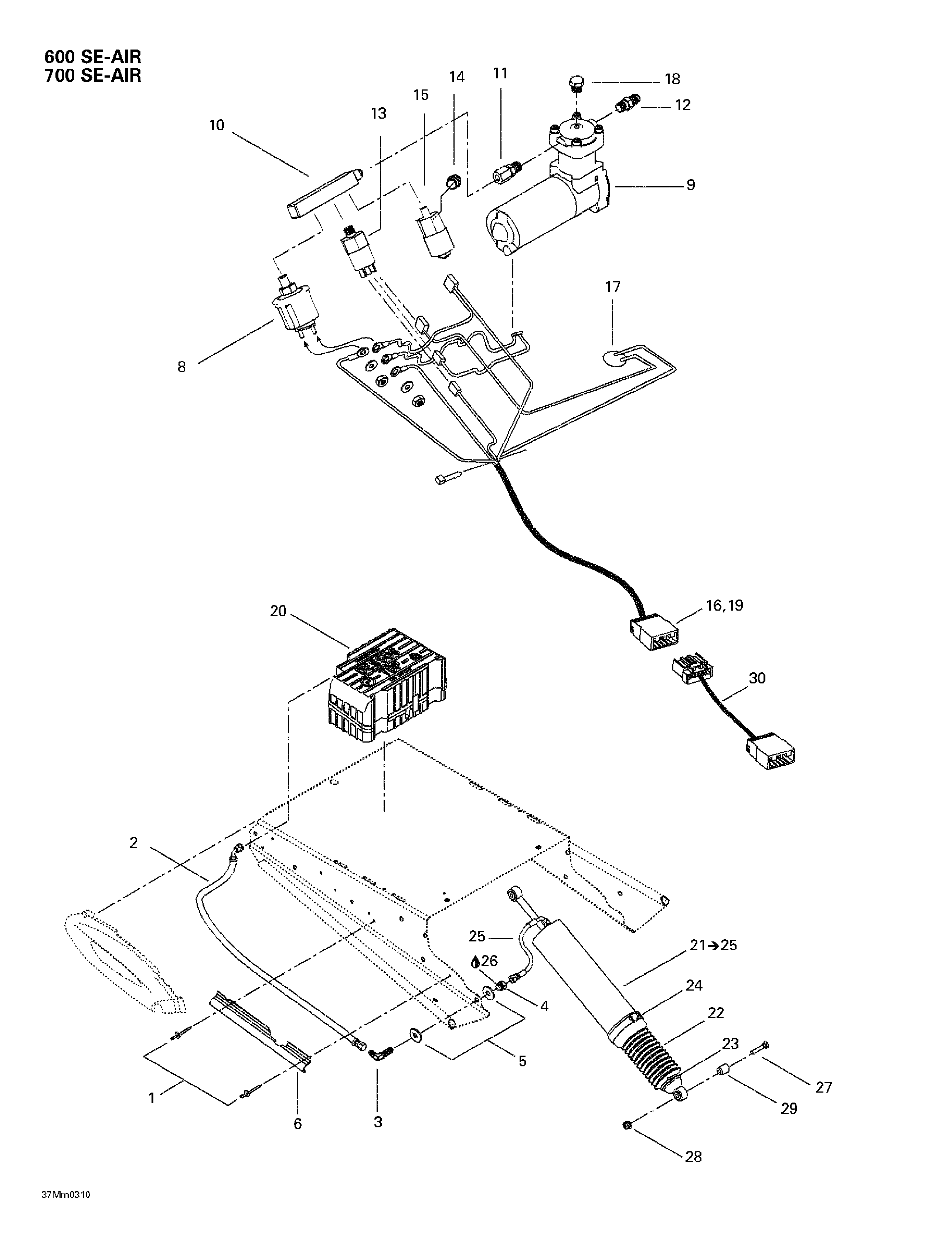

08- Air Shock And Compressor (SE-Air Shock) для BRP Ski-Doo Grand Touring 500/600/700 - 2003
-
№АртикулНазвание
-
1390402200 Pop Rivet 3/16''. Grand Touring 600. Grand Touring 700.Pop Rivet 3/16''. Grand Touring 600. Grand Touring 700.
-
2503189758 Pneumatic Line. Grand Touring 600. Grand Touring 700.Pneumatic Line. Grand Touring 600. Grand Touring 700.
-
3503189756 Pneumatic Junction. Grand Touring 600. Grand Touring 700.Pneumatic Junction. Grand Touring 600. Grand Touring 700.
-
4503189846 Junction Nut. Grand Touring 600. Grand Touring 700.Junction Nut. Grand Touring 600. Grand Touring 700.
-
5503189264 Washer. Grand Touring 600. Grand Touring 700.Washer. Grand Touring 600. Grand Touring 700.
-
6503190318 Protector. Grand Touring 600. Grand Touring 700.Protector. Grand Touring 600. Grand Touring 700.
-
7503190274 Compressor Ass'y. Includes 7 - 19. Grand Touring 600. Grand Touring 700.Compressor Ass'y. Includes 7 - 19. Grand Touring 600. Grand Touring 700.
-
8415043600 Pressure Sender. Grand Touring 600. Grand Touring 700.Pressure Sender. Grand Touring 600. Grand Touring 700.
-
9503189096 Air Compressor. Grand Touring 600. Grand Touring 700.Air Compressor. Grand Touring 600. Grand Touring 700.
-
10503189761 Pneumatic Adaptor. Grand Touring 600. Grand Touring 700.Pneumatic Adaptor. Grand Touring 600. Grand Touring 700.
-
11503189762 Pneumatic Adaptor. Grand Touring 600. Grand Touring 700.Pneumatic Adaptor. Grand Touring 600. Grand Touring 700.
-
12414893900 Adaptor. Grand Touring 600. Grand Touring 700.Adaptor. Grand Touring 600. Grand Touring 700.
-
13503189212 Valve. Grand Touring 600. Grand Touring 700.Valve. Grand Touring 600. Grand Touring 700.
-
14415099200 Pressure Regulator. Grand Touring 600. Grand Touring 700.Pressure Regulator. Grand Touring 600. Grand Touring 700.
-
15503189824 Soleno‹d. Grand Touring 600. Grand Touring 700.Soleno‹d. Grand Touring 600. Grand Touring 700.
-
16515175232 Male Terminal. Grand Touring 600. Grand Touring 700.Male Terminal. Grand Touring 600. Grand Touring 700.
-
17503189825 Resettable Fuse. Grand Touring 600. Grand Touring 700.Resettable Fuse. Grand Touring 600. Grand Touring 700.
-
18504151921 PLug Taper. Grand Touring 600. Grand Touring 700.PLug Taper. Grand Touring 600. Grand Touring 700.
-
19515175662 Male Terminal Housing. Grand Touring 600. Grand Touring 700.Male Terminal Housing. Grand Touring 600. Grand Touring 700.
-
20503189760 Compressor Box. Grand Touring 600. Grand Touring 700.Compressor Box. Grand Touring 600. Grand Touring 700.
-
21415128448 Air Shock Ass'y. Includes 21 - 25. Grand Touring 600. Grand Touring 700.Air Shock Ass'y. Includes 21 - 25. Grand Touring 600. Grand Touring 700.
-
22570278300 Protection Boot. Grand Touring 600. Grand Touring 700.Protection Boot. Grand Touring 600. Grand Touring 700.
-
23414115200 Tie Rap 180 mm. Grand Touring 600. Grand Touring 700.Tie Rap 180 mm. Grand Touring 600. Grand Touring 700.
-
24408803300 Tridon Gear Clamp. Grand Touring 600. Grand Touring 700.Tridon Gear Clamp. Grand Touring 600. Grand Touring 700.
-
25503190267 Pneumatic Line. Grand Touring 600. Grand Touring 700.Pneumatic Line. Grand Touring 600. Grand Touring 700.
-
26293800060 Loctite 243, 10 ml. Grand Touring 600. Grand Touring 700.Loctite 243, 10 ml. Grand Touring 600. Grand Touring 700.
-
27207684044 Hex. Flanged Screw M8 x 40. Grand Touring 600. Grand Touring 700.Hex. Flanged Screw M8 x 40. Grand Touring 600. Grand Touring 700.
-
28233281414 Elastic Flanged Stop Nut M8. Grand Touring 600. Grand Touring 700.Elastic Flanged Stop Nut M8. Grand Touring 600. Grand Touring 700.
-
29414936000 Cushion. Grand Touring 600. Grand Touring 700.Cushion. Grand Touring 600. Grand Touring 700.
-
30515175875 Compressor Harness. Grand Touring 600. Grand Touring 700.Compressor Harness. Grand Touring 600. Grand Touring 700.
