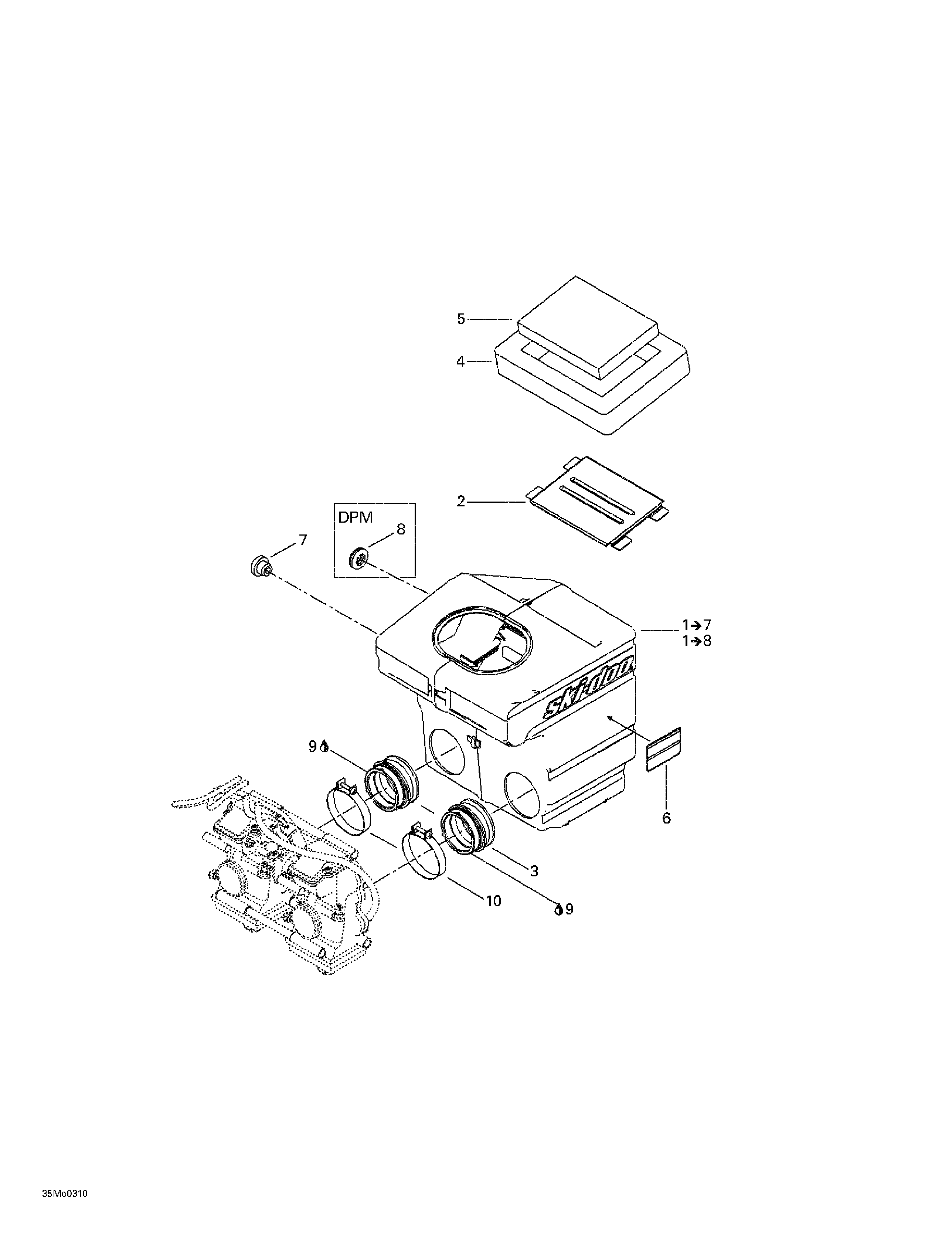

02- Air Intake System для BRP Ski-Doo Grand Touring 500/600/700 - 2003
![](/wa-data/public/shop/sheme/bombardier/ski-doo/2e4e89c5-3866-42cc-95ca-744478984708.png)
-
№АртикулНазвание
-
1508000222 Air intake ass'y. Includes 1 - 7. WITHOUT DPM 500 Grand Touring 500. WITHOUT DPM 600 Grand Touring 600.Air intake ass'y. Includes 1 - 7. WITHOUT DPM 500 Grand Touring 500. WITHOUT DPM 600 Grand Touring 600.
-
508000221 Air intake ass'y. WITHOUT DPM 700 Grand Touring 700.Air intake ass'y. WITHOUT DPM 700 Grand Touring 700.
-
1508000290 Air intake ass'y. Includes 1 - 8. DPM 600 Grand Touring 600.Air intake ass'y. Includes 1 - 8. DPM 600 Grand Touring 600.
-
508000293 Air intake ass'y. DPM 700 Grand Touring 700.Air intake ass'y. DPM 700 Grand Touring 700.
-
2508000004 Intake grillIntake grill
-
3508000092 Air intake adaptor 40 mmAir intake adaptor 40 mm
-
4508000099 Lower foamLower foam
-
5508000154 Air filterAir filter
-
6516001191 Instruction labelInstruction label
-
7513032908 GrommetGrommet
-
8570065500 Grommet (DPM 600, DPM 700). Grand Touring 600. Grand Touring 700.Grommet (DPM 600, DPM 700). Grand Touring 600. Grand Touring 700.
-
9413803200 Blizzard oil (12 x 500 ml) (not shown)Blizzard oil (12 x 500 ml) (not shown)
-
413802900 Injection oil (12 x 1 Liter) (not shown)Injection oil (12 x 1 Liter) (not shown)
-
413803000 Injection oil (3 x 4 Liter) (not shown)Injection oil (3 x 4 Liter) (not shown)
-
413803200 Injection oil (205 Liter) (not shown)Injection oil (205 Liter) (not shown)
-
413711000 Synthetic injection Oil (3 x 4 Liter). (not shown)Synthetic injection Oil (3 x 4 Liter). (not shown)
-
413710700 Synthetic injection Oil (205 Liter). (not shown)Synthetic injection Oil (205 Liter). (not shown)
-
293600045 Synthetic injection Oil (12 x 1 Liter). Bombardier-Rotax Formula XP-S (not shown)Synthetic injection Oil (12 x 1 Liter). Bombardier-Rotax Formula XP-S (not shown)
-
10508000162 ClampClamp
