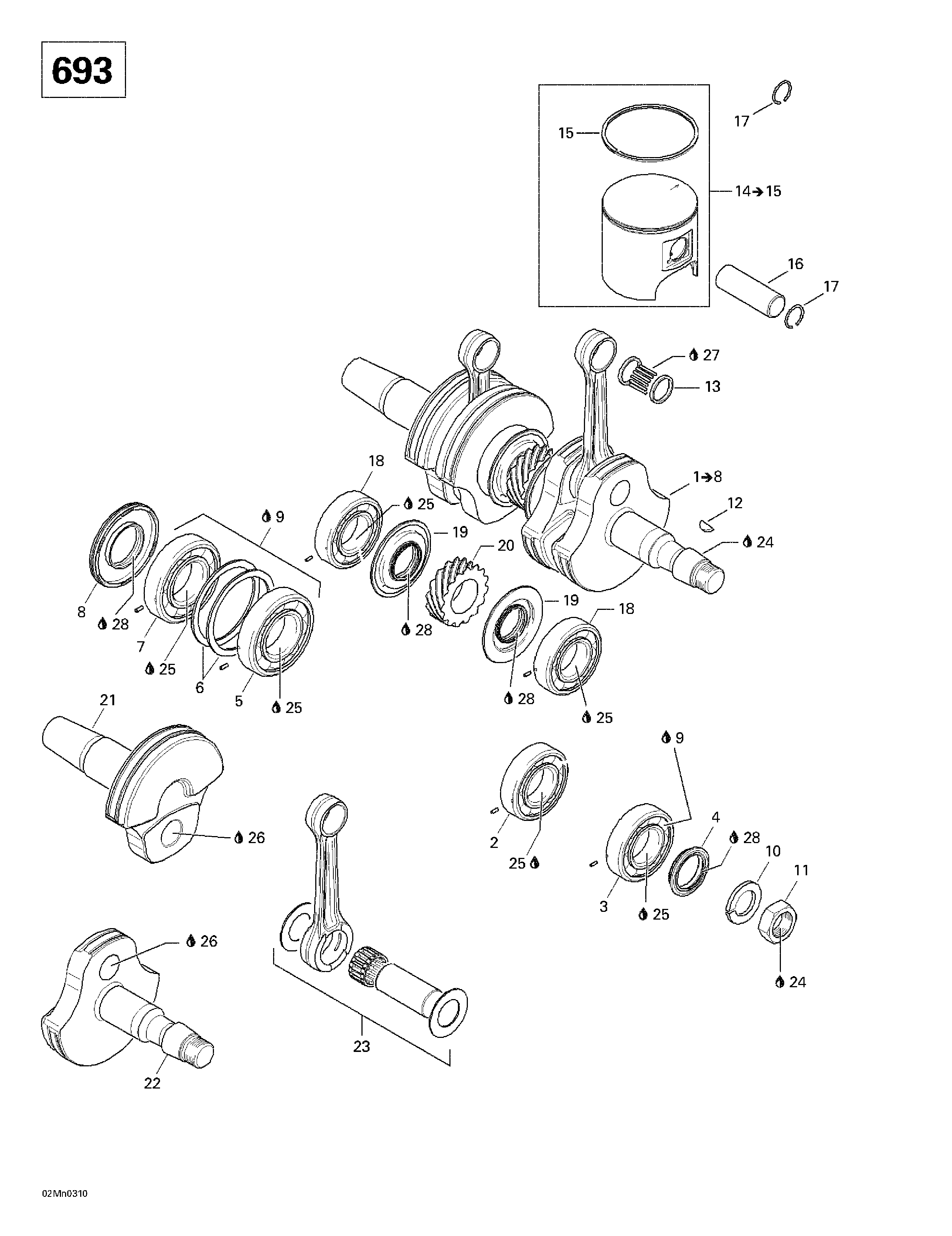

01- Crankshaft And Pistons (693) для BRP Ski-Doo Grand Touring 500/600/700 - 2003
-
№АртикулНазвание
-
1420889091 Crankshaft Ass'y. Includes 1 - 8. Grand Touring 700.Crankshaft Ass'y. Includes 1 - 8. Grand Touring 700.
-
2420832635 Ball Bearing 6207. Grand Touring 700.Ball Bearing 6207. Grand Touring 700.
-
3420832575 Ball Bearing 6207. Grand Touring 700.Ball Bearing 6207. Grand Touring 700.
-
4420931792 Oil Seal. Grand Touring 700.Oil Seal. Grand Touring 700.
-
5420832606 Ball Bearing 6208. Grand Touring 700.Ball Bearing 6208. Grand Touring 700.
-
6420926190 Washer. Grand Touring 700.Washer. Grand Touring 700.
-
7420832600 Ball Bearing 6208. Grand Touring 700.Ball Bearing 6208. Grand Touring 700.
-
8420931285 Oil Seal. Grand Touring 700.Oil Seal. Grand Touring 700.
-
9293550021 Isoflex Grease, 45 g. Grand Touring 700.Isoflex Grease, 45 g. Grand Touring 700.
-
10420945759 Lock Washer 22 mm. Grand Touring 700.Lock Washer 22 mm. Grand Touring 700.
-
11420842234 Nut M22. Grand Touring 700.Nut M22. Grand Touring 700.
-
12420246015 Woodruff Key. Grand Touring 700.Woodruff Key. Grand Touring 700.
-
13420832425 Needle Bearing. Grand Touring 700.Needle Bearing. Grand Touring 700.
-
14420888298 Piston Ass'y (1 Ring 77.88 mm). Includes 14 - 15. Grand Touring 700.Piston Ass'y (1 Ring 77.88 mm). Includes 14 - 15. Grand Touring 700.
-
15420815226 Semi-Trapez Ring. Grand Touring 700.Semi-Trapez Ring. Grand Touring 700.
-
16420916370 Gudgeon Pin. Grand Touring 700.Gudgeon Pin. Grand Touring 700.
-
17420845106 Piston Circlip. Grand Touring 700.Piston Circlip. Grand Touring 700.
-
18420832575 Ball Bearing 6207. Grand Touring 700.Ball Bearing 6207. Grand Touring 700.
-
19420931455 Oil Seal. Grand Touring 700.Oil Seal. Grand Touring 700.
-
20420834355 Central Gear 15 Teeth. Grand Touring 700.Central Gear 15 Teeth. Grand Touring 700.
-
21420818709 Crankshaft (PTO side). Grand Touring 700.Crankshaft (PTO side). Grand Touring 700.
-
22420818739 Crankshaft (MAG side). Grand Touring 700.Crankshaft (MAG side). Grand Touring 700.
-
23420889093 Rod Repair Kit (MAG side). Grand Touring 700.Rod Repair Kit (MAG side). Grand Touring 700.
-
420888094 Rod Repair Kit (PTO side). Grand Touring 700.Rod Repair Kit (PTO side). Grand Touring 700.
-
24293800060 Loctite 243, 10 ml. Grand Touring 700.Loctite 243, 10 ml. Grand Touring 700.
-
25293800070 Loctite 767, Antiseize Lubricant, 8 oz. Grand Touring 700.Loctite 767, Antiseize Lubricant, 8 oz. Grand Touring 700.
-
26413711400 Loctite 648, 10 ml. Grand Touring 700.Loctite 648, 10 ml. Grand Touring 700.
-
27413707000 Molykote III. Grand Touring 700.Molykote III. Grand Touring 700.
-
28420899271 Petamo Grease, GHY133N, 400 g. Grand Touring 700.Petamo Grease, GHY133N, 400 g. Grand Touring 700.
