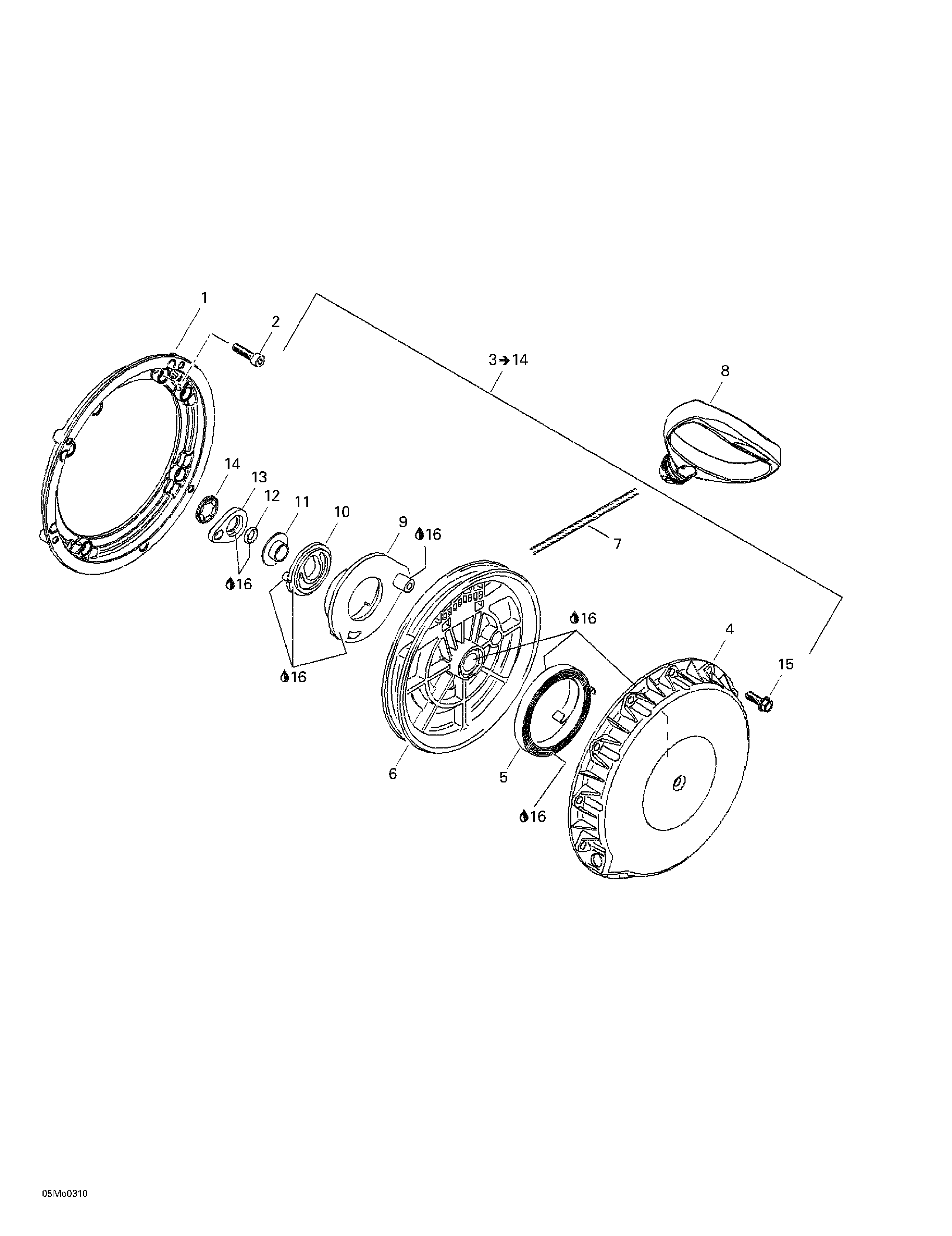

04- Rewind Starter для BRP Ski-Doo Grand Touring 500/600/700 - 2003
-
№АртикулНазвание
-
1420810865 Connecting FlangeConnecting Flange
-
2420241236 Socket Head Screw M6 x 16Socket Head Screw M6 x 16
-
3420889763 Rewind Starter Ass'y. Includes 3 - 14.Rewind Starter Ass'y. Includes 3 - 14.
-
4420811404 Starter HousingStarter Housing
-
5420939115 Rewind SpringRewind Spring
-
6420852286 Rope SheaveRope Sheave
-
7412500200 Starter RopeStarter Rope
-
8572084400 Starter GripStarter Grip
-
9420852297 PawlPawl
-
10420852305 Pawl LockPawl Lock
-
11420847925 Stage SleeveStage Sleeve
-
12420250400 O-RingO-Ring
-
13420852520 Lock RingLock Ring
-
14420845560 Locking ElementLocking Element
-
15420941256 Hex. Flanged Screw M6 x 30Hex. Flanged Screw M6 x 30
-
16420899763 Molykote PG 54, 10 gMolykote PG 54, 10 g
