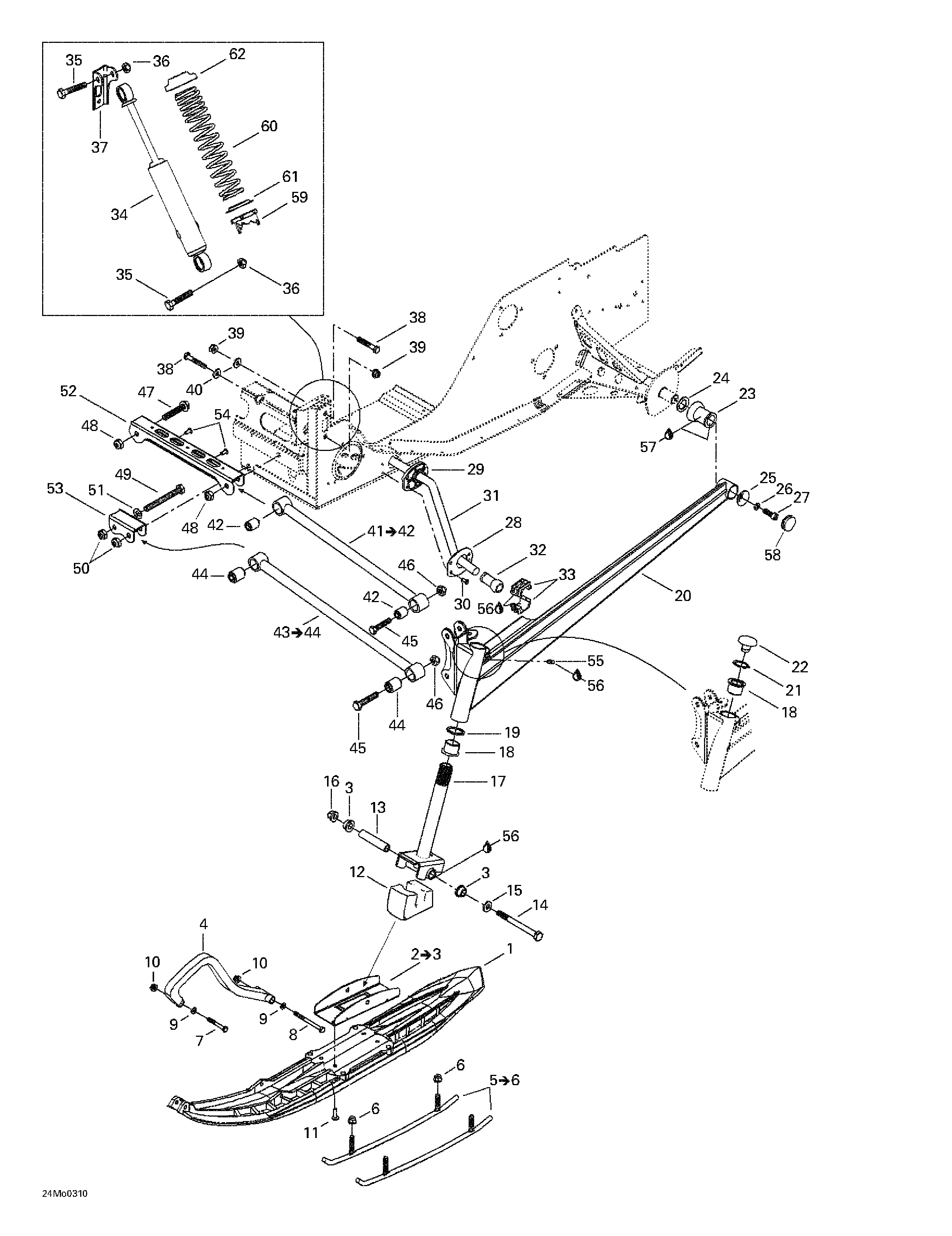

07- Front Suspension And Ski для BRP Ski-Doo Grand Touring 500/600/700 - 2003
-
№АртикулНазвание
-
1505070727 Precision ski (black)Precision ski (black)
-
2505070764 Bridge ass'y. Includes 2 - 3.Bridge ass'y. Includes 2 - 3.
-
3505070001 BushingBushing
-
4505070963 Handle (black)Handle (black)
-
5860504900 Carbide runner kit. Includes 5 - 6.Carbide runner kit. Includes 5 - 6.
-
6233201414 Hex flanged elastic nut M10Hex flanged elastic nut M10
-
7207085044 Hex screw M8 x 50Hex screw M8 x 50
-
8207089044 Hex screw M8 x 90Hex screw M8 x 90
-
9234081410 Flat washer M8Flat washer M8
-
10233281414 Hex flanged elastic nut M8Hex flanged elastic nut M8
-
11293150090 Pop rivet 1/4''Pop rivet 1/4''
-
12506151233 Ski stopperSki stopper
-
13506133300 SpacerSpacer
-
14250000001 Hex screw M10 x 110Hex screw M10 x 110
-
15732900049 WasherWasher
-
16732610084 Flanged nut M10Flanged nut M10
-
17506151234 Ski legSki leg
-
18505070003 CushionCushion
-
19505070004 WasherWasher
-
20505070645 R.h. armR.h. arm
-
505070646 L.h. armL.h. arm
-
21371910400 CirclipCirclip
-
22572091300 CapCap
-
23570062200 DamperDamper
-
24503146700 WasherWasher
-
25506115800 CupCup
-
26234181401 Lock washer M8Lock washer M8
-
27205582544 Socket screw M8 x 25 (Scotch Grip)Socket screw M8 x 25 (Scotch Grip)
-
28505070542 PlatePlate
-
29505070139 BushingBushing
-
30390407200 Pop rivet 3/16''Pop rivet 3/16''
-
31505070563 StabilisatorStabilisator
-
32505070819 Ball jointBall joint
-
33505070817 Sliding blockSliding block
-
34505071113 Front shockFront shock
-
35207005544 Hex screw M10 x 55Hex screw M10 x 55
-
36233601416 Self locking elastic nut M10Self locking elastic nut M10
-
37518317518 R.h. shock bracketR.h. shock bracket
-
518317519 L.h. shock bracketL.h. shock bracket
-
38207085044 Hex screw M8 x 50Hex screw M8 x 50
-
39233281414 Hex flanged elastic nut M8Hex flanged elastic nut M8
-
40506151245 WasherWasher
-
41505070580 Upper arm ass'y. Includes 41 - 42.Upper arm ass'y. Includes 41 - 42.
-
42505070025 BushingBushing
-
43505070402 Lower arm ass'y. Includes 43 - 44.Lower arm ass'y. Includes 43 - 44.
-
44505070025 BushingBushing
-
45207005544 Hex screw M10 x 55Hex screw M10 x 55
-
46233601416 Self locking elastic nut M10Self locking elastic nut M10
-
47207605544 Hex flanged screw M10 x 55Hex flanged screw M10 x 55
-
48233601416 Self locking elastic nut M10Self locking elastic nut M10
-
49207009544 Hex screw M10 x 95Hex screw M10 x 95
-
50233601416 Self locking elastic nut M10Self locking elastic nut M10
-
51234001410 Flat washer M10Flat washer M10
-
52505070010 Upper arm bracketUpper arm bracket
-
53505070011 Lower arm bracketLower arm bracket
-
54390402200 Pop rivet 3/16''Pop rivet 3/16''
-
55408200700 Grease fittingGrease fitting
-
56219700417 Synthetic Grease, 400gSynthetic Grease, 400g
-
57293550014 Grease, Super lubeGrease, Super lube
-
58572045900 CapCap
-
59503183700 CamCam
-
60505070686 SpringSpring
-
61503187500 Spring GuideSpring Guide
-
62503140600 Spring StopperSpring Stopper
