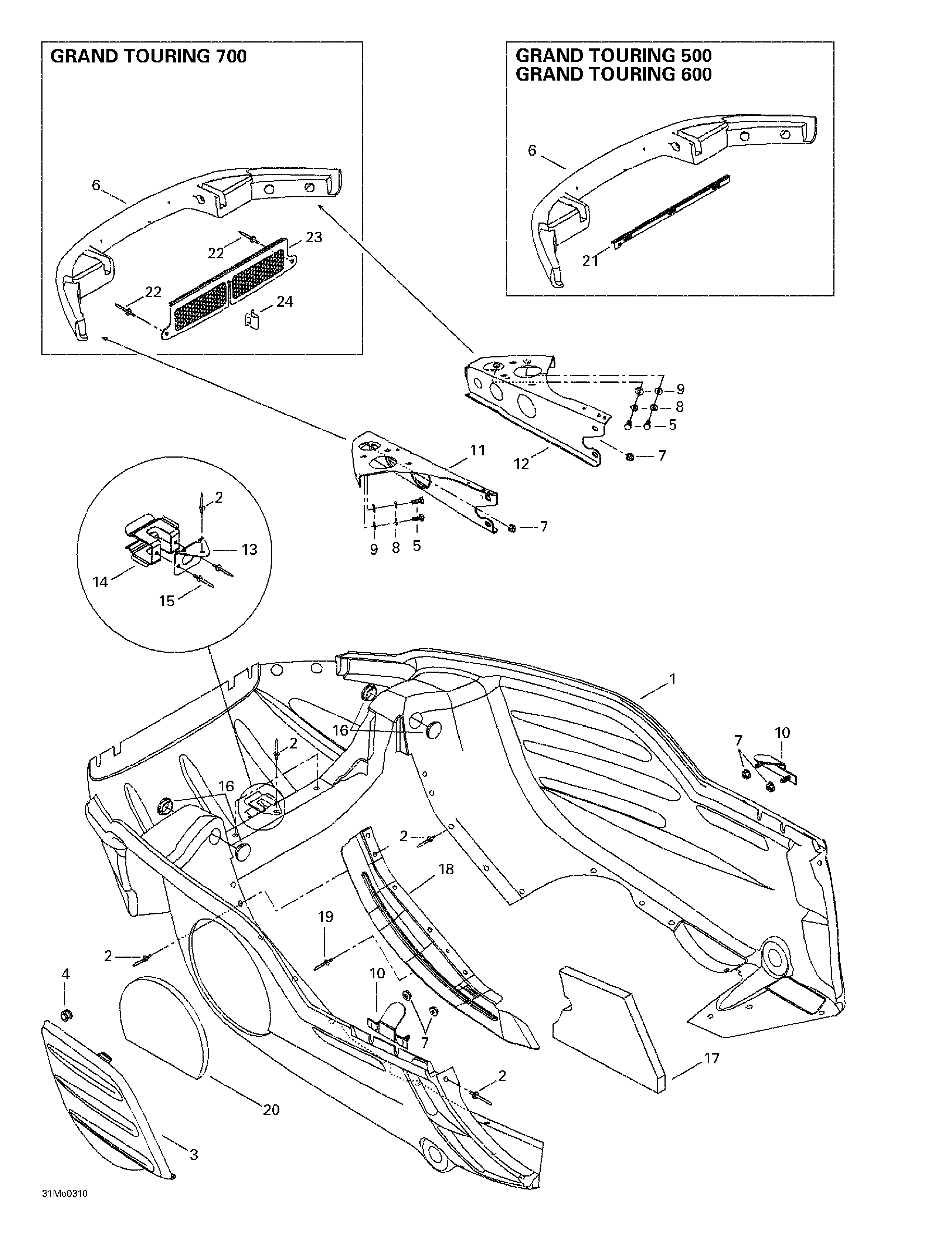

09- Bottom Pan для BRP Ski-Doo Grand Touring 500/600/700 - 2003
-
№АртикулНазвание
-
1502006636 Bottom Pan (Full Moon) B-211Bottom Pan (Full Moon) B-211
-
502006633 Bottom Pan (Black) B-160Bottom Pan (Black) B-160
-
2293150108 Pop Rivet 3/16''Pop Rivet 3/16''
-
3502006591 Bottom Pan Door (Full Moon) B-211Bottom Pan Door (Full Moon) B-211
-
502006506 Bottom Pan Door (Black) B-160Bottom Pan Door (Black) B-160
-
4414036300 GrommetGrommet
-
5207161444 Hex. Screw M6 x 14Hex. Screw M6 x 14
-
6502006592 Bumper (Full Moon) B-211Bumper (Full Moon) B-211
-
502006536 Bumper (Black) B-160Bumper (Black) B-160
-
7233261414 Elastic Flanged Stop Nut M6Elastic Flanged Stop Nut M6
-
8234161471 Lock Washer 6 mmLock Washer 6 mm
-
9224061121 Flat WasherFlat Washer
-
10502006645 Welded BracketWelded Bracket
-
11502006597 L.H. SupportL.H. Support
-
12502006602 R.H. SupportR.H. Support
-
13502006599 Belt SupportBelt Support
-
14517281905 BracketBracket
-
15390402400 Pop Rivet 3/16''Pop Rivet 3/16''
-
16414916600 Nylon CapNylon Cap
-
17502006558 Bottom FoamBottom Foam
-
18502006593 Bottom Pan Protector. Grand Touring 700.Bottom Pan Protector. Grand Touring 700.
-
19390402200 Pop Rivet. Grand Touring 700.Pop Rivet. Grand Touring 700.
-
20502006559 Bottom Pan Door FoamBottom Pan Door Foam
-
21502006647 Bottom Pan Reinforcement. Grand Touring 500. Grand Touring 600.Bottom Pan Reinforcement. Grand Touring 500. Grand Touring 600.
-
22293150103 Pop Rivet 3/16''. Grand Touring 700.Pop Rivet 3/16''. Grand Touring 700.
-
23502006697 Center Grill. Grand Touring 700.Center Grill. Grand Touring 700.
-
24517302785 Clip. Grand Touring 700.Clip. Grand Touring 700.
