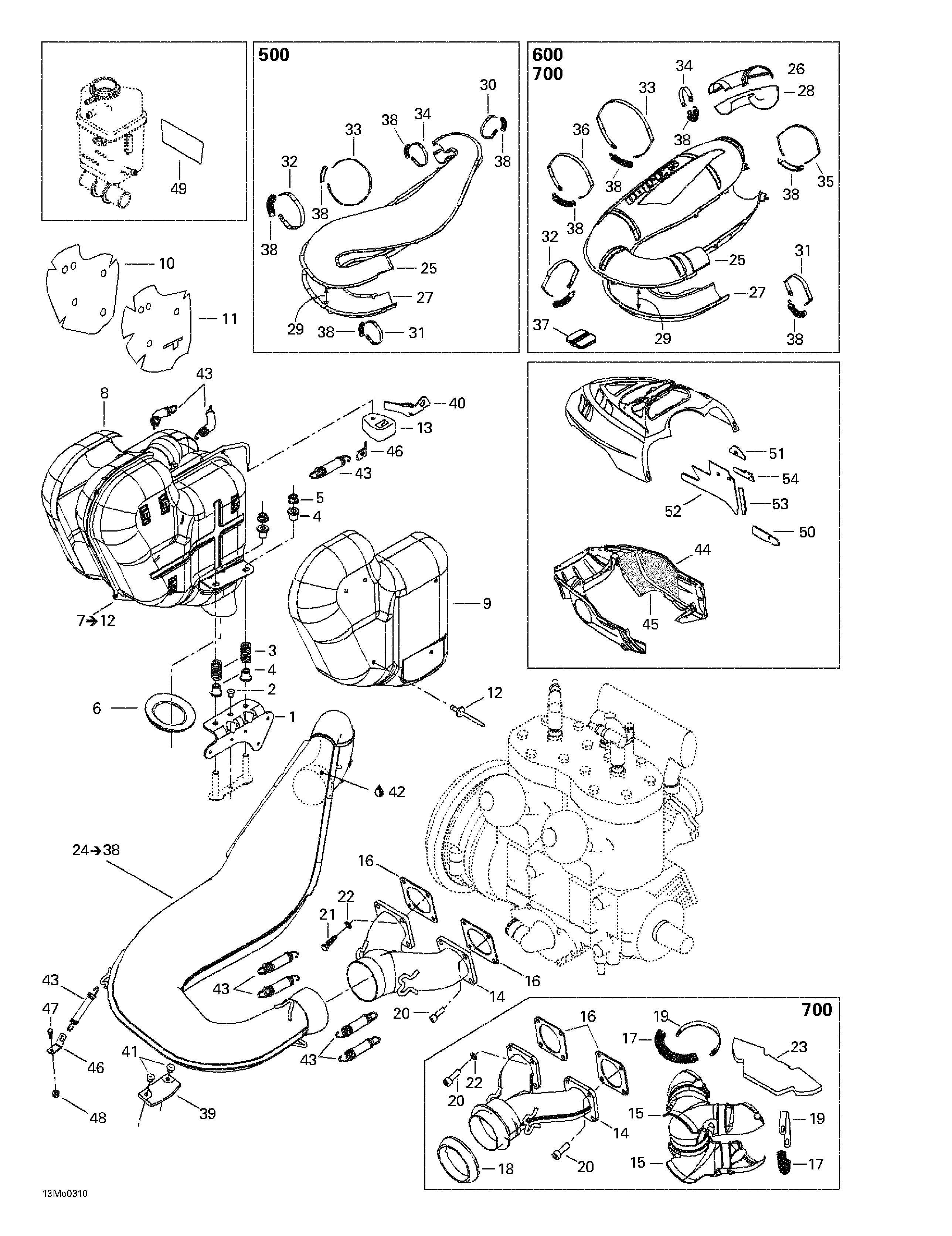

01- Muffler для BRP Ski-Doo Grand Touring 500/600/700 - 2003

№

Артикул

Название
1

514053263 Muffler bracket

Muffler bracket

570 ₽
2

390402200 Pop rivet 3/16''

Pop rivet 3/16''

120 ₽
3

414913700 Spring

Spring

310 ₽
4

514053343 Guide

Guide

2 010 ₽
5

233481413 Hex self stop nut M8

Hex self stop nut M8

400 ₽
6

570039000 Exhaust grommet 500 / 600. Grand Touring 500. Grand Touring 600.

Exhaust grommet 500 / 600. Grand Touring 500. Grand Touring 600.

6 580 ₽
514053064 Exhaust grommet 700. Grand Touring 700.

Exhaust grommet 700. Grand Touring 700.

0 ₽
7

514053326 Muffler 500 / 600. Includes 7 - 12. Grand Touring 500. Grand Touring 600.

Muffler 500 / 600. Includes 7 - 12. Grand Touring 500. Grand Touring 600.

0 ₽
514053537 Muffler700. Grand Touring 700.

Muffler700. Grand Touring 700.

0 ₽
8

514053160 R.H. Heat Shield 500 / 600. Grand Touring 500. Grand Touring 600.

R.H. Heat Shield 500 / 600. Grand Touring 500. Grand Touring 600.

0 ₽
514053606 R.H. Heat Shield 700. Grand Touring 700.

R.H. Heat Shield 700. Grand Touring 700.

2 280 ₽
9

514052733 L.H. Heat Shield 500 / 600. Grand Touring 500. Grand Touring 600.

L.H. Heat Shield 500 / 600. Grand Touring 500. Grand Touring 600.

10 ₽
514053516 L.H. Heat Shield 700. Grand Touring 700.

L.H. Heat Shield 700. Grand Touring 700.

0 ₽
10

514052734 R.h. insulating wool 500 / 600. Grand Touring 500. Grand Touring 600.

R.h. insulating wool 500 / 600. Grand Touring 500. Grand Touring 600.

0 ₽
514053294 R.h. insulating wool 700. Grand Touring 700.

R.h. insulating wool 700. Grand Touring 700.

0 ₽
11

514052844 L.h. Insulating wool 500 / 600. Grand Touring 500. Grand Touring 600.

L.h. Insulating wool 500 / 600. Grand Touring 500. Grand Touring 600.

800 ₽
514053295 L.h. Insulating wool 700. Grand Touring 700.

L.h. Insulating wool 700. Grand Touring 700.

800 ₽
12

390910000 Pop rivet 3/16''

Pop rivet 3/16''

210 ₽
13

514052704 Rubber bumper

Rubber bumper

1 330 ₽
14

420973650 Exhaust manifold 500. Grand Touring 500.

Exhaust manifold 500. Grand Touring 500.

13 290 ₽
420979543 Exhaust manifold 600. Grand Touring 600.

Exhaust manifold 600. Grand Touring 600.

13 950 ₽
420973593 Exhaust manifold 700. Grand Touring 700.

Exhaust manifold 700. Grand Touring 700.

0 ₽
15

514053593 Exhaust manifold envelope 700. Grand Touring 500. .

Exhaust manifold envelope 700. Grand Touring 500. .

1 080 ₽
16

420850552 Gasket 700. Grand Touring 700.

Gasket 700. Grand Touring 700.

1 530 ₽
420931610 Gasket 600. Grand Touring 600.

Gasket 600. Grand Touring 600.

4 100 ₽
420931615 Gasket 500. Grand Touring 500.

Gasket 500. Grand Touring 500.

930 ₽
17

514053643 Spring 700. Grand Touring 700.

Spring 700. Grand Touring 700.

3 090 ₽
18

514053487 Exhaust gasket 700. Grand Touring 700.

Exhaust gasket 700. Grand Touring 700.

7 740 ₽
19

514053603 Strap retaining 700. Grand Touring 700.

Strap retaining 700. Grand Touring 700.

250 ₽
20

205062044 Socket screw M6 x 20, 700. Grand Touring 700.

Socket screw M6 x 20, 700. Grand Touring 700.

120 ₽
205082544 Socket screw M8 x 25, 500 / 600. Grand Touring 500. Grand Touring 600.

Socket screw M8 x 25, 500 / 600. Grand Touring 500. Grand Touring 600.

390 ₽
21

207182044 Hex screw M8 x 20, 500 / 600. Grand Touring 500. Grand Touring 600.

Hex screw M8 x 20, 500 / 600. Grand Touring 500. Grand Touring 600.

70 ₽
22

234161471 Lock washer M6, 700. Grand Touring 700.

Lock washer M6, 700. Grand Touring 700.

190 ₽
234181401 Lock washer M8, 500 / 600. Grand Touring 500. Grand Touring 600.

Lock washer M8, 500 / 600. Grand Touring 500. Grand Touring 600.

340 ₽
23

514053588 Insulating wool 700. Grand Touring 700.

Insulating wool 700. Grand Touring 700.

990 ₽
24

514053488 Tuned Pipe ass'y 500. Includes 24 - 38. Grand Touring 500. Grand Touring 600.

Tuned Pipe ass'y 500. Includes 24 - 38. Grand Touring 500. Grand Touring 600.

0 ₽
514053495 Tuned Pipe ass'y 600. Grand Touring 500. Grand Touring 700.

Tuned Pipe ass'y 600. Grand Touring 500. Grand Touring 700.

0 ₽
514053676 Tuned Pipe ass'y 700. Grand Touring 500. .

Tuned Pipe ass'y 700. Grand Touring 500. .

0 ₽
25

514053167 Upper envelope 500. Grand Touring 500.

Upper envelope 500. Grand Touring 500.

3 860 ₽
514053192 Upper envelope 600. Grand Touring 600.

Upper envelope 600. Grand Touring 600.

3 860 ₽
514053690 Upper envelope 700. Grand Touring 700.

Upper envelope 700. Grand Touring 700.

0 ₽
26

514053193 Rear upper envelope 600. Grand Touring 600.

Rear upper envelope 600. Grand Touring 600.

1 710 ₽
514053313 Rear upper envelope 700. Grand Touring 700.

Rear upper envelope 700. Grand Touring 700.

1 990 ₽
27

514053360 Lower envelope 500. Grand Touring 500.

Lower envelope 500. Grand Touring 500.

3 860 ₽
514053367 Lower envelope 600. Grand Touring 600.

Lower envelope 600. Grand Touring 600.

4 510 ₽
514053691 Lower envelope 700. Grand Touring 700.

Lower envelope 700. Grand Touring 700.

3 660 ₽
28

514053196 Rear lower envelope 600. Grand Touring 600.

Rear lower envelope 600. Grand Touring 600.

1 710 ₽
514053314 Rear lower envelope 700. Grand Touring 700.

Rear lower envelope 700. Grand Touring 700.

1 990 ₽
29

514052716 Insulating wool 500. Grand Touring 500.

Insulating wool 500. Grand Touring 500.

800 ₽
514053285 Insulating wool 600. Grand Touring 600.

Insulating wool 600. Grand Touring 600.

1 190 ₽
514053696 Insulating wool 700. Grand Touring 700.

Insulating wool 700. Grand Touring 700.

0 ₽
30

514053499 Retaining strap 500. Grand Touring 500.

Retaining strap 500. Grand Touring 500.

710 ₽
31

514053494 Retaining strap 500. Grand Touring 500.

Retaining strap 500. Grand Touring 500.

250 ₽
514053498 Retaining strap 600. Grand Touring 600.

Retaining strap 600. Grand Touring 600.

710 ₽
32

514053502 Retaining strap 500. Grand Touring 500.

Retaining strap 500. Grand Touring 500.

710 ₽
514053501 Retaining strap 600. Grand Touring 600.

Retaining strap 600. Grand Touring 600.

710 ₽
33

514053540 Retaining strap

Retaining strap

450 ₽
34

514053493 Retaining strap 500. Grand Touring 500.

Retaining strap 500. Grand Touring 500.

250 ₽
514053491 Retaining strap 600. Grand Touring 600.

Retaining strap 600. Grand Touring 600.

710 ₽
514053492 Retaining strap 700. Grand Touring 700.

Retaining strap 700. Grand Touring 700.

910 ₽
35

514053500 Retaining strap 600 / 700. Grand Touring 600. Grand Touring 700.

Retaining strap 600 / 700. Grand Touring 600. Grand Touring 700.

250 ₽
36

514053512 Retaining strap 600 / 700. Grand Touring 600. Grand Touring 700.

Retaining strap 600 / 700. Grand Touring 600. Grand Touring 700.

250 ₽
37

514053180 Rubber pad 600. Grand Touring 600.

Rubber pad 600. Grand Touring 600.

570 ₽
38

514053643 Spring

Spring

3 090 ₽
39

570044100 Rubber pad

Rubber pad

590 ₽
40

514053442 Engine suport 700. Grand Touring 700.

Engine suport 700. Grand Touring 700.

700 ₽
41

293150103 Pop rivet 3/16''

Pop rivet 3/16''

210 ₽
42

293800090 Sealant, loctite, 80 ml

Sealant, loctite, 80 ml

2 670 ₽
43

415107100 Spring 500 / 600. Grand Touring 500. Grand Touring 600.

Spring 500 / 600. Grand Touring 500. Grand Touring 600.

1 990 ₽
415107100 Spring 700. Grand Touring 700.

Spring 700. Grand Touring 700.

1 990 ₽
44

514052718 Reflective sheet

Reflective sheet

1 190 ₽
45

514053390 Reflective sheet

Reflective sheet

1 470 ₽
46

514053436 Spring bracket 500 / 600. Grand Touring 500. Grand Touring 600.

Spring bracket 500 / 600. Grand Touring 500. Grand Touring 600.

710 ₽
514053436 Spring brachet 700. Grand Touring 700.

Spring brachet 700. Grand Touring 700.

710 ₽
47

207151244 Hex screw M5 x 12

Hex screw M5 x 12

90 ₽
48

233251414 Hex flanged elastic nut M5

Hex flanged elastic nut M5

100 ₽
49

514053399 Reflective sheet

Reflective sheet

480 ₽
50

514053435 Reflective sheet (Black Cab)

Reflective sheet (Black Cab)

210 ₽
51

514053446 Reflective sheet (Black Cab)

Reflective sheet (Black Cab)

210 ₽
52

514053624 Reflective sheet

Reflective sheet

1 190 ₽
53

514053450 Reflective sheet

Reflective sheet

210 ₽
54

514053391 Reflective sheet (Autumn Red Cab)

Reflective sheet (Autumn Red Cab)

210 ₽
