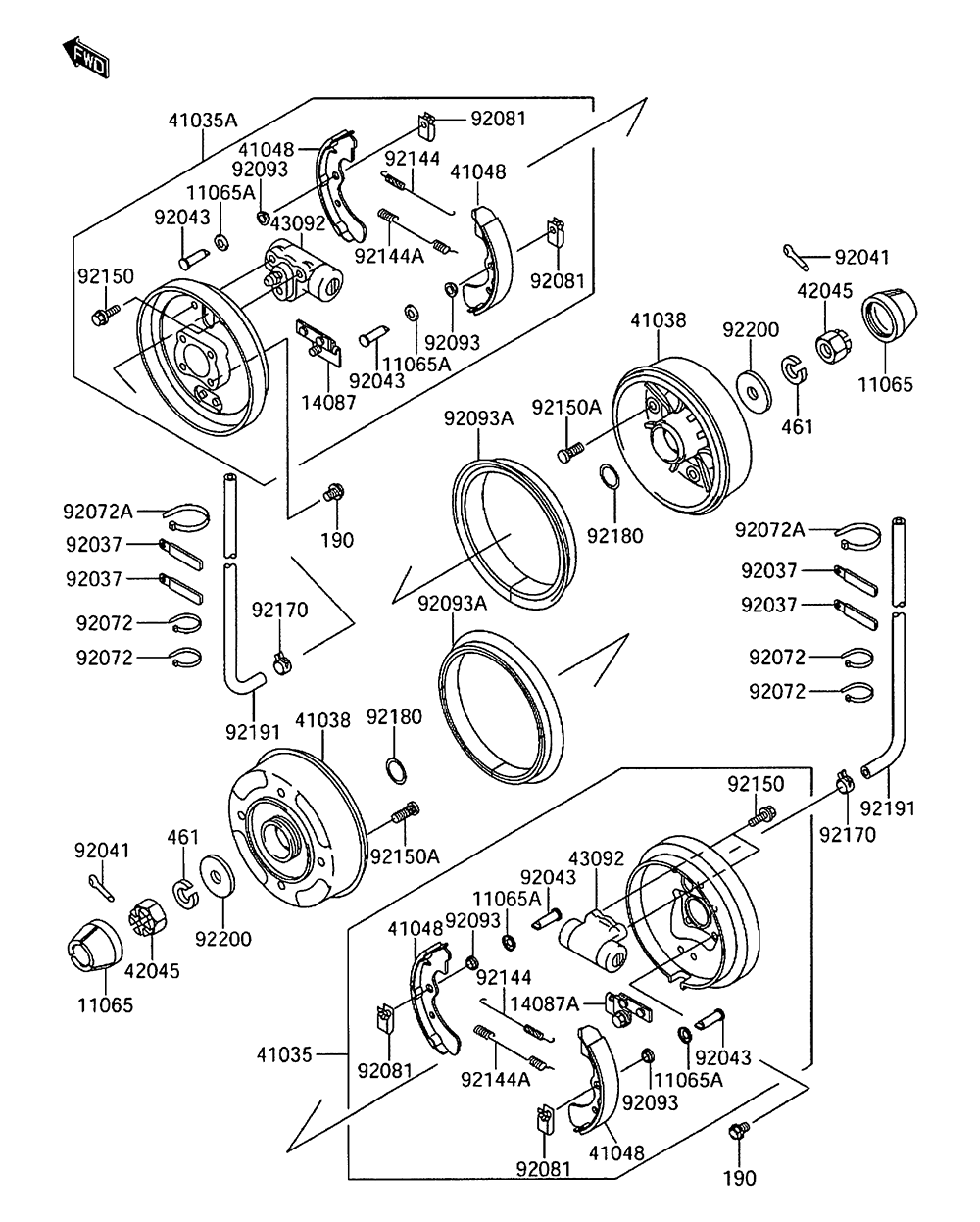

BRAKE - FRONT HUB для Suzuki QUV 620 AUTO 4X4 - 2005 года выпуска
-
№АртикулНазвание
-
11065K1106-50079 CAP, WHEELCAP, WHEEL
-
11065AK1106-51175 CAPCAP
-
14087K1408-71001 RETAINER-ASSY, RHRETAINER-ASSY, RH
-
14087AK1408-71002 RETAINER-ASSY, LHRETAINER-ASSY, LH
-
41035K4103-51516 PANEL-ASSY-BRAKE, FR, LHPANEL-ASSY-BRAKE, FR, LH
-
41035AK4103-51517 PANEL-ASSY-BRAKE, FR, RHPANEL-ASSY-BRAKE, FR, RH
-
41038K4103-81345 DRUM, FRONT BRAKEDRUM, FRONT BRAKE
-
41048K4104-81134 SHOE-BRAKESHOE-BRAKE
-
42045KK420-45018 NUT, CASTLE, 18MMNUT, CASTLE, 18MM
-
43092K4309-21054 CYLINDER, FRONT BRAKE PANELCYLINDER, FRONT BRAKE PANEL
-
92037K9203-71069 CLAMP, L=60CLAMP, L=60
-
92041K9204-11053 COTTER, 4.0X35COTTER, 4.0X35
-
92043K9204-31636 PINPIN
-
92072KK920-72030 BAND, L=123BAND, L=123
-
92072AKK920-72031 BAND, L=149BAND, L=149
-
92081K9208-11904 SPRING, SHOE CLAMPSPRING, SHOE CLAMP
-
92093K9209-31532 SEALSEAL
-
92093AK9209-31543 SEAL, BS184.8X13.5ZSSEAL, BS184.8X13.5ZS
-
92144K9214-41300 SPRING, BRAKESPRING, BRAKE
-
92144AK9214-41301 SPRING, BRAKESPRING, BRAKE
-
92150K9215-01166 BOLT, FLANGED, 6X12BOLT, FLANGED, 6X12
-
92150AK9215-01366 BOLTBOLT
-
92170K9217-02042 CLAMPCLAMP
-
92180K9218-01353 SHIM, 25.2X32.5X0.6SHIM, 25.2X32.5X0.6
-
92191K9219-11615 TUBE, 4.7X9.5X1480TUBE, 4.7X9.5X1480
-
92200K9220-01474 WASHER, 18.5X52X4.5WASHER, 18.5X52X4.5
-
190KK190-H1016 BOLT-UPSET-WS, 10X16BOLT-UPSET-WS, 10X16
-
461KK461-F1800 WASHER-SPRING, 18MMWASHER-SPRING, 18MM
