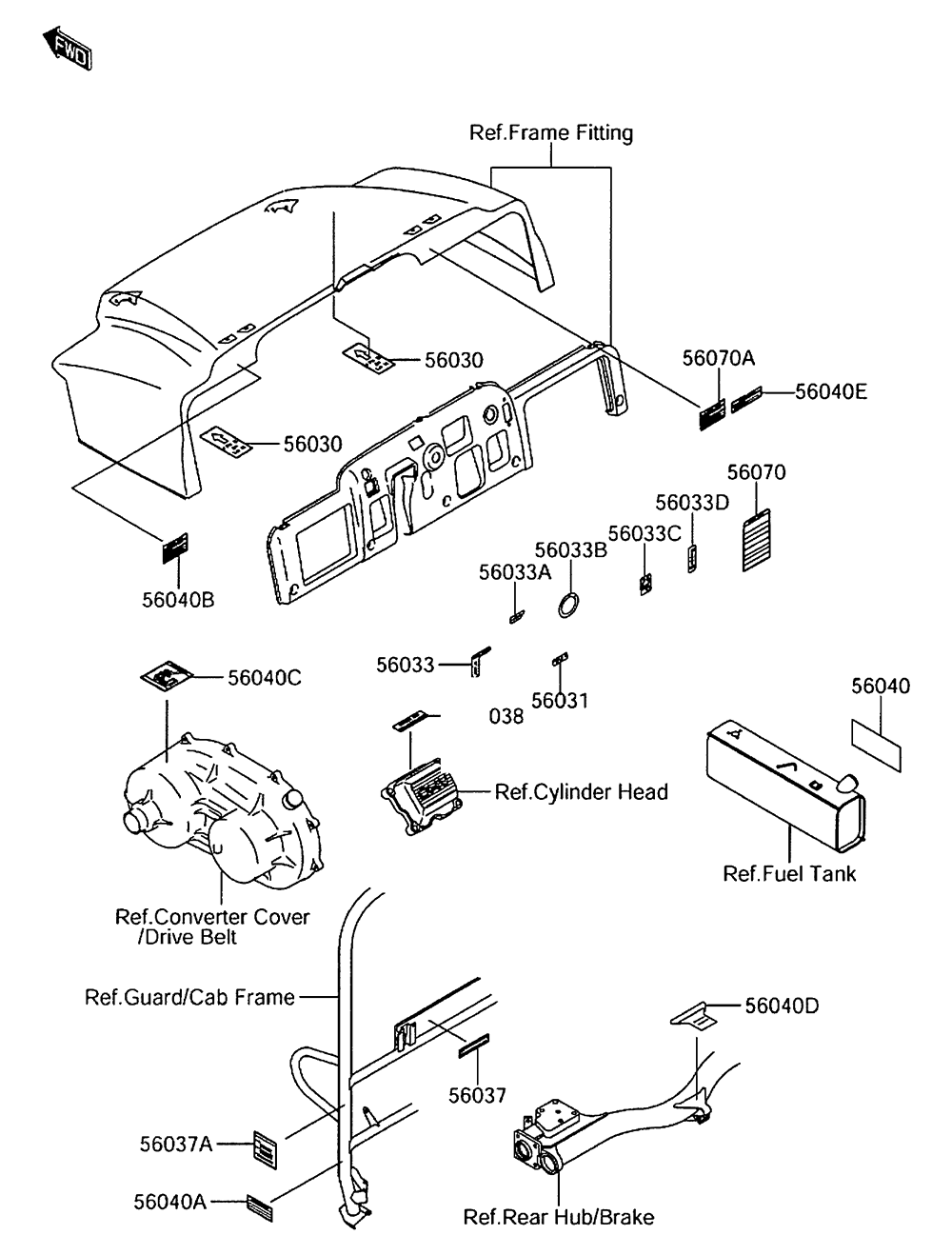

LABELS для Suzuki QUV 620 AUTO 4X4 - 2005 года выпуска
-
№АртикулНазвание
-
56030K5603-01240 LABEL, BONNET OPERATIONLABEL, BONNET OPERATION
-
56031K5603-11818 LABEL-MANUAL, BRAKE FLUID LEVELLABEL-MANUAL, BRAKE FLUID LEVEL
-
56033K5603-31183 LABEL-MANUAL, DIFF MODELABEL-MANUAL, DIFF MODE
-
56033AK5603-31184 LABEL-MANUAL, IGNITIONLABEL-MANUAL, IGNITION
-
56033BK5603-31185 LABEL-MANUAL, IGNITION, ON/OFFLABEL-MANUAL, IGNITION, ON/OFF
-
56033CK5603-31186 LABEL-MANUAL, SHIFTLABEL-MANUAL, SHIFT
-
56033DK5603-31187 LABEL-MANUAL, 2WD/4WDLABEL-MANUAL, 2WD/4WD
-
56037K5603-71576 LABEL-SPECIFICATION, CARGO BEDLABEL-SPECIFICATION, CARGO BED
-
56037AK5603-71859 LABEL-SPECIFICATION, TIRELABEL-SPECIFICATION, TIRE
-
56038K5603-82782 LABEL-BRANDLABEL-BRAND
-
56040K5604-00048 LABEL-WARNING, FUEL TANKLABEL-WARNING, FUEL TANK
-
56070K5607-00049 LABEL-WARNING, BED RAISEDLABEL-WARNING, BED RAISED
-
56070AK5607-00050 LABEL-WARNING, OFF-HIGHWAYLABEL-WARNING, OFF-HIGHWAY
-
56070BK5607-00051 LABEL-WARNING, HOT SURFACESLABEL-WARNING, HOT SURFACES
-
56070CK5607-00052 LABEL-WARNING, TRAILER HITCHLABEL-WARNING, TRAILER HITCH
-
56040AK5604-01342 LABEL-WARNING, SHIFT CAUTIONLABEL-WARNING, SHIFT CAUTION
-
56070DK5607-00042 LABEL-WARNING, GENERALLABEL-WARNING, GENERAL
-
56070EK5607-00053 LABEL-WARNING, BONNET OPERATIONLABEL-WARNING, BONNET OPERATION
-
1999011-11AE0-03A MANUAL, OWNER'S (NOT SHOWN)MANUAL, OWNER'S (NOT SHOWN)
