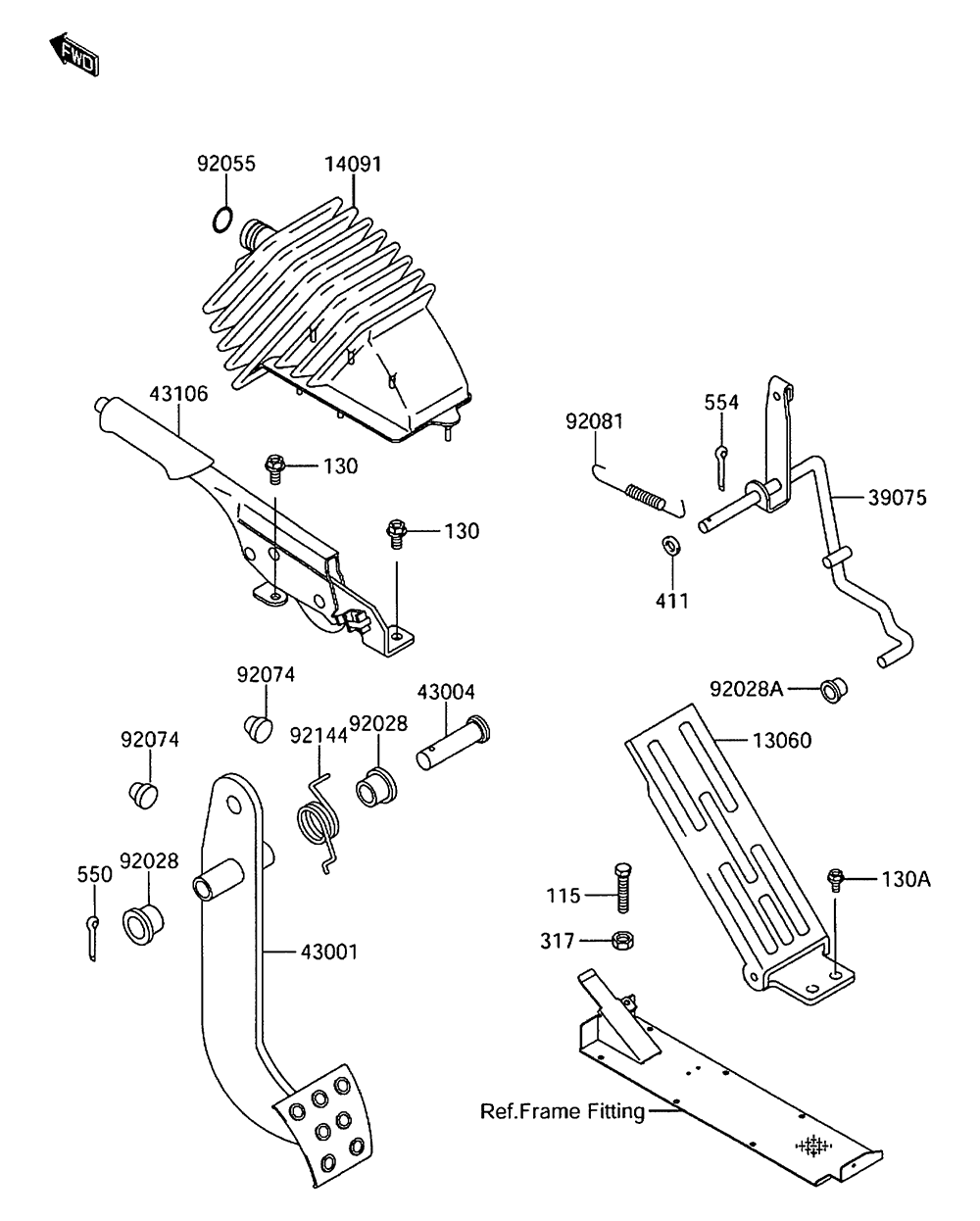

BRAKE PEDAL AND THROTTLE LEVER для Suzuki QUV 620 AUTO 4X4 - 2005 года выпуска
-
№АртикулНазвание
-
13060K1306-01061 PEDAL, THROTTLEPEDAL, THROTTLE
-
14091K1409-10067 COVER, PARKING LEVERCOVER, PARKING LEVER
-
39075K3907-51057 LEVER-THROTTLELEVER-THROTTLE
-
43001K4300-11320 LEVER-BRAKE, PEDALLEVER-BRAKE, PEDAL
-
43004K4300-41128 SHAFT-BRAKESHAFT-BRAKE
-
43106K4310-61005 LEVER-ASSY-PARKING BRAKELEVER-ASSY-PARKING BRAKE
-
92028K9202-81571 BUSHINGBUSHING
-
92028AK9202-81601 BUSHING, THROTTLE LEVERBUSHING, THROTTLE LEVER
-
92055K9205-51633 RING-O, 18X24X3RING-O, 18X24X3
-
92074KK920-74028 PLUG, 7X2PLUG, 7X2
-
92081K9208-11922 SPRING, BRAKE LEVER RETURNSPRING, BRAKE LEVER RETURN
-
92144K9214-41536 SPRINGSPRING
-
115KK115-D0840 BOLT-SMALL-UPSET, 8X40BOLT-SMALL-UPSET, 8X40
-
130KK130-D0816 BOLT-FLANGEDBOLT-FLANGED
-
130AKK130-J0612 BOLT-FLANGEDBOLT-FLANGED
-
317KK317-H0800 NUT-HEX-SMALL, 8MMNUT-HEX-SMALL, 8MM
-
411KK411-E1000 WASHER-PLAIN, 10MMWASHER-PLAIN, 10MM
-
550KK550-D2525 PIN-COTTER, 2.5X25PIN-COTTER, 2.5X25
-
554KK554-A1000 PIN-SNAP, 10MMPIN-SNAP, 10MM
