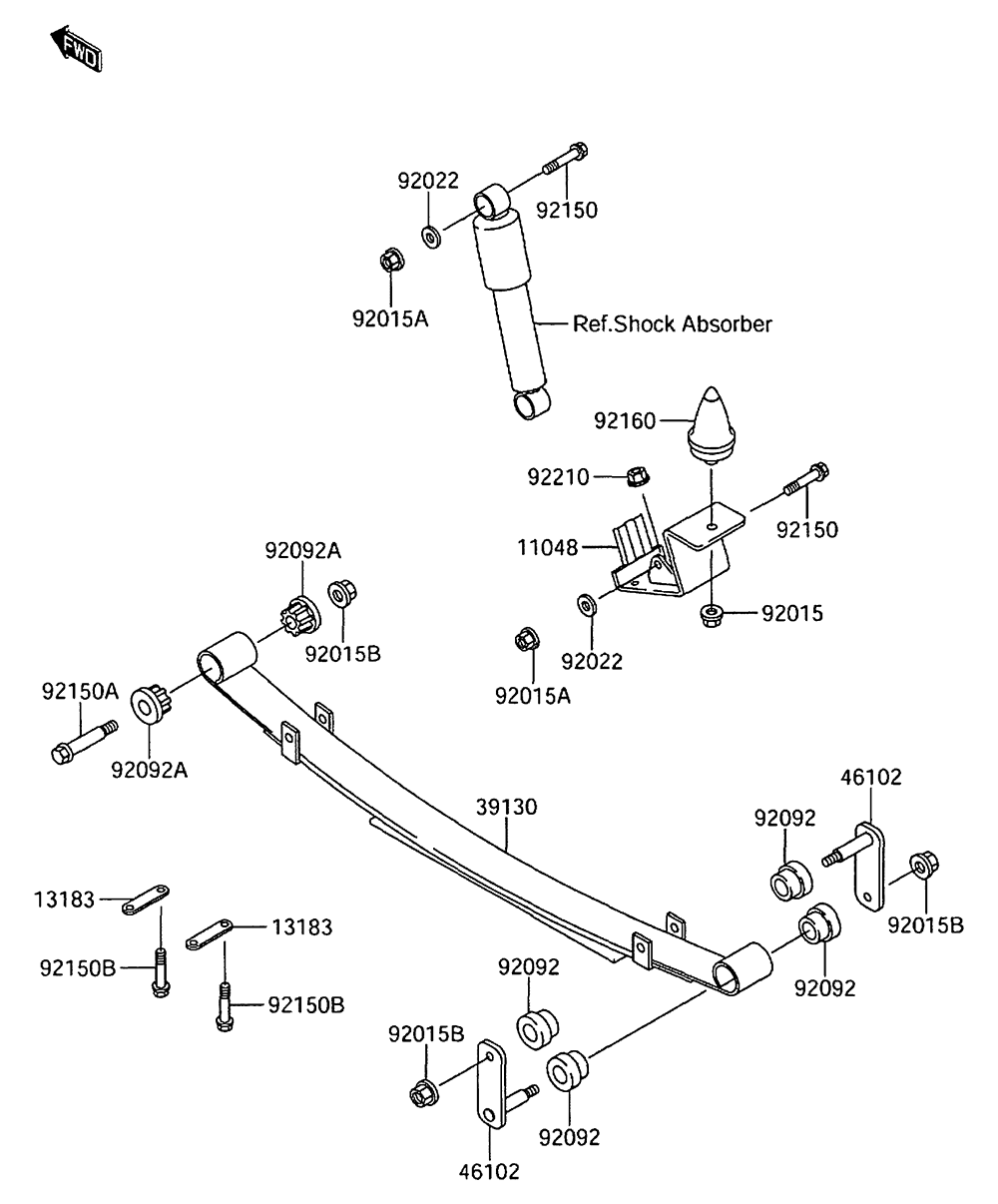

REAR SUSPENSION для Suzuki QUV 620 AUTO 4X4 - 2005 года выпуска
-
№АртикулНазвание
-
11048K1104-81082 BRACKET, LEAF SPRINGBRACKET, LEAF SPRING
-
13183K1318-31447 PLATE, LEAF SPRINGPLATE, LEAF SPRING
-
39130K3913-01066 SPRING-LEAFSPRING-LEAF
-
46102K4610-21338 ROD, LEAF SPRING, RRROD, LEAF SPRING, RR
-
92015K9201-51335 NUT, FLANGED, 10MMNUT, FLANGED, 10MM
-
92015AK9201-51597 NUT, LOCK, 10MMNUT, LOCK, 10MM
-
92015BK9201-51706 NUT, 12MMNUT, 12MM
-
92022K9202-21768 WASHER, 11.5X20.5X1.6WASHER, 11.5X20.5X1.6
-
92092K9209-21083 BUSHING-RUBBERBUSHING-RUBBER
-
92092AK9209-21084 BUSHING-RUBBERBUSHING-RUBBER
-
92150K9215-01227 BOLT, FLANGED, 10X57BOLT, FLANGED, 10X57
-
92150AK9215-01284 BOLT, 12MMBOLT, 12MM
-
92150BK9215-01287 BOLT, 10X52BOLT, 10X52
-
92160K9216-01136 DAMPER, BUMP STOPPERDAMPER, BUMP STOPPER
-
92210K9221-01204 NUT, LOCK, 10MMNUT, LOCK, 10MM
