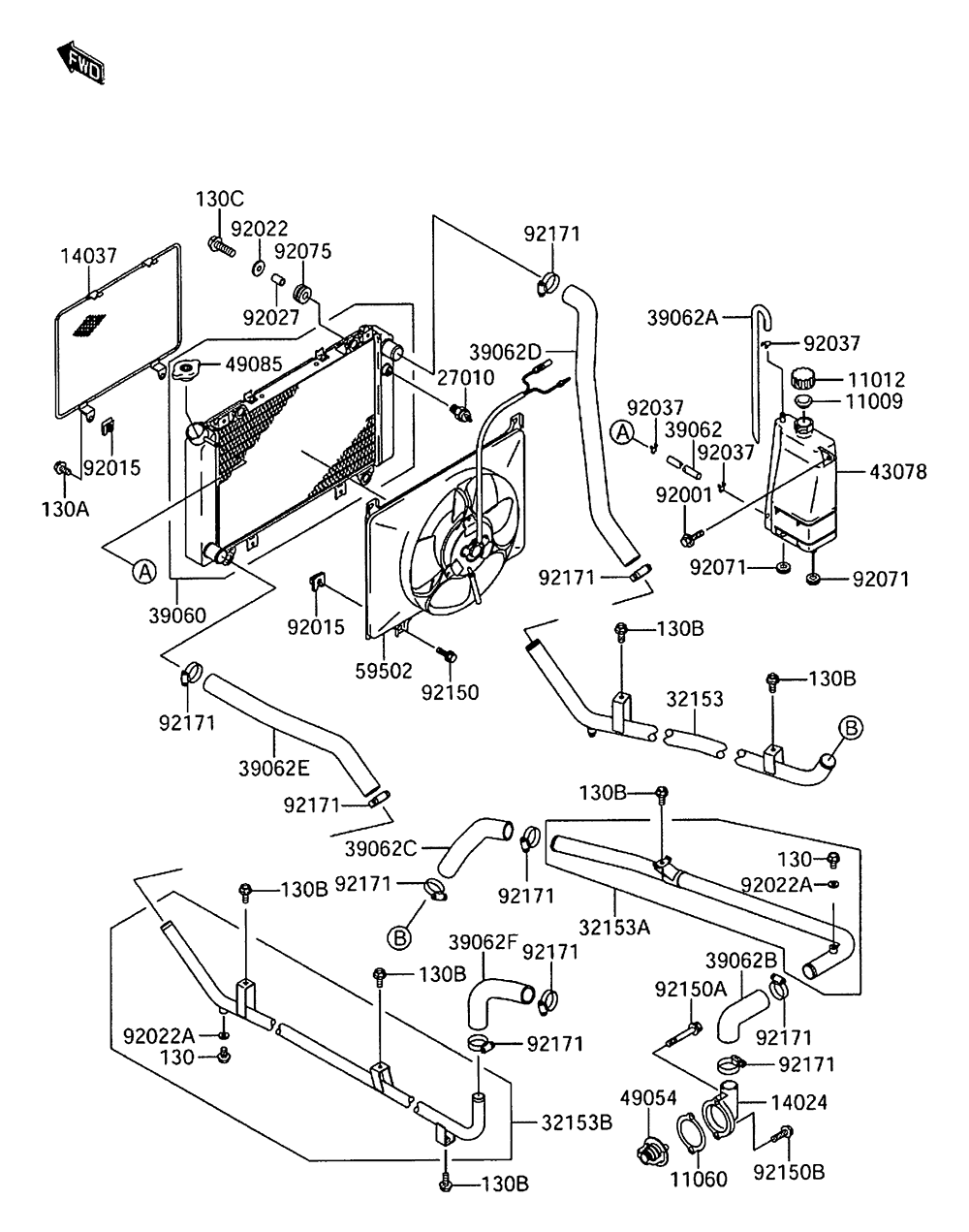

RADIATOR для Suzuki QUV 620 AUTO 4X4 - 2005 года выпуска
-
№АртикулНазвание
-
11009K1100-91145 GASKET, RESERVOIR TANK CAPGASKET, RESERVOIR TANK CAP
-
11012K1101-21084 CAPCAP
-
11060K1106-02084 GASKET, THERMOSTAT COVERGASKET, THERMOSTAT COVER
-
14024K1402-42293 COVER, THERMOSTATCOVER, THERMOSTAT
-
14037K1403-71284 SCREENSCREEN
-
27010K2701-01317 SWITCH, FANSWITCH, FAN
-
32153K3215-31056 PIPE, RHPIPE, RH
-
32153AK3215-31325 PIPE, RHPIPE, RH
-
32153BK3215-31326 PIPE, LHPIPE, LH
-
39060K3906-01187 RADIATORRADIATOR
-
39062K3906-21829 HOSE-COOLINGHOSE-COOLING
-
39062AK3906-21830 HOSE-COOLINGHOSE-COOLING
-
39062BK3906-21832 HOSE-COOLINGHOSE-COOLING
-
39062CK3906-21833 HOSE-COOLINGHOSE-COOLING
-
39062DK3906-21834 HOSE-COOLINGHOSE-COOLING
-
39062EK3906-21835 HOSE-COOLINGHOSE-COOLING
-
39062FK3906-21836 HOSE-COOLINGHOSE-COOLING
-
43078K4307-81185 RESERVOIRRESERVOIR
-
49054K4905-42056 THERMOSTATTHERMOSTAT
-
49085K4908-51066 CAP-ASSY-PRESSURECAP-ASSY-PRESSURE
-
59502K5950-21137 FAN-ASSYFAN-ASSY
-
92001K9200-11860 BOLT, W/P, 6X16BOLT, W/P, 6X16
-
92015K9201-51487 NUTNUT
-
92022K9202-21317 WASHER, 8.5X20X1.6, BLACKWASHER, 8.5X20X1.6, BLACK
-
92022AKK920-22304 WASHER, 6.2X11X1WASHER, 6.2X11X1
-
92027KK920-27102 COLLAR, 8.8X12X10.7COLLAR, 8.8X12X10.7
-
92037KK920-37147 CLAMP, TUBECLAMP, TUBE
-
92071K9207-11115 GROMMETGROMMET
-
92075KK920-75294 DAMPERDAMPER
-
92150K9215-01186 BOLT, 6X12BOLT, 6X12
-
92150AK9215-02230 BOLT, 6X40BOLT, 6X40
-
92150BK9215-02231 BOLT, 6X20BOLT, 6X20
-
92171K9217-10179 CLAMPCLAMP
-
130KK130-J0610 BOLT-FLANGEDBOLT-FLANGED
-
130AKK130-J0612 BOLT-FLANGEDBOLT-FLANGED
-
130BKK130-J0614 BOLT-FLANGED, 6X14, BLACKBOLT-FLANGED, 6X14, BLACK
-
130CKK130-S0825 BOLT-FLANGED, 8X25, BLACKBOLT-FLANGED, 8X25, BLACK
