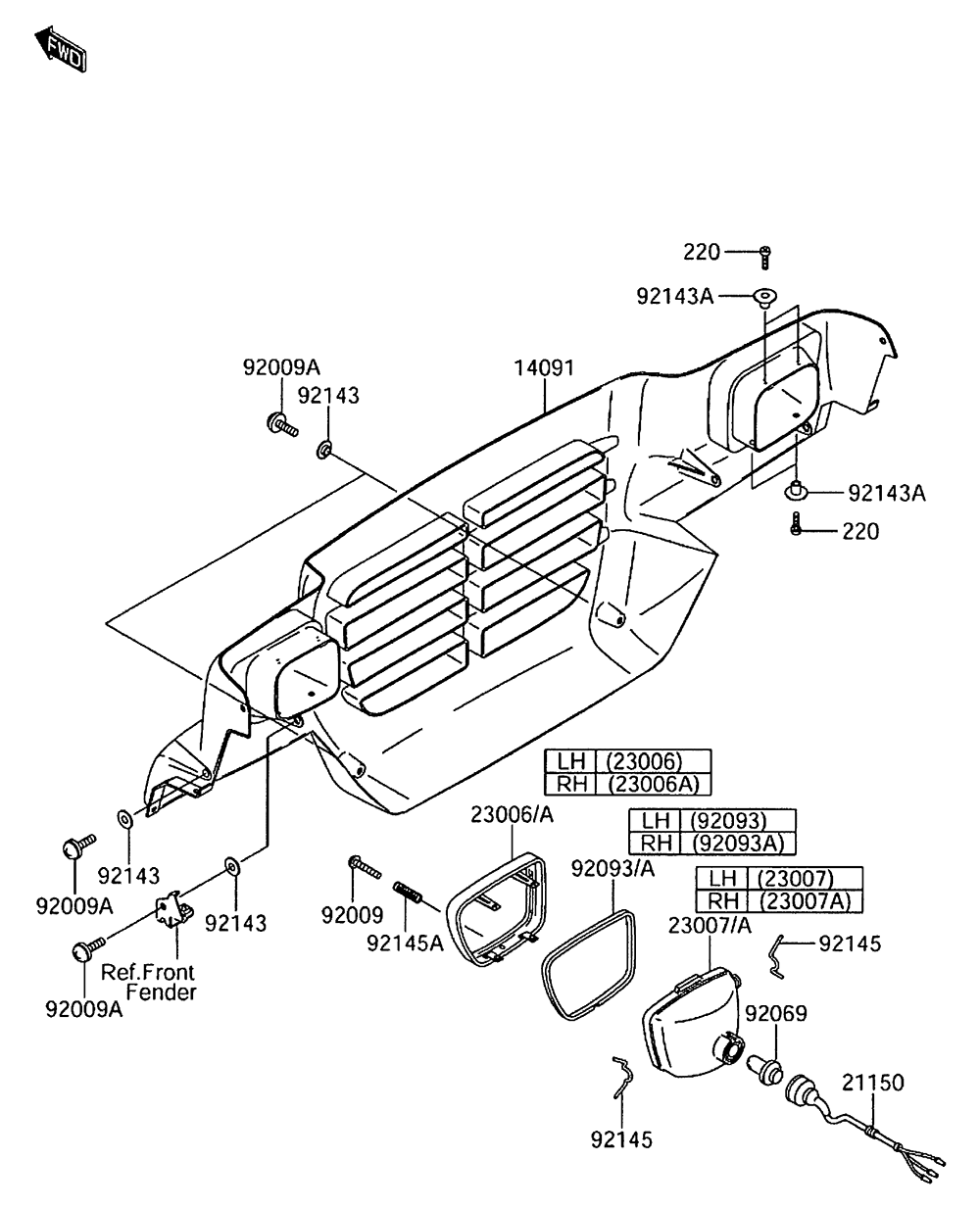

HEADLIGHT для Suzuki QUV 620 AUTO 4X4 - 2005 года выпуска
-
№АртикулНазвание
-
14091KK140-91122-56Z COVER, FRONT GRILL, F.BLACKCOVER, FRONT GRILL, F.BLACK
-
21150K2115-01060 CORD-ASSY, HEAD LAMPCORD-ASSY, HEAD LAMP
-
23006K2300-61075 RIM-LAMP, LHRIM-LAMP, LH
-
23006AK2300-61076 RIM-LAMP, RHRIM-LAMP, RH
-
23007K2300-71354 LENS-COMP, HEAD LAMP, LHLENS-COMP, HEAD LAMP, LH
-
23007AK2300-71355 LENS-COMP, HEAD LAMP, RHLENS-COMP, HEAD LAMP, RH
-
92009K9200-91139 SCREW, TAPPING, 4X30SCREW, TAPPING, 4X30
-
92009AK9200-91621 SCREW, 6X16SCREW, 6X16
-
92069K9206-91080 BULB, 12V 30/30WBULB, 12V 30/30W
-
92093K9209-31481 SEAL, HEAD LAMP, LHSEAL, HEAD LAMP, LH
-
92093AK9209-31482 SEAL, HEAD LAMP, RHSEAL, HEAD LAMP, RH
-
92143K9214-31087 COLLARCOLLAR
-
92143AK9214-31234 COLLARCOLLAR
-
92145K9214-51190 SPRINGSPRING
-
92145AK9214-51230 SPRINGSPRING
-
220KK220-F0516 SCREW-PAN-CROSSSCREW-PAN-CROSS
