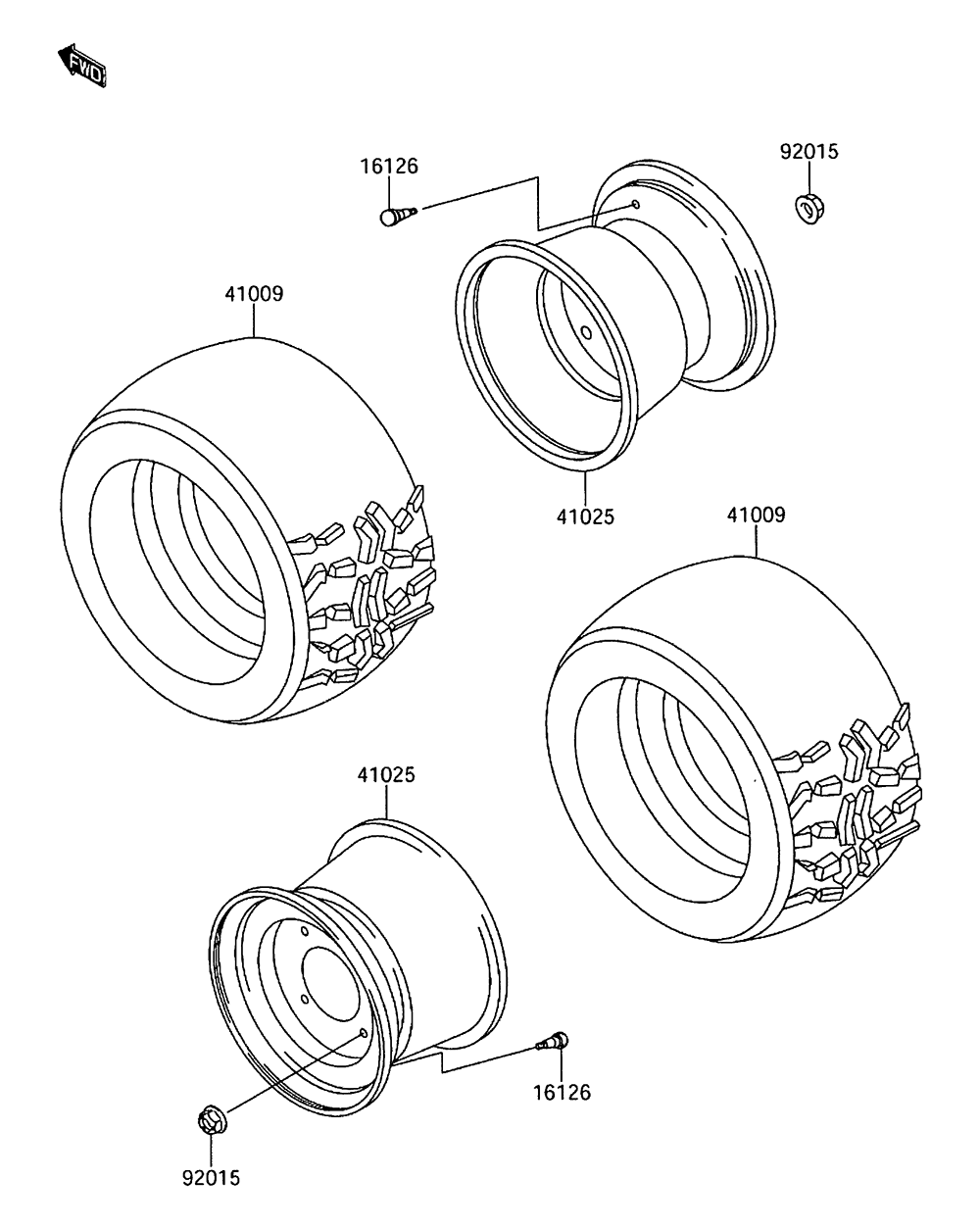

WHEEL - TIRE для Suzuki QUV 620 AUTO 4X4 - 2005 года выпуска
-
№АртикулНазвание
-
16126K1612-64001 VALVEVALVE
-
41009K4100-91281 TIRE, 23X11.00-10 4PR, KT869 (D)TIRE, 23X11.00-10 4PR, KT869 (D)
-
41025KK410-25139-410 RIM, 10X8.5, BLACKRIM, 10X8.5, BLACK
-
92015K9201-51706 NUT, 12MMNUT, 12MM
Все узлы модели:
- AIR CLEANER
- AIR CLEANER-BELT CONVERTER
- BEVEL GEAR CASE
- BRAKE - FRONT HUB
- BRAKE - LINES
- BRAKE - MASTER CYLINDER
- BRAKE - REAR HUB
- BRAKE PEDAL AND THROTTLE LEVER
- CABLES
- CAMSHAFT W/ VALVES
- CARBURETOR
- CARRIER - FRONT / REAR
- CONTROL
- CONVERTER COVER/DRIVE BELT
- CRANKCASE
- CRANKSHAFT W/ PISTON
- CYLINDER HEAD
- DECAL (BLUE)
- DECAL (YELLOW)
- DIFFERENTIAL
- DIFFERENTIAL - FRONT
- DRIVEN CONVERTER
- DRIVESHAFT - REAR
- DRIVE CONVERTER
- DRIVE SHAFT-PROPELLER
- ELECTRICAL
- ELECTRICAL - IGNITION SWITCH
- FENDER - FRONT
- FENDER - REAR
- FRAME
- FRAME FITTING
- FRAME FITTING (LEVER)
- FRONT SUSPENSION
- FUEL TANK
- FUEL PUMP
- GEAR BOX
- GEAR CHANGE MECHANISM
- GENERATOR/IGNITION COIL
- GUARD - CAB FRAME
- HEADLIGHT
- LABELS
- MUFFLER
- OIL PUMP/OIL FILTER
- OPTIONAL PARTS
- RADIATOR
- REAR SUSPENSION
- SEAT
- SHOCK ABSORBER
- STARTER MOTOR
- STEERING WHEEL
- TAILLIGHT ASSY.
- TRANSMISSION
- WATER PUMP
- • WHEEL - TIRE
