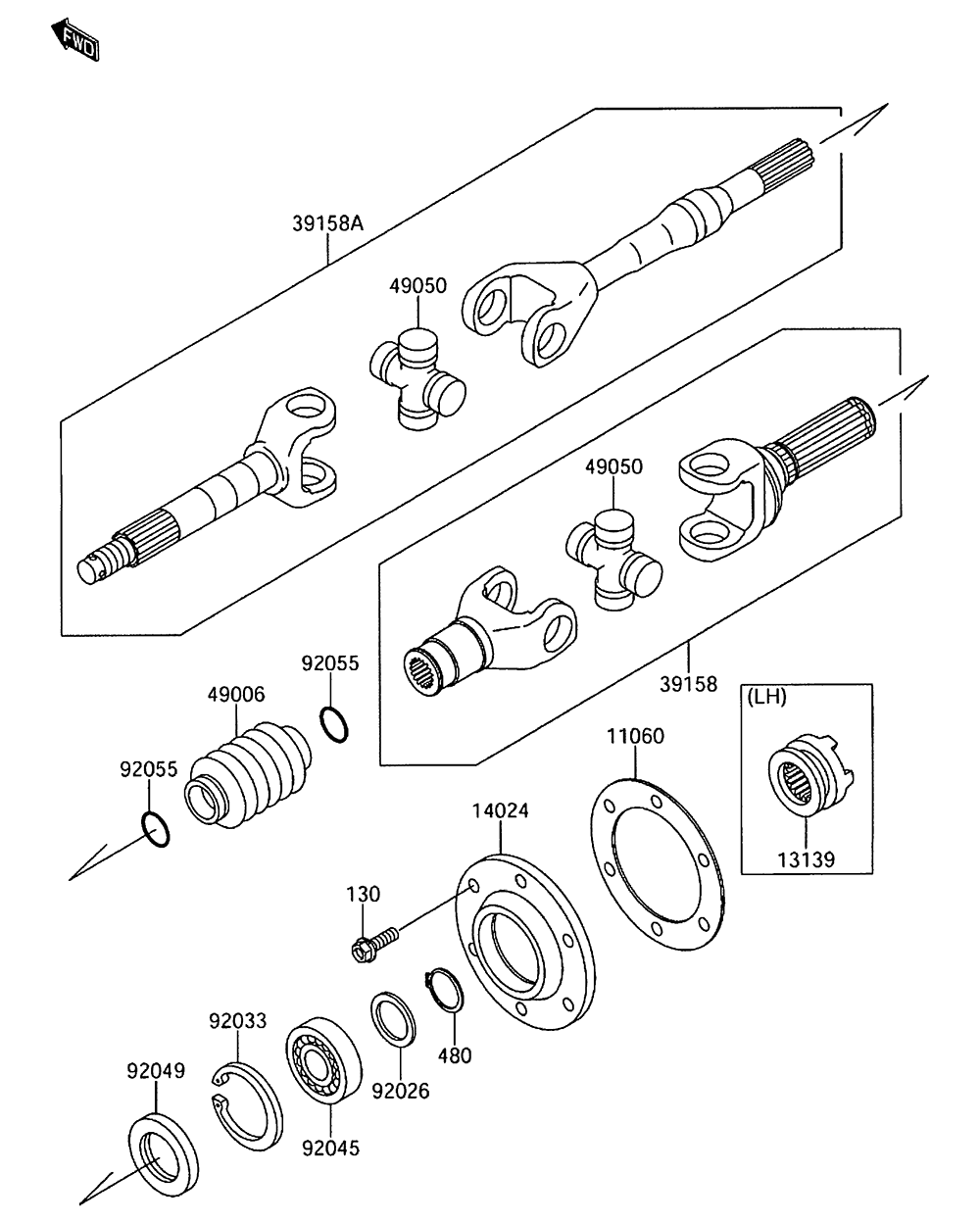

DRIVESHAFT - REAR для Suzuki QUV 620 AUTO 4X4 - 2005 года выпуска
-
№АртикулНазвание
-
11060K1106-01251 GASKET, DRIVESHAFT COVERGASKET, DRIVESHAFT COVER
-
13139K1313-91078 SHIFTERSHIFTER
-
14024K1402-41560 COVER, DRIVESHAFTCOVER, DRIVESHAFT
-
39158K3915-81119 SHAFT-ASSY-DRIVE, INSIDESHAFT-ASSY-DRIVE, INSIDE
-
39158AK3915-81120 SHAFT-ASSY-DRIVESHAFT-ASSY-DRIVE
-
49006K4900-61257 BOOT, DRIVE SHAFTBOOT, DRIVE SHAFT
-
49050K4905-01060 SPIDERSPIDER
-
92026K9202-61489 SPACER, 28.1X38X2.6SPACER, 28.1X38X2.6
-
92033K9203-31274 RING-SNAP, 55MMRING-SNAP, 55MM
-
92045K9204-51208 BEARING-BALL, 6006BEARING-BALL, 6006
-
92049K9204-91298 SEAL-OIL, TC35X55X8SEAL-OIL, TC35X55X8
-
92055K9205-51451 RING-O, 19.5X3.0RING-O, 19.5X3.0
-
130KK130-H0825 BOLT-FLANGED, 8X25BOLT-FLANGED, 8X25
-
480KK480-J2800 CIRCLIP-TYPE-C, 28MMCIRCLIP-TYPE-C, 28MM
