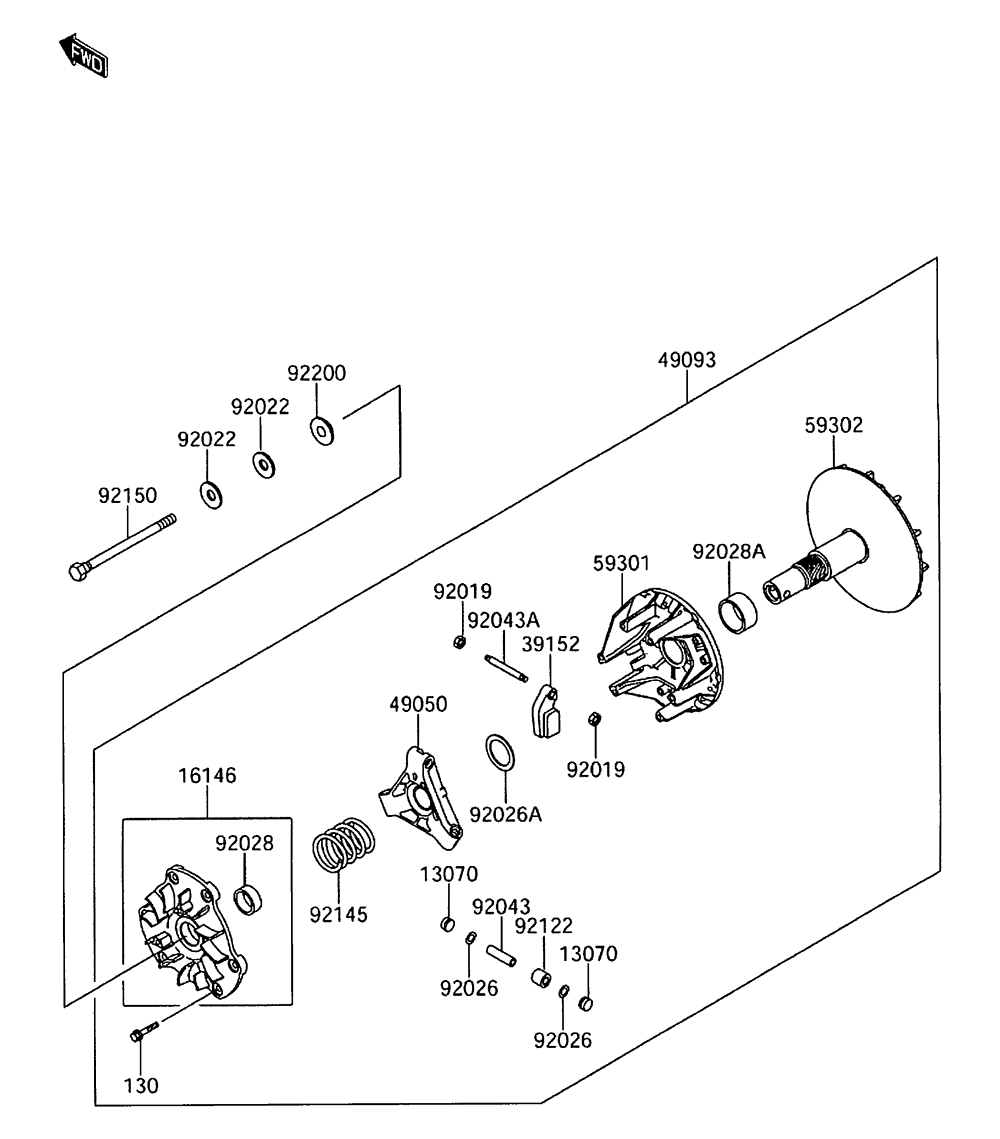

DRIVE CONVERTER для Suzuki QUV 620 AUTO 4X4 - 2005 года выпуска
-
№АртикулНазвание
-
13070K1307-01330 GUIDEGUIDE
-
16146K1614-61219 COVER-ASSYCOVER-ASSY
-
39152K3915-21078 WEIGHT-RAMPWEIGHT-RAMP
-
49050K4905-01076 SPIDERSPIDER
-
49093K4909-31069 CONVERTER-ASSY-DRIVECONVERTER-ASSY-DRIVE
-
59301K5930-11060 SHEAVE-MOVABLESHEAVE-MOVABLE
-
59302K5930-21085 SHEAVE-COMPSHEAVE-COMP
-
92019KK920-19008 NUT, LOCK, 6MMNUT, LOCK, 6MM
-
92022K9202-21901 WASHER, SPECIAL CONICALWASHER, SPECIAL CONICAL
-
92026K9202-61512 SPACERSPACER
-
92026AK9202-61591 SPACERSPACER
-
92028K9202-81861 BUSHINGBUSHING
-
92028AK9202-81864 BUSHINGBUSHING
-
92043K9204-31572 PINPIN
-
92043AK9204-31573 PINPIN
-
92122K9212-21204 ROLLERROLLER
-
92145K9214-51388 SPRINGSPRING
-
92150K9215-01008 BOLT, 12X163.5BOLT, 12X163.5
-
92200K9220-01401 WASHERWASHER
-
130KK130-P0630 BOLT-FLANGED, 6X30BOLT-FLANGED, 6X30
Все узлы модели:
- AIR CLEANER
- AIR CLEANER-BELT CONVERTER
- BEVEL GEAR CASE
- BRAKE - FRONT HUB
- BRAKE - LINES
- BRAKE - MASTER CYLINDER
- BRAKE - REAR HUB
- BRAKE PEDAL AND THROTTLE LEVER
- CABLES
- CAMSHAFT W/ VALVES
- CARBURETOR
- CARRIER - FRONT / REAR
- CONTROL
- CONVERTER COVER/DRIVE BELT
- CRANKCASE
- CRANKSHAFT W/ PISTON
- CYLINDER HEAD
- DECAL (BLUE)
- DECAL (YELLOW)
- DIFFERENTIAL
- DIFFERENTIAL - FRONT
- DRIVEN CONVERTER
- DRIVESHAFT - REAR
- • DRIVE CONVERTER
- DRIVE SHAFT-PROPELLER
- ELECTRICAL
- ELECTRICAL - IGNITION SWITCH
- FENDER - FRONT
- FENDER - REAR
- FRAME
- FRAME FITTING
- FRAME FITTING (LEVER)
- FRONT SUSPENSION
- FUEL TANK
- FUEL PUMP
- GEAR BOX
- GEAR CHANGE MECHANISM
- GENERATOR/IGNITION COIL
- GUARD - CAB FRAME
- HEADLIGHT
- LABELS
- MUFFLER
- OIL PUMP/OIL FILTER
- OPTIONAL PARTS
- RADIATOR
- REAR SUSPENSION
- SEAT
- SHOCK ABSORBER
- STARTER MOTOR
- STEERING WHEEL
- TAILLIGHT ASSY.
- TRANSMISSION
- WATER PUMP
- WHEEL - TIRE
