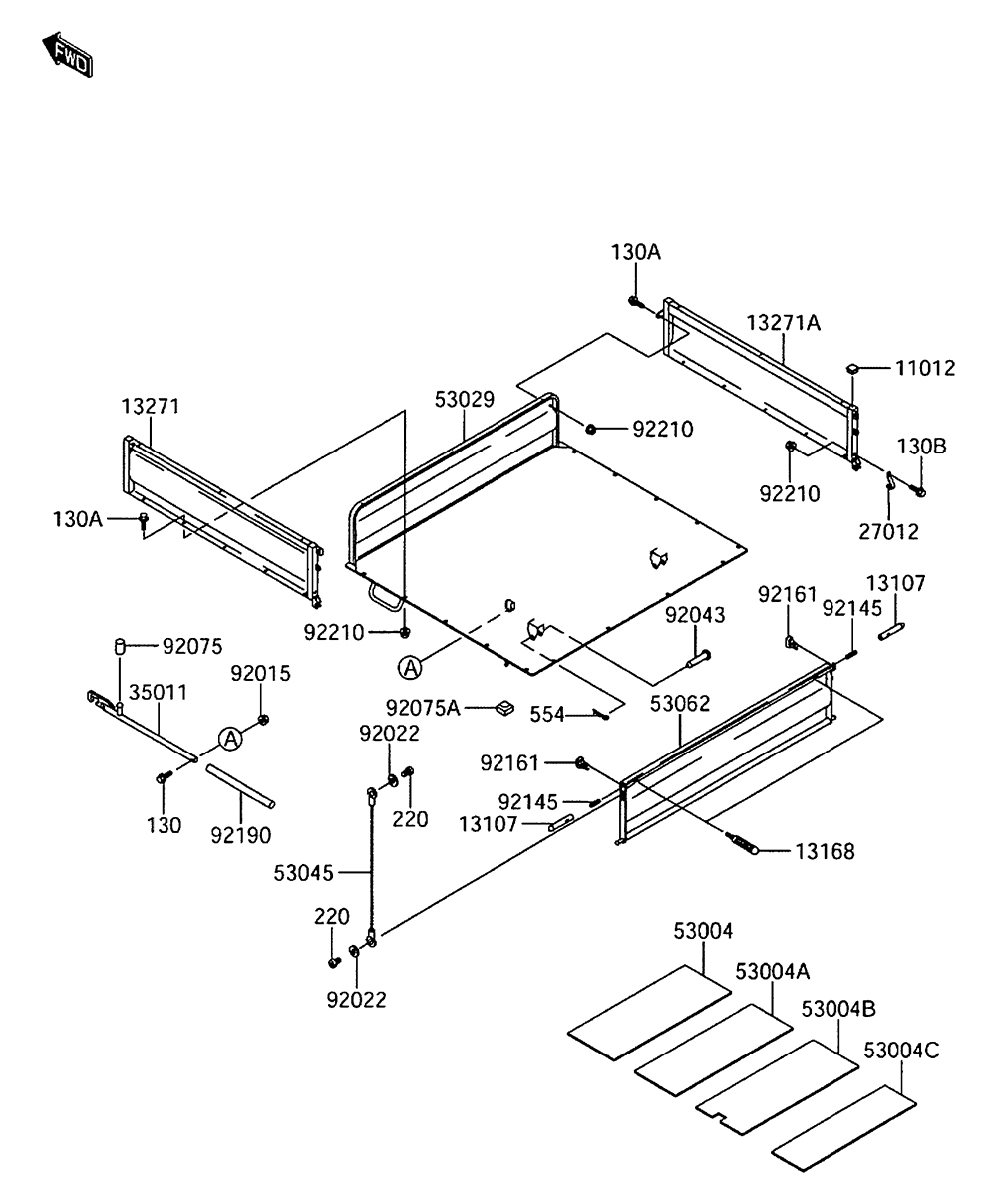

CARRIER - FRONT / REAR для Suzuki QUV 620 AUTO 4X4 - 2005 года выпуска
-
№АртикулНазвание
-
11012K1101-21784 CAPCAP
-
13107K1310-70001 SHAFTSHAFT
-
13168K1316-87501 LEVERLEVER
-
13271KK132-71009-910 PLATE, CARRIER, SIDE, LH, BLACKPLATE, CARRIER, SIDE, LH, BLACK
-
13271AKK132-71010-010 PLATE, CARRIER, SIDE, RH, BLACKPLATE, CARRIER, SIDE, RH, BLACK
-
27012K2701-20022 HOOK, TAIL GATEHOOK, TAIL GATE
-
35011K3501-11648 STAY, CARRIER STOPPERSTAY, CARRIER STOPPER
-
53004K5300-41157 MATMAT
-
53004AK5300-41158 MATMAT
-
53004BK5300-41159 MATMAT
-
53004CK5300-41160 MATMAT
-
53029KK530-29002-010 CARRIER, BLACKCARRIER, BLACK
-
53045K5304-50004 HOOK-ASSY, TAIL GATEHOOK-ASSY, TAIL GATE
-
53062KK530-62000-110 GATE-TAIL, BLACKGATE-TAIL, BLACK
-
92015K9201-51675 NUT, LOCK, FLANGED, 6MMNUT, LOCK, FLANGED, 6MM
-
92022K9202-21545 WASHER, 7X18X1.2WASHER, 7X18X1.2
-
92043K9204-31428 PIN, 12X65PIN, 12X65
-
92075K9207-51817 DAMPERDAMPER
-
92075AK9207-51882 DAMPERDAMPER
-
92145K9214-51215 SPRING, TENSIONERSPRING, TENSIONER
-
92161K9216-10083 DAMPERDAMPER
-
92190K9219-01401 TUBE, 13X16X200TUBE, 13X16X200
-
92210K9221-00004 NUT, FLANGED, 8MMNUT, FLANGED, 8MM
-
130KK130-H0630 BOLT-FLANGED, 6X30BOLT-FLANGED, 6X30
-
130AKK130-J0820 BOLT-FLANGED, 8X20BOLT-FLANGED, 8X20
-
130BKK130-J0850 BOLT-FLANGED, 8X50BOLT-FLANGED, 8X50
-
220KK220-F0610 SCREW-PAN-CROSSSCREW-PAN-CROSS
-
554KK554-A1200 PIN-SNAP, 12MMPIN-SNAP, 12MM
