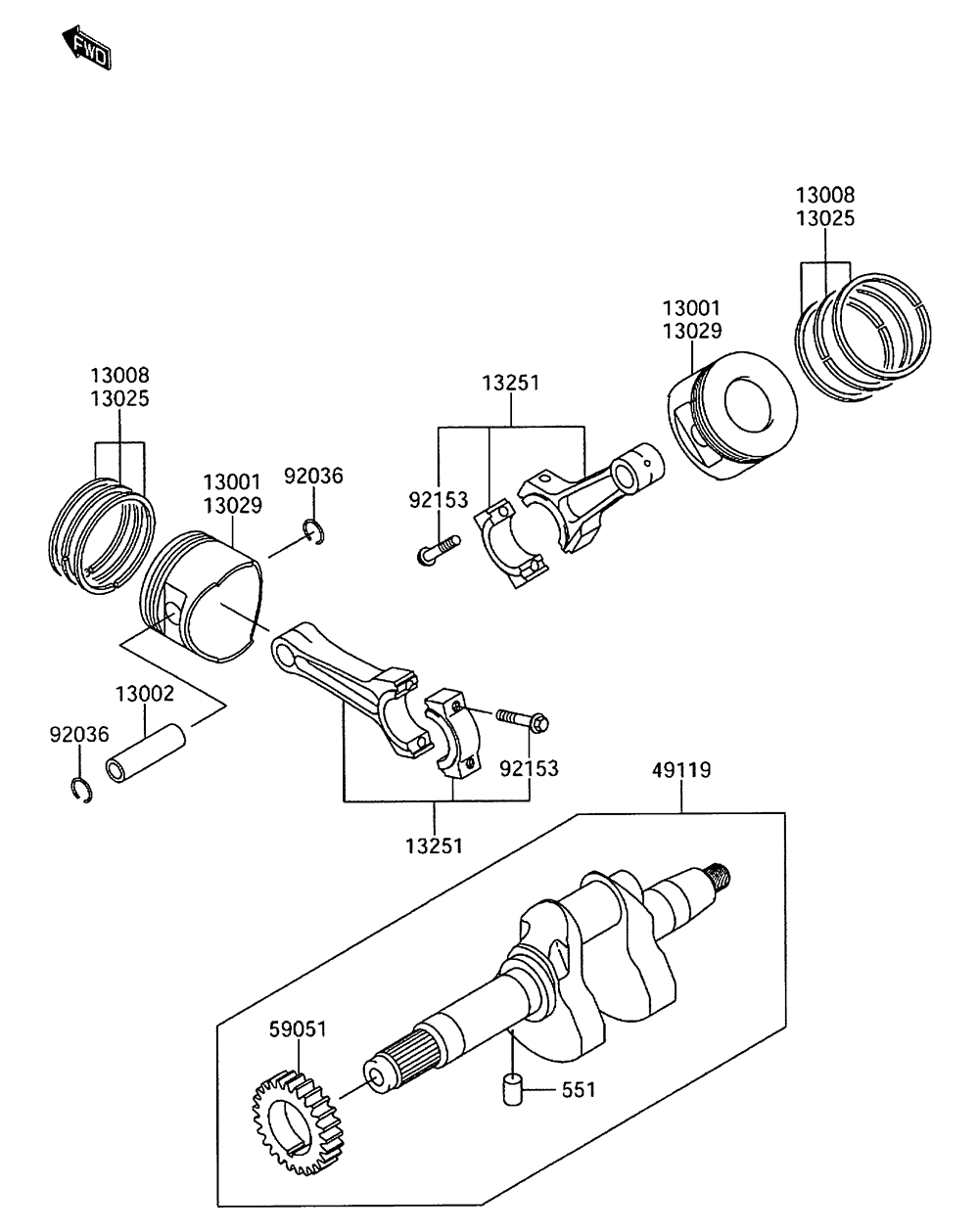

CRANKSHAFT W/ PISTON для Suzuki QUV 620 AUTO 4X4 - 2005 года выпуска
-
№АртикулНазвание
-
13001K1300-12131 PISTON-ENGINE, STDPISTON-ENGINE, STD
-
13002K1300-21013 PIN-PISTONPIN-PISTON
-
13008K1300-86025 RING-SET-PISTON, STDRING-SET-PISTON, STD
-
13025K1302-56008 RING-SET-PISTON L, 0.50RING-SET-PISTON L, 0.50
-
13029K1302-92105 PISTON-ENGINE L, 0.50PISTON-ENGINE L, 0.50
-
13251K1325-16068 ROD-ASSY-CONNECTINGROD-ASSY-CONNECTING
-
49119K4911-92200 CRANKSHAFT-ASSYCRANKSHAFT-ASSY
-
59051K5905-12112 GEAR-SPURGEAR-SPUR
-
92036KK920-36021 RING-SNAP, PISTON PINRING-SNAP, PISTON PIN
-
92153K9215-32054 BOLT, 7X35.2BOLT, 7X35.2
-
551KK551-A0408 PIN-DOWEL, 4X8PIN-DOWEL, 4X8
