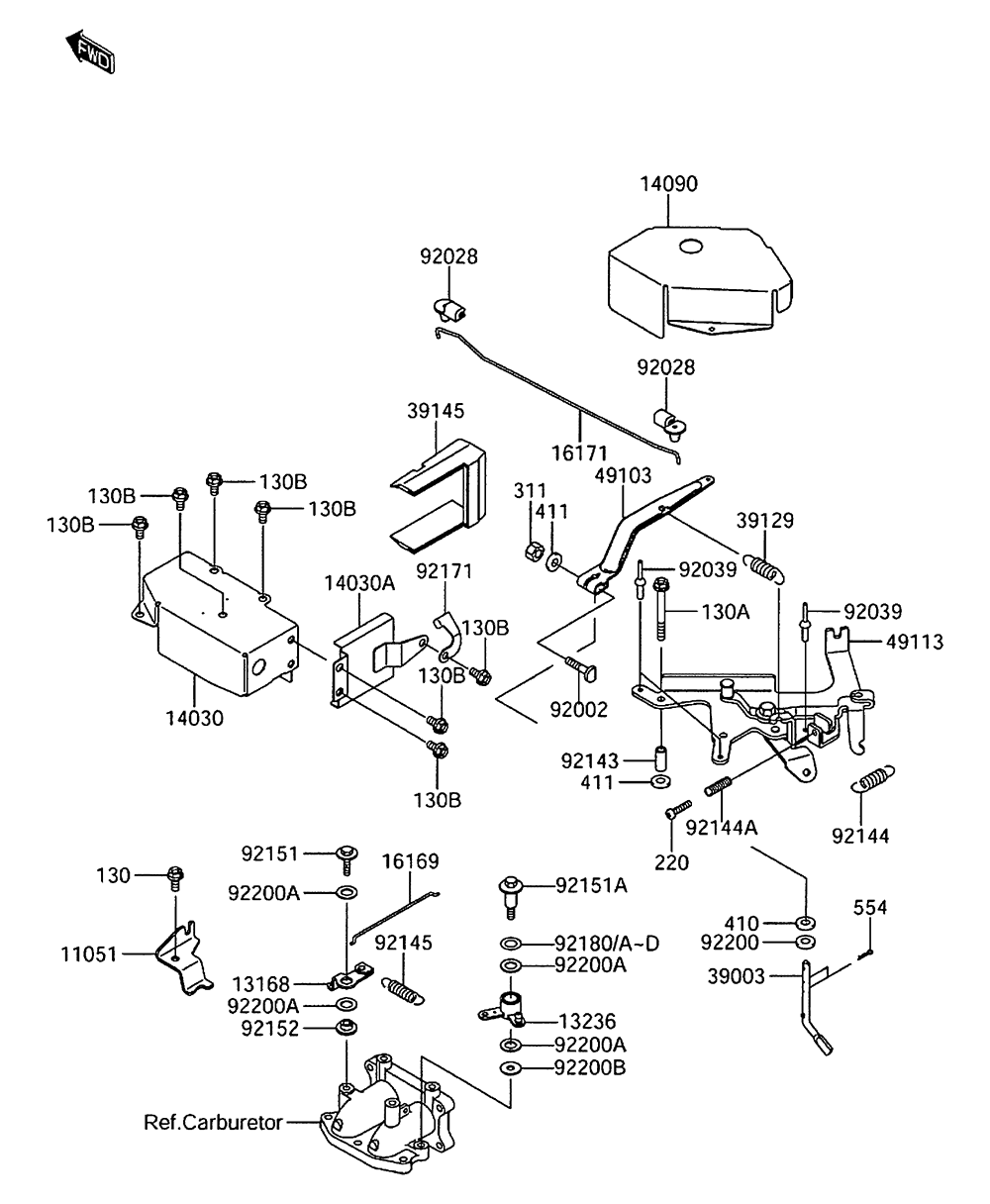

CONTROL для Suzuki QUV 620 AUTO 4X4 - 2005 года выпуска
-
№АртикулНазвание
-
11051K1105-12100 BRACKETBRACKET
-
13168K1316-82460 LEVERLEVER
-
13236K1323-62154 LEVER-COMPLEVER-COMP
-
14030K1403-01059 COVER-CARBURETORCOVER-CARBURETOR
-
14030AK1403-01060 COVER-CARBURETORCOVER-CARBURETOR
-
14090K1409-01335 COVER, CONTROL PANELCOVER, CONTROL PANEL
-
16169K1616-92140 LINK-CHOKELINK-CHOKE
-
16171K1617-11061 LINKLINK
-
39003K3900-31053 ARM-PIVOT, GOVERNORARM-PIVOT, GOVERNOR
-
39129K3912-91011 SPRING-GOVERNORSPRING-GOVERNOR
-
39145K3914-51128 TRIM-SEALTRIM-SEAL
-
49103K4910-31055 ARM-GOVERNORARM-GOVERNOR
-
49113K4911-31056 PANEL-COMP-CONTROLPANEL-COMP-CONTROL
-
92002K9200-22269 BOLT, 6X28BOLT, 6X28
-
92028K9202-82156 BUSHING, GOVERNORBUSHING, GOVERNOR
-
92039K9203-91163 RIVET, BLIND, 4.0X9.2RIVET, BLIND, 4.0X9.2
-
92143K9214-31072 COLLAR, 6.8X10X42COLLAR, 6.8X10X42
-
92144K9214-41410 SPRING, CONTROLSPRING, CONTROL
-
92144AK9214-42266 SPRINGSPRING
-
92145K9214-52088 SPRINGSPRING
-
92151K9215-12139 BOLTBOLT
-
92151AK9215-12140 BOLTBOLT
-
92152K9215-22069 COLLARCOLLAR
-
92171K9217-11350 CLAMPCLAMP
-
92180K9218-02055 SHIM, T=0.5SHIM, T=0.5
-
92180AK9218-02056 SHIM, T=0.4SHIM, T=0.4
-
92180BK9218-02057 SHIM, T=0.3SHIM, T=0.3
-
92180CK9218-02060 SHIM, T=0.6SHIM, T=0.6
-
92180DK9218-02061 SHIM, T=0.7SHIM, T=0.7
-
92200K9220-02029 WASHER, 6.5X11.5X2.0WASHER, 6.5X11.5X2.0
-
92200AK9220-02124 WASHER, 10.1X18X1.0WASHER, 10.1X18X1.0
-
92200BK9220-02125 WASHER, 6.1X18X1.0WASHER, 6.1X18X1.0
-
130KK130-G0614 BOLT-FLANGED, 6X14BOLT-FLANGED, 6X14
-
130AKK130-G0655 BOLT-FLANGED, 6X55BOLT-FLANGED, 6X55
-
130BKK130-J0612 BOLT-FLANGEDBOLT-FLANGED
-
220KK220-B0522 SCREW-PAN-CROSSSCREW-PAN-CROSS
-
311KK311-B0600 NUT-HEX, 6MMNUT-HEX, 6MM
-
410KK410-B0600 WASHER-PLAIN-SMALL, 6MMWASHER-PLAIN-SMALL, 6MM
-
411KK411-B0600 WASHER-PLAIN, 6MMWASHER-PLAIN, 6MM
-
554KK554-A0600 PIN-SNAPPIN-SNAP
