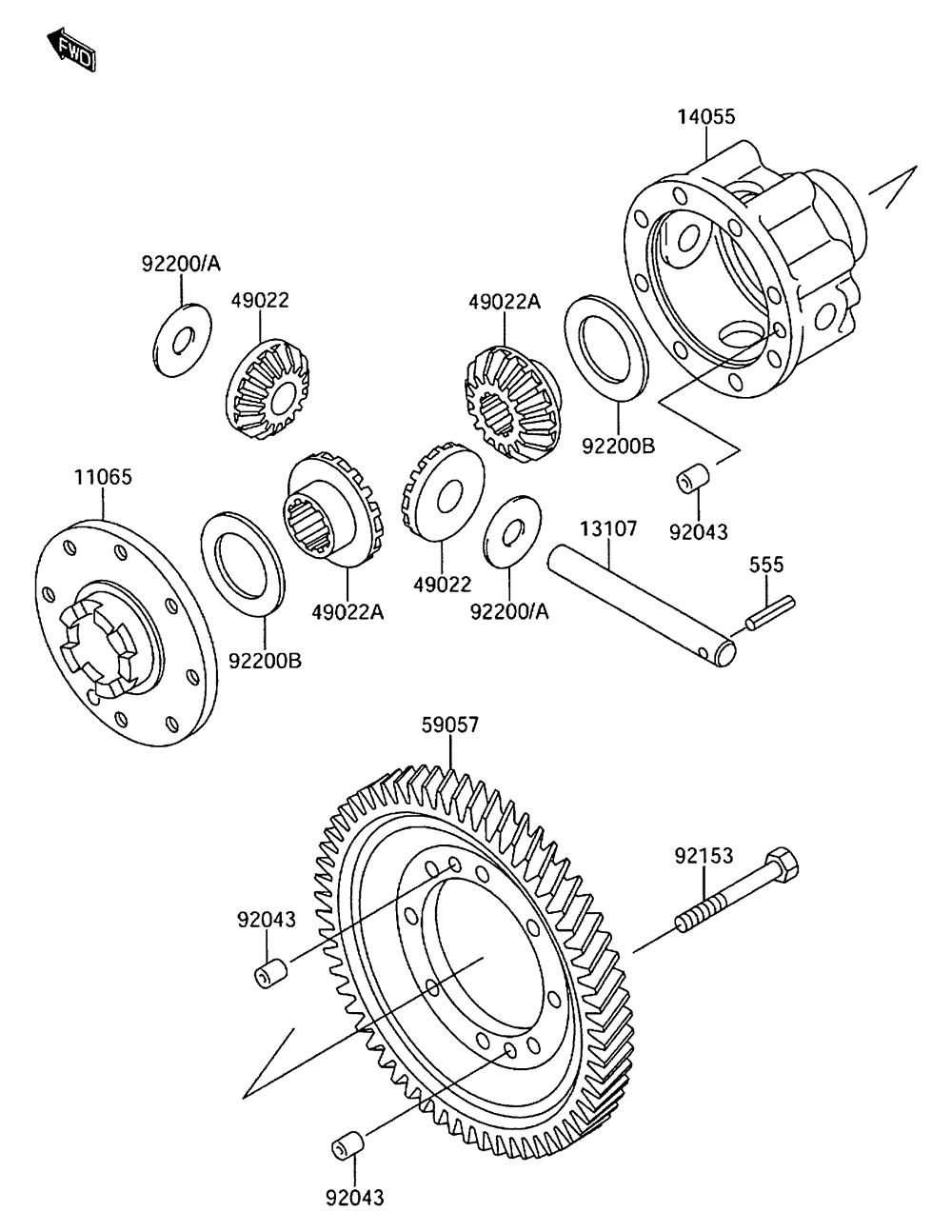

DIFFERENTIAL для Suzuki QUV 620 AUTO 4X4 - 2005 года выпуска
-
№АртикулНазвание
-
11065K1106-50033 CAP, GEAR CASECAP, GEAR CASE
-
13107K1310-70009 SHAFTSHAFT
-
14055K1405-50003 CASE-GEAR, DIFFERENTIALCASE-GEAR, DIFFERENTIAL
-
49022K4902-21105 GEAR-BEVEL, 10TGEAR-BEVEL, 10T
-
49022AK4902-21117 GEAR-BEVEL, 16TGEAR-BEVEL, 16T
-
59057K5905-70002 GEAR-HELICAL, DIFFERENTIALGEAR-HELICAL, DIFFERENTIAL
-
92043K9204-30029 PIN, 10X12PIN, 10X12
-
92153K9215-30331 BOLT, 10X63BOLT, 10X63
-
92200K9220-00021 WASHER, 14.5X38X1.2WASHER, 14.5X38X1.2
-
92200AK9220-01044 WASHER, 14.5X38X1.0WASHER, 14.5X38X1.0
-
92200BK9220-01045 WASHER, 35.5X54X1.0WASHER, 35.5X54X1.0
-
555KK555-A0525 PIN-SPRINGPIN-SPRING
