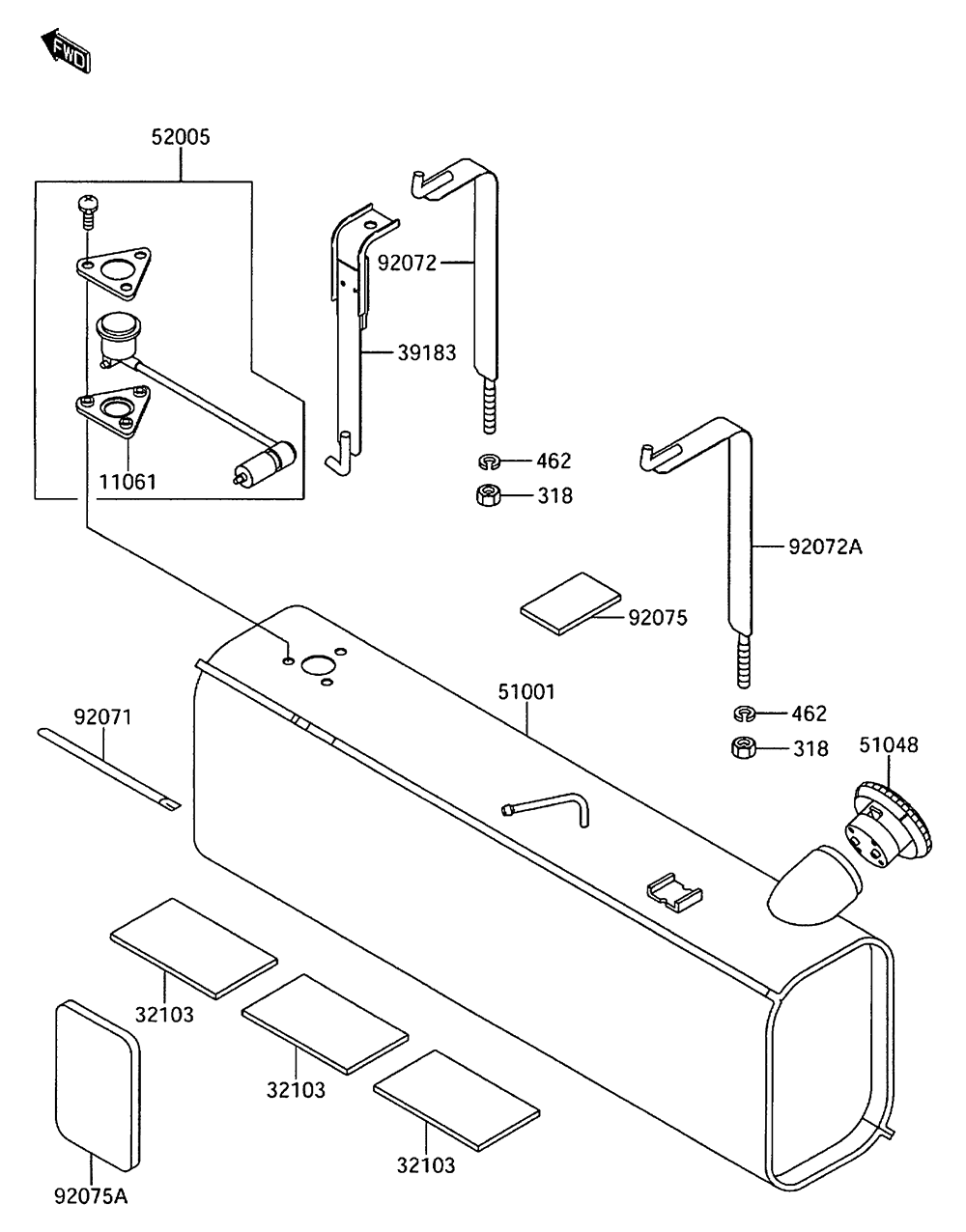

FUEL TANK для Suzuki QUV 620 AUTO 4X4 - 2005 года выпуска
-
№АртикулНазвание
-
11061K1106-10120 GASKET, FUEL GAUGEGASKET, FUEL GAUGE
-
32103KK321-03027 DAMPER, BATTERYDAMPER, BATTERY
-
39183K3918-30001 BAND-ASSYBAND-ASSY
-
51001K5100-10010 TANK-COMP-FUELTANK-COMP-FUEL
-
51048K5104-80005 CAP-ASSY-TANK, FUELCAP-ASSY-TANK, FUEL
-
52005K5200-50013 GAUGE, FUELGAUGE, FUEL
-
92071K9207-11198 GROMMETGROMMET
-
92072K9207-20018 BAND, FUEL TANKBAND, FUEL TANK
-
92072AK9207-21248 BAND, FUEL TANKBAND, FUEL TANK
-
92075K9207-51830 DAMPERDAMPER
-
92075AK9207-53759 DAMPERDAMPER
-
318KK318-C0800 NUT-HEX-SMALLNUT-HEX-SMALL
-
462KK462-L0800 WASHER-SPRING, 8MMWASHER-SPRING, 8MM
