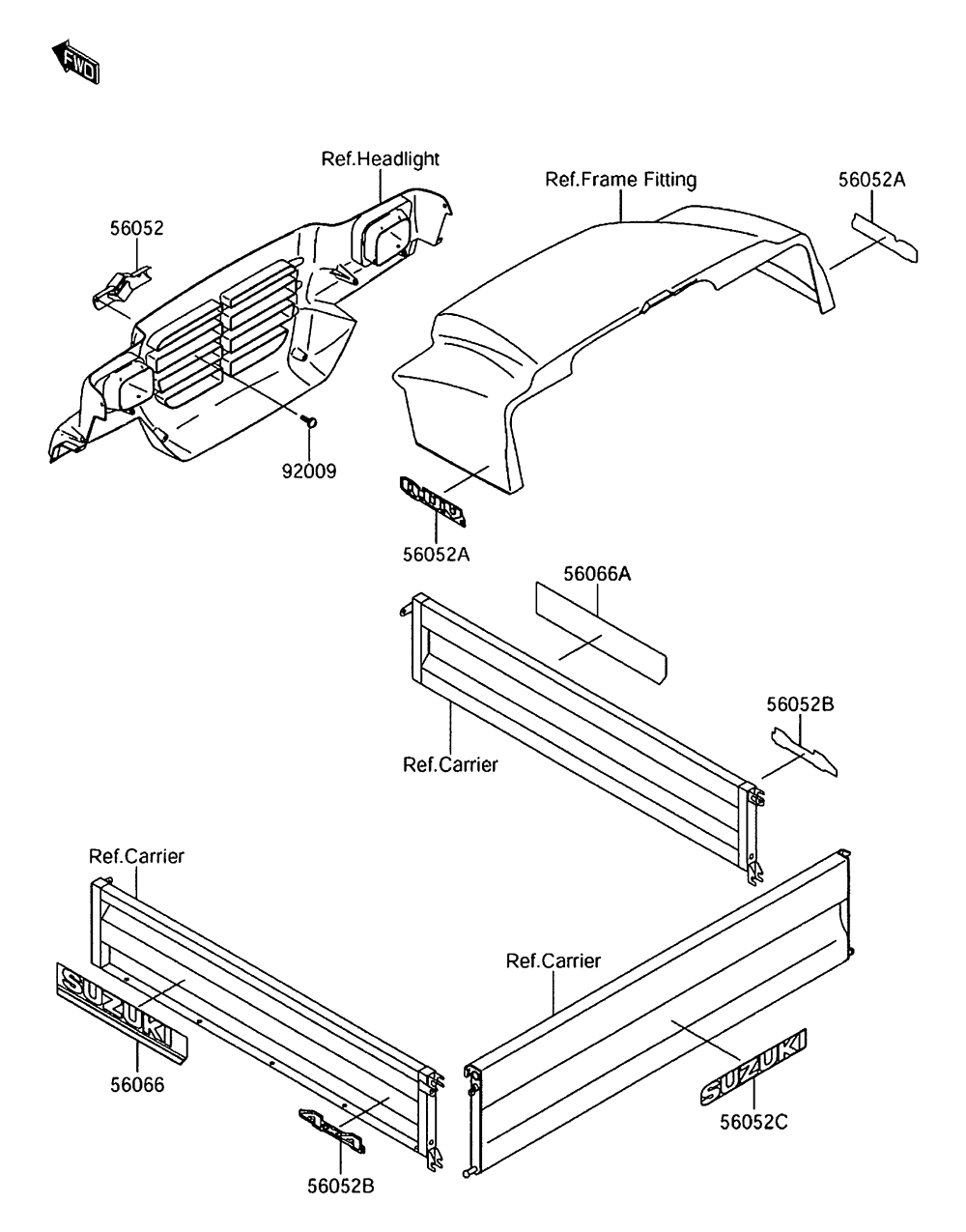

DECAL (YELLOW) для Suzuki QUV 620 AUTO 4X4 - 2005 года выпуска
-
№АртикулНазвание
-
56052K5605-20440 MARK, FRONT GUARD, SMARK, FRONT GUARD, S
-
56052AK5605-20564 MARK, FR FENDER, Q.U.V.MARK, FR FENDER, Q.U.V.
-
56052BK5605-20444 MARK, SIDE PLATE, 4X4MARK, SIDE PLATE, 4X4
-
56052CK5605-20445 MARK, TAIL GATE, SUZUKIMARK, TAIL GATE, SUZUKI
-
56066K5606-61674 PATTERN, SIDE PLATE, LHPATTERN, SIDE PLATE, LH
-
56066AK5606-61675 PATTERN, SIDE PLATE, RHPATTERN, SIDE PLATE, RH
-
92009K9200-91444 SCREW, TAPPING, 4X12SCREW, TAPPING, 4X12
Все узлы модели:
- AIR CLEANER
- AIR CLEANER-BELT CONVERTER
- BEVEL GEAR CASE
- BRAKE - FRONT HUB
- BRAKE - LINES
- BRAKE - MASTER CYLINDER
- BRAKE - REAR HUB
- BRAKE PEDAL AND THROTTLE LEVER
- CABLES
- CAMSHAFT W/ VALVES
- CARBURETOR
- CARRIER - FRONT / REAR
- CONTROL
- CONVERTER COVER/DRIVE BELT
- CRANKCASE
- CRANKSHAFT W/ PISTON
- CYLINDER HEAD
- DECAL (BLUE)
- • DECAL (YELLOW)
- DIFFERENTIAL
- DIFFERENTIAL - FRONT
- DRIVEN CONVERTER
- DRIVESHAFT - REAR
- DRIVE CONVERTER
- DRIVE SHAFT-PROPELLER
- ELECTRICAL
- ELECTRICAL - IGNITION SWITCH
- FENDER - FRONT
- FENDER - REAR
- FRAME
- FRAME FITTING
- FRAME FITTING (LEVER)
- FRONT SUSPENSION
- FUEL TANK
- FUEL PUMP
- GEAR BOX
- GEAR CHANGE MECHANISM
- GENERATOR/IGNITION COIL
- GUARD - CAB FRAME
- HEADLIGHT
- LABELS
- MUFFLER
- OIL PUMP/OIL FILTER
- OPTIONAL PARTS
- RADIATOR
- REAR SUSPENSION
- SEAT
- SHOCK ABSORBER
- STARTER MOTOR
- STEERING WHEEL
- TAILLIGHT ASSY.
- TRANSMISSION
- WATER PUMP
- WHEEL - TIRE
