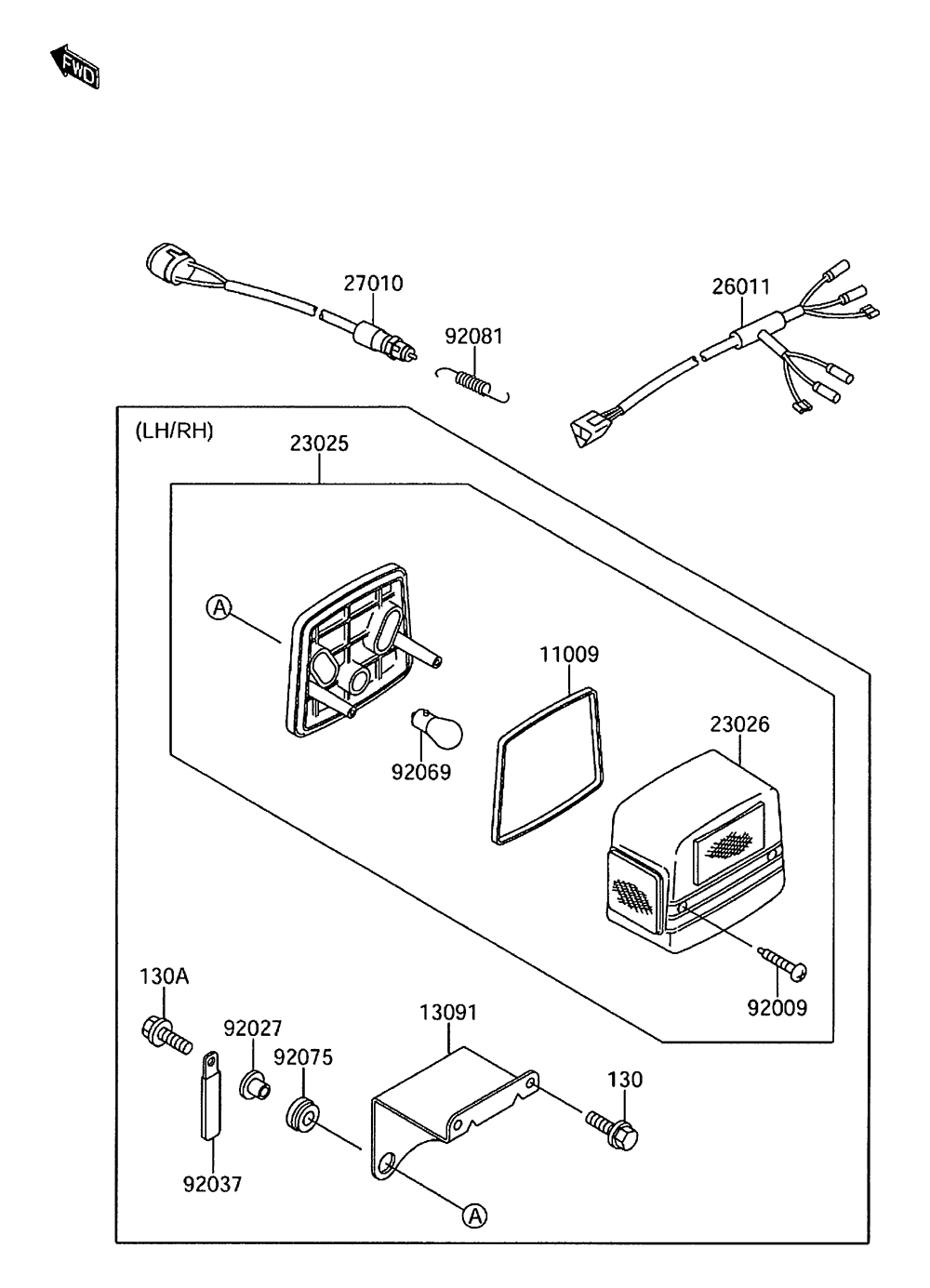

TAILLIGHT ASSY. для Suzuki QUV 620 AUTO 4X4 - 2005 года выпуска
-
№АртикулНазвание
-
11009K1100-91215 GASKET, TAIL LAMPGASKET, TAIL LAMP
-
13091K1309-11743 HOLDER, TAIL LAMPHOLDER, TAIL LAMP
-
23025K2302-51042 LAMP-TAILLAMP-TAIL
-
23026K2302-61019 LENS, TAIL LAMPLENS, TAIL LAMP
-
26011K2601-11756 WIRE-LEADWIRE-LEAD
-
27010K2701-01343 SWITCH, BRAKE LAMPSWITCH, BRAKE LAMP
-
92009K9200-91069 SCREW, TAPPING, 4X25SCREW, TAPPING, 4X25
-
92027KK920-27194 COLLAR, L=11.1COLLAR, L=11.1
-
92037K9203-71069 CLAMP, L=60CLAMP, L=60
-
92069K9206-91011 BULB, 12V20/5WBULB, 12V20/5W
-
92075KK920-75277 DAMPERDAMPER
-
92081K9208-11466 SPRING, HOOK RETURNSPRING, HOOK RETURN
-
130KK130-J0616 BOLT-FLANGED, 6X16, BLACKBOLT-FLANGED, 6X16, BLACK
-
130AKK130-J0620 BOLT-FLANGEDBOLT-FLANGED
