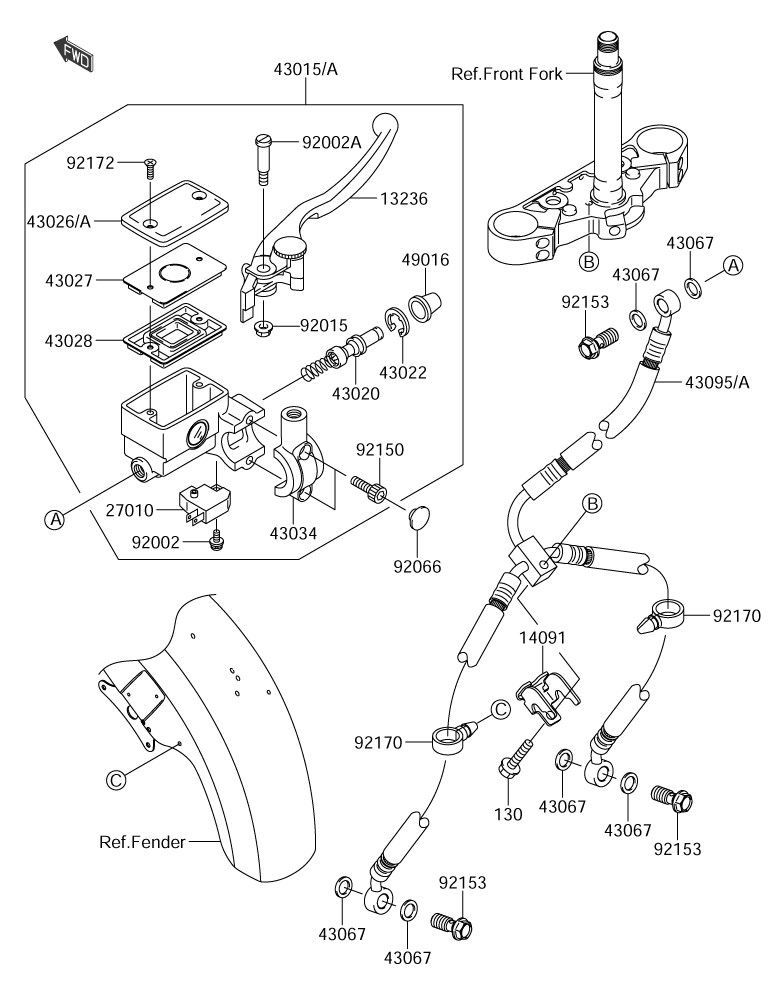

BRAKE - FRONT MASTER CYLINDER для Suzuki VZ1600 K5 - 2005 года выпуска
-
№АртикулНазвание
-
13236K1323-61315 LEVER COMP, FRONT BRAKELEVER COMP, FRONT BRAKE
-
14091K1409-11450 COVER, 3 WAY JOINTCOVER, 3 WAY JOINT
-
27010K2701-00025 SWITCH, BRAKESWITCH, BRAKE
-
43015K4301-50023 CYLINDER ASSY MASTER (FRONT)CYLINDER ASSY MASTER (FRONT)
-
43015K4301-50025 CYLINDER ASSY MASTER (FRONT)CYLINDER ASSY MASTER (FRONT)
-
43020K4302-01054 PISTON COMP BRAKE (FRONT)PISTON COMP BRAKE (FRONT)
-
43022K4302-21010 STOPPER BRAKE, PISTONSTOPPER BRAKE, PISTON
-
43026K4302-60002 CAP BRAKECAP BRAKE
-
43026K4302-60003 CAP BRAKECAP BRAKE
-
43027K4302-71059 PLATE DIAPHRAGMPLATE DIAPHRAGM
-
43028K4302-81058 DIAPHRAGM, MASTER CYLINDERDIAPHRAGM, MASTER CYLINDER
-
43034K4303-41172 HOLDER BRAKEHOLDER BRAKE
-
43067KK430-67001 WASHER, 10.5X15X1.5WASHER, 10.5X15X1.5
-
43095K4309-50076 HOSE BRAKE, FRHOSE BRAKE, FR
-
43095K4309-51324 HOSE BRAKE, FRHOSE BRAKE, FR
-
49016K4901-61044 COVER SEAL, MASTER CYLINDERCOVER SEAL, MASTER CYLINDER
-
92002K9200-21323 BOLT, SCREW, 4X12BOLT, SCREW, 4X12
-
92002K9200-21561 BOLT, LEVER SETBOLT, LEVER SET
-
92015K9201-51528 NUT, FLANGED, 6MMNUT, FLANGED, 6MM
-
92066K9206-61301 PLUGPLUG
-
92150K9215-01025 BOLT, SOCKET, 6MMBOLT, SOCKET, 6MM
-
92153K9215-30627 BOLT, OIL, L=23BOLT, OIL, L=23
-
92170K9217-01067 CLAMPCLAMP
-
92172K9217-20083 SCREWSCREW
-
130KK130-J0630 BOLT FLANGED, 6X30, BLACKBOLT FLANGED, 6X30, BLACK
