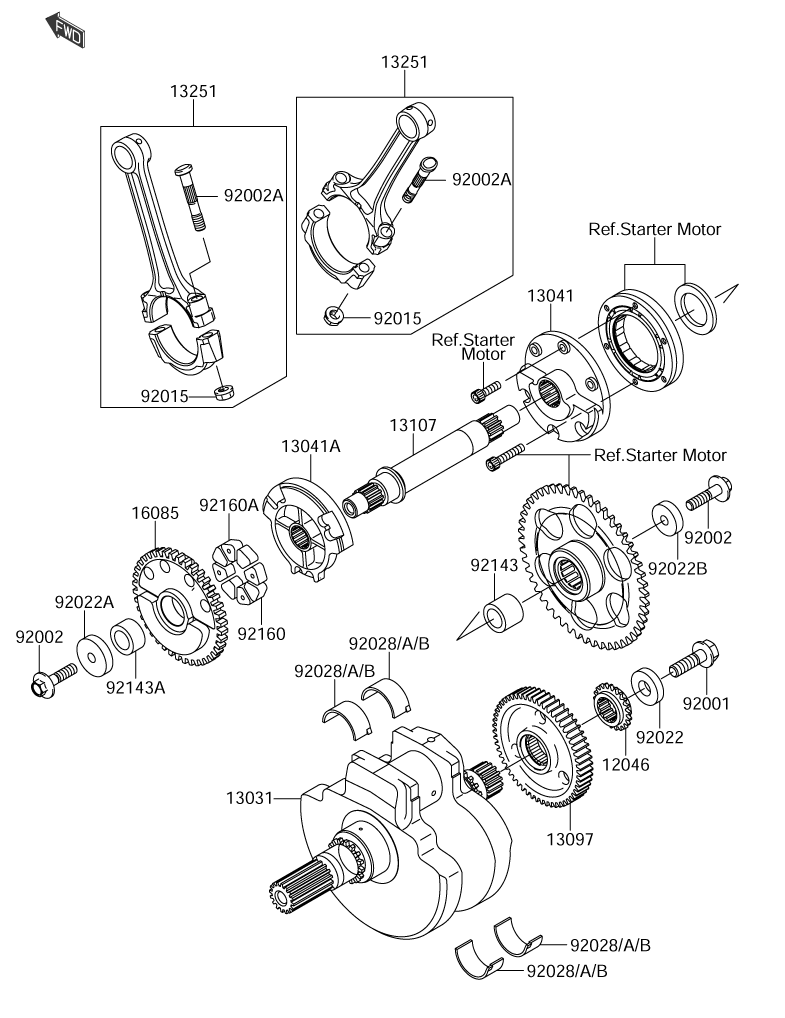

CRANKSHAFT W/ PISTON для Suzuki VZ1600 K5 - 2005 года выпуска
-
№АртикулНазвание
-
12046K1204-61103 SPROCKET, WATER PUMPSPROCKET, WATER PUMP
-
13031K1303-10019 CRANKSHAFT COMPCRANKSHAFT COMP
-
13041K1304-11089 BALANCER (RIGHT)BALANCER (RIGHT)
-
13041K1304-11093 BALANCER (LEFT)BALANCER (LEFT)
-
13097K1309-71369 GEAR PRIMARY SPUR (56 TEETH)GEAR PRIMARY SPUR (56 TEETH)
-
13107K1310-71524 SHAFT, BALANCERSHAFT, BALANCER
-
13251KK132-51114-7DD ROD ASSY CONNECTING, DROD ASSY CONNECTING, D
-
16085K1608-51366 GEAR, BALANCER (46 TEETH)GEAR, BALANCER (46 TEETH)
-
92001K9200-11146 BOLT, FLANGED, 12X40BOLT, FLANGED, 12X40
-
92002K9200-21296 BOLT, FLANGED, 10X40BOLT, FLANGED, 10X40
-
92002K9200-21896 BOLT, CONNECTING RODBOLT, CONNECTING ROD
-
92015K9201-51643 NUT, CONNECTING RODNUT, CONNECTING ROD
-
92022K9202-21904 WASHER, 12X40X6WASHER, 12X40X6
-
92022K9202-21905 WASHER, 10X40X6WASHER, 10X40X6
-
92022K9202-21906 WASHER, 10X33X6WASHER, 10X33X6
-
92028K9202-81474 BUSHING, CONNECTING ROD (BLUE)BUSHING, CONNECTING ROD (BLUE)
-
92028K9202-81475 BUSHING, CONNECTING ROD (BLACK)BUSHING, CONNECTING ROD (BLACK)
-
92028K9202-81476 BUSHING, CONNECTING ROD (BROWN)BUSHING, CONNECTING ROD (BROWN)
-
92143K9214-31093 COLLAR, 20X30X24COLLAR, 20X30X24
-
92143K9214-31821 COLLAR, 20X31X16COLLAR, 20X31X16
-
92160K9216-01725 DAMPERDAMPER
-
92160K9216-01726 DAMPERDAMPER
