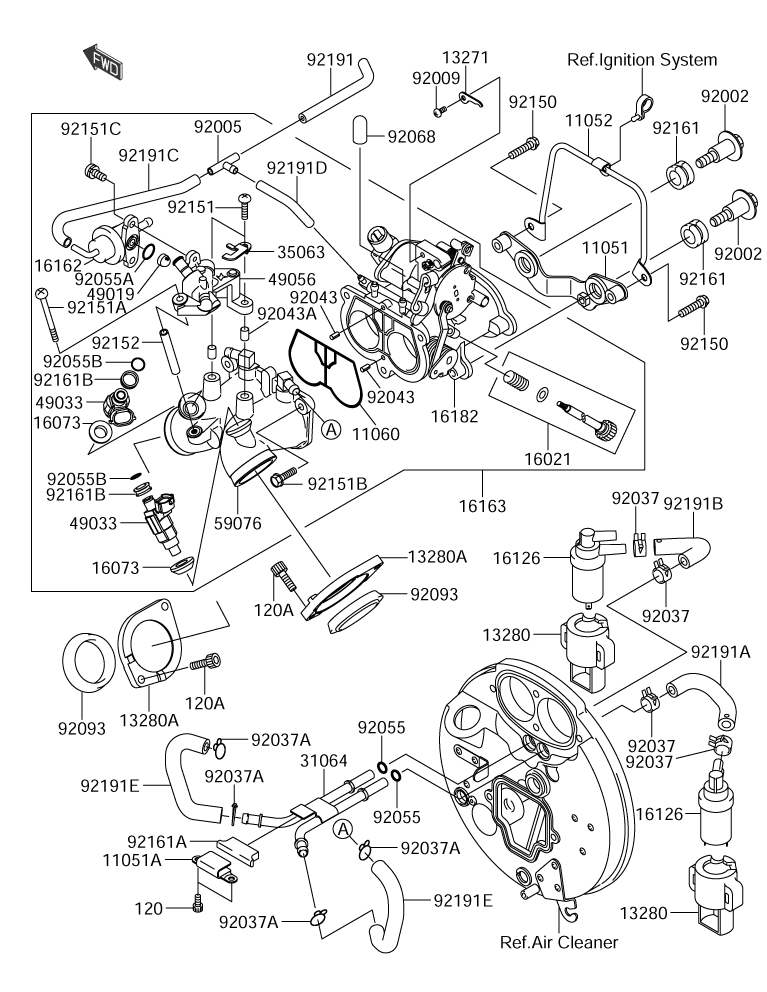

THROTTLE для Suzuki VZ1600 K5 - 2005 года выпуска
-
№АртикулНазвание
-
11051K1105-11333 BRACKETBRACKET
-
11051K1105-11345 BRACKETBRACKET
-
11052K1105-21067 BRACKET, HIGH TENSHION CORDBRACKET, HIGH TENSHION CORD
-
11060K1106-01928 GASKET, THROTTLE BODYGASKET, THROTTLE BODY
-
13271K1327-11314 PLATE, STARTER CABLEPLATE, STARTER CABLE
-
13280K1328-01139 HOLDERHOLDER
-
13280K1328-01154 HOLDERHOLDER
-
16021K1602-11227 SCREW THROTTLE STOPSCREW THROTTLE STOP
-
16073K1607-31119 INSULATORINSULATOR
-
16126K1612-61372 VALVEVALVE
-
16162K1616-21054 REGULATOR FUELREGULATOR FUEL
-
16163K1616-31113 THROTTLE ASSYTHROTTLE ASSY
-
16182K1618-21003 BODY THROTTLEBODY THROTTLE
-
31064K3106-41242 PIPE COMPPIPE COMP
-
35063K3506-31148 STAYSTAY
-
49019K4901-93707 FILTER FUEL, STRAINERFILTER FUEL, STRAINER
-
49033K4903-31057 NOZZLE INJECTIONNOZZLE INJECTION
-
49056K4905-61054 PIPE INJECTIONPIPE INJECTION
-
59076K5907-61113 MANIFOLD INTAKEMANIFOLD INTAKE
-
92002K9200-21595 BOLT, M6X14X13.5BOLT, M6X14X13.5
-
92005K9200-51366 FITTINGFITTING
-
92009K9200-91903 SCREW, 4X6SCREW, 4X6
-
92037K9203-71181 CLAMPCLAMP
-
92037K9203-71271 CLAMP, FUEL TUBECLAMP, FUEL TUBE
-
92043K9204-31600 PIN, THROTTLE BODYPIN, THROTTLE BODY
-
92043K9204-31601 PIN, DELIVERY PIPEPIN, DELIVERY PIPE
-
92055KK920-55029 RING O, 7.8X3.5RING O, 7.8X3.5
-
92055K9205-51620 RING O, FUEL REGULATORRING O, FUEL REGULATOR
-
92055K9205-51622 RING O, INJECTION NOZZLERING O, INJECTION NOZZLE
-
92068KK920-68006 PLUG, 12X25PLUG, 12X25
-
92093K9209-31484 SEALSEAL
-
92150K9215-01779 BOLT, 6X25BOLT, 6X25
-
92151K9215-11585 BOLT, 5X20BOLT, 5X20
-
92151K9215-11586 BOLT, 5X75BOLT, 5X75
-
92151K9215-11587 BOLT, THROTTLE BODYBOLT, THROTTLE BODY
-
92151K9215-11588 BOLT, 6X12BOLT, 6X12
-
92152K9215-21206 COLLAR, DELIVERY PIPECOLLAR, DELIVERY PIPE
-
92161K9216-11058 DAMPERDAMPER
-
92161K9216-11062 DAMPERDAMPER
-
92161K9216-11083 DAMPER, INJECTION NOZZLEDAMPER, INJECTION NOZZLE
-
92191K9219-11298 TUBE, THROTTLE BOOSTTUBE, THROTTLE BOOST
-
92191K9219-11367 TUBE, REAR VALVE (RED)TUBE, REAR VALVE (RED)
-
92191K9219-11368 TUBE, FRONT VALVE (BLUE)TUBE, FRONT VALVE (BLUE)
-
92191K9219-11402 TUBE, L=130TUBE, L=130
-
92191K9219-11403 TUBE, L=55TUBE, L=55
-
92191K9219-11608 TUBETUBE
-
120KK120-S0510 BOLT SOCKETBOLT SOCKET
-
120KK120-Z0620 BOLT SOCKETBOLT SOCKET
