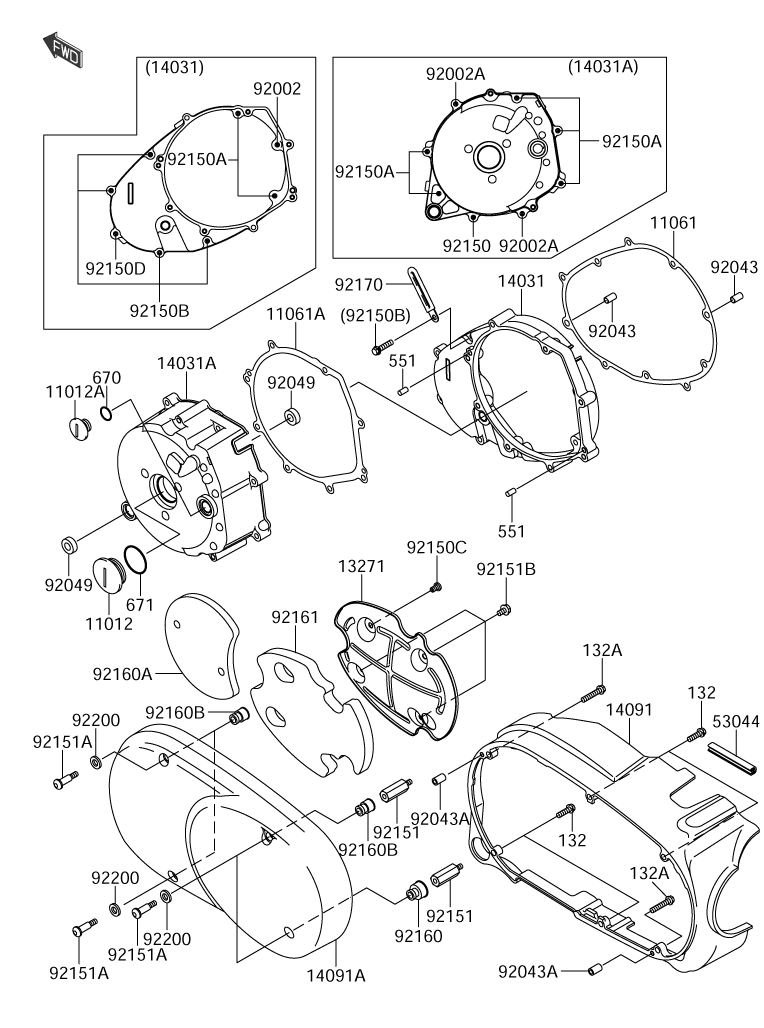

LEFT ENGINE COVER для Suzuki VZ1600 K5 - 2005 года выпуска
-
№АртикулНазвание
-
11012K1101-21362 CAPCAP
-
11012K1101-21363 CAP, TOP MARKCAP, TOP MARK
-
11061K1106-11079 GASKET, GENERATOR COVER (INNER)GASKET, GENERATOR COVER (INNER)
-
11061K1106-11080 GASKET, GENERATOR COVER (OUTER)GASKET, GENERATOR COVER (OUTER)
-
13271K1327-11496 PLATEPLATE
-
14031K1403-11384 COVER GENERATOR (INNER)COVER GENERATOR (INNER)
-
14031K1403-11392 COVER GENERATOR (OUTER)COVER GENERATOR (OUTER)
-
14091K1409-11206 COVER (LEFT/INNER)COVER (LEFT/INNER)
-
14091K1409-11297 COVER (LEFT/OUTER)COVER (LEFT/OUTER)
-
53044K5304-41312 TRIMTRIM
-
92002K9200-21566 BOLT, 6X40BOLT, 6X40
-
92002K9200-21567 BOLT, 6X60BOLT, 6X60
-
92043K9204-31263 PIN, 6.2X8X14PIN, 6.2X8X14
-
92043K9204-31690 PIN, 6X16PIN, 6X16
-
92049K9204-91398 SEAL OIL, VB13193SEAL OIL, VB13193
-
92150K9215-01010 BOLT, 6X20BOLT, 6X20
-
92150K9215-01021 BOLT, 6X30BOLT, 6X30
-
92150K9215-01779 BOLT, 6X25BOLT, 6X25
-
92150K9215-01864 BOLT, 6X10BOLT, 6X10
-
92150K9215-01967 BOLT, 6X35BOLT, 6X35
-
92151K9215-11062 BOLTBOLT
-
92151K9215-11796 BOLT, L=32BOLT, L=32
-
92151K9215-11884 BOLT, 6X10BOLT, 6X10
-
92160K9216-01718 DAMPERDAMPER
-
92160K9216-01719 DAMPERDAMPER
-
92160K9216-01730 DAMPERDAMPER
-
92161K9216-11179 DAMPERDAMPER
-
92170K9217-01514 CLAMPCLAMP
-
92200K9220-01296 WASHERWASHER
-
132KK132-V0620 BOLT FLANGED SMALLBOLT FLANGED SMALL
-
132KK132-V0630 BOLT FLANGED SMALLBOLT FLANGED SMALL
-
551KK551-A0612 PIN DOWEL, 6X12PIN DOWEL, 6X12
-
670KK670-B2018 O-RING, 18MMO-RING, 18MM
-
671KK671-B2540 O-RING, 40MMO-RING, 40MM
